Daytime Running Lamp (DRL) - Left (W49 or Z88 with T61)
 Courtesy of
|
Connector Part Information
- Harness Type: Left Fog Lamp/Daytime Running Lamp (W49)
- Harness Type: Left Headlamp (Z88)
- OEM Connector: 7900-1486-004
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F Lamp Socket Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Component Assembly
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|

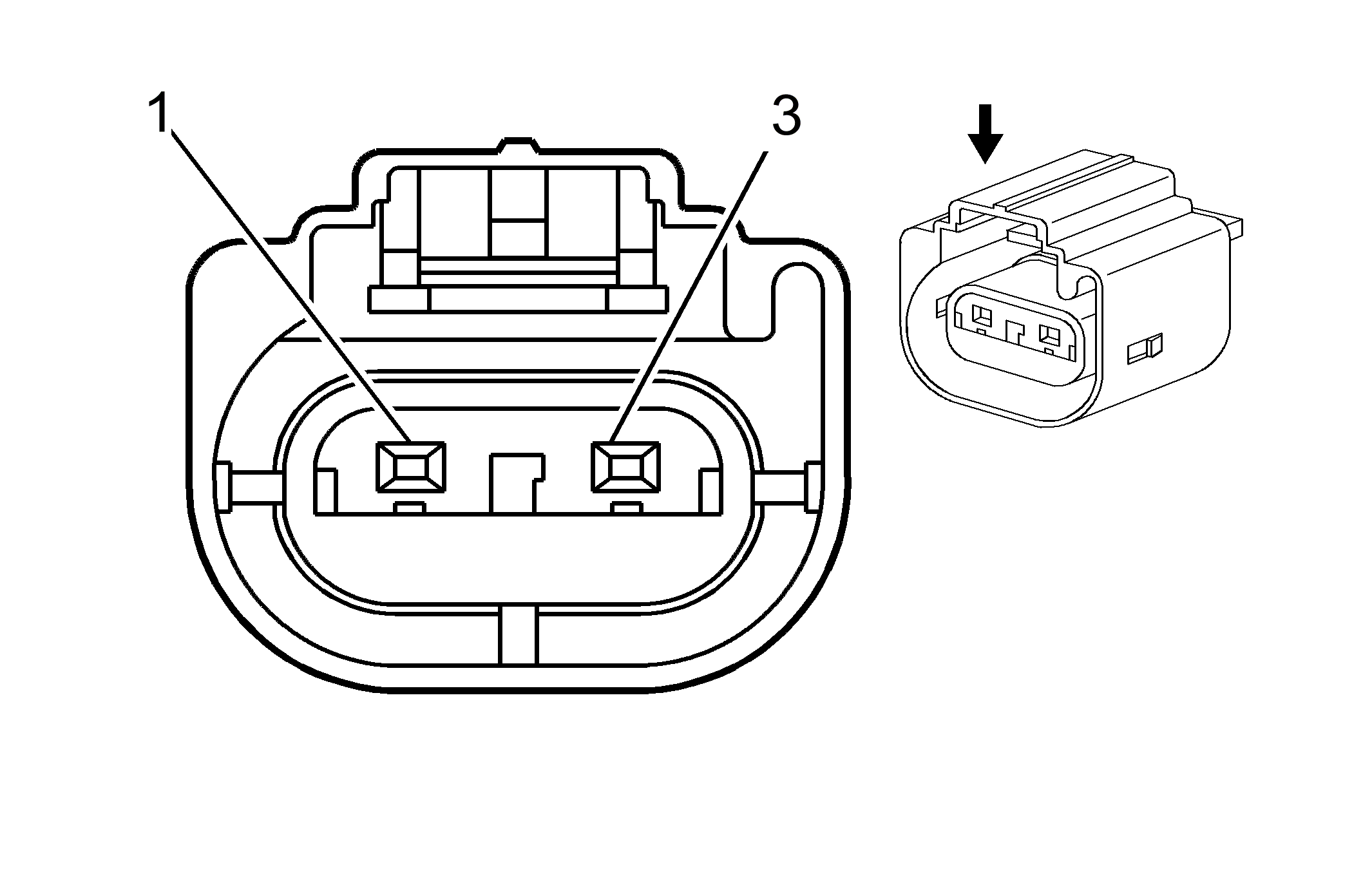

Daytime Running Lamp (DRL) - Left (W49 or Z88 with T61)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 GY |
- |
Left DRL/Turn Voltage (Z88) |
| 0.8 L-BU/WH |
- |
Left DRL/Turn Voltage (W49) |
| 2 |
- |
- |
Not Used |
| 3 |
0.8 BK |
- |
Ground |
