Instrument Panel Accessory Trim Plate Replacement (Traverse)

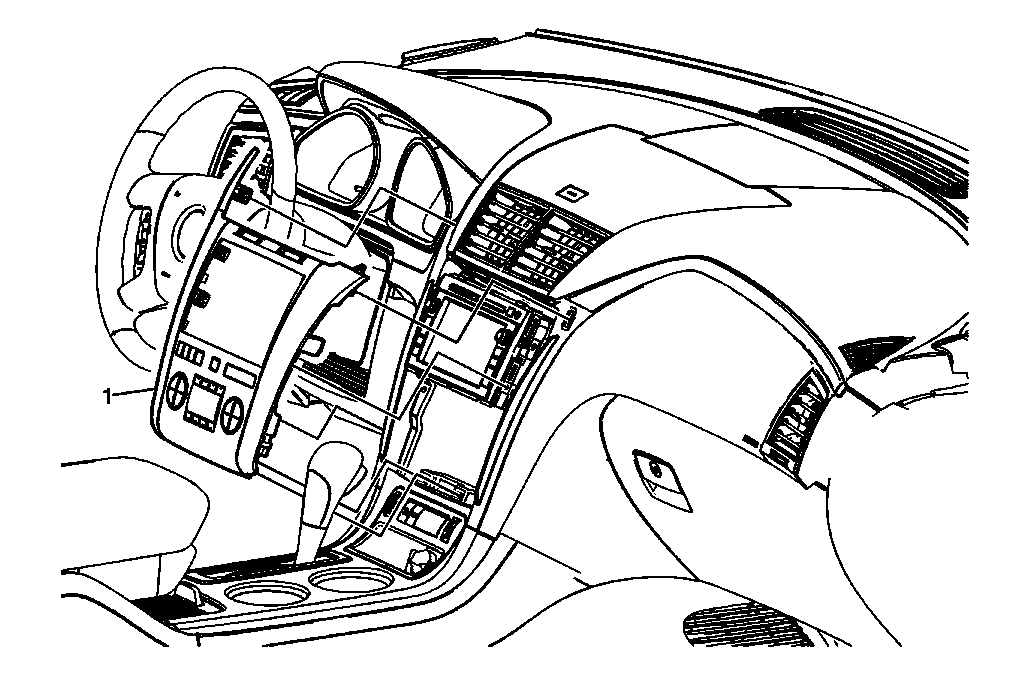

Fig 1: Identifying Instrument Panel Accessory Trim Plate (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Accessory Trim Plate Assembly Procedures Use a flat bladed plastic trim tool in order to release the clips securing the instrument panel accessory trim plate to the instrument panel assembly. Disconnect the electrical connections. When replacing the accessory trim plate, transfer all necessary components.

Callout

Component Name

Instrument Panel Accessory Trim Plate Assembly

Procedures

Use a flat bladed plastic trim tool in order to release the clips securing the instrument panel accessory trim plate to the instrument panel assembly.
Disconnect the electrical connections.
When replacing the accessory trim plate, transfer all necessary components.
