Front Floor Console Accessory Housing Replacement (Traverse)

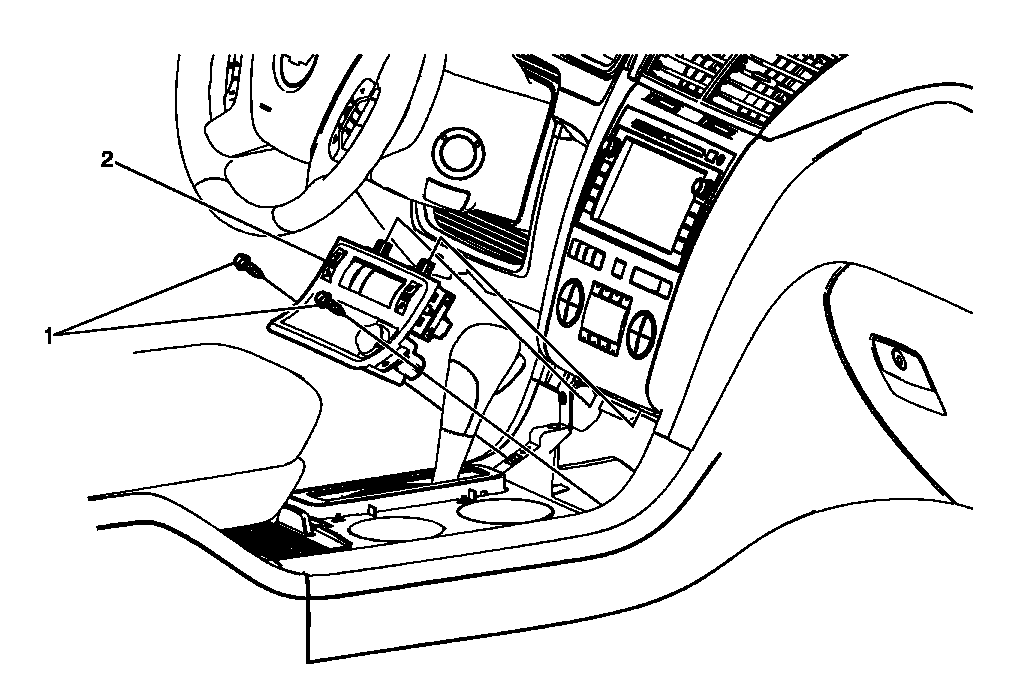

Fig 1: View Of Front Floor Console Accessory Housing (Traverse)
GM1937789Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Accessory Housing Replacement (Traverse)

Callout Component Name
Preliminary Procedure
Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement (Traverse) .
1 Front Floor Console Accessory Housing Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Front Floor Console Accessory Housing Assembly

Procedure

  1. Move the shiftier into low gear in order to create enough clearance to remove the housing assembly.
  2. Disconnect the electrical connectors.
  3. When replacing the front floor console accessory housing assembly, transfer all necessary components.
