Home >> GMC >> 2012 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Actuators and Solenoids - Transmission and Drivetrain >> Actuators and Solenoids - A/T >> Shift Interlock Solenoid >> Service and Repair >> Automatic Transmission Shift Lock Control Actuator Replacement (Push-To-Release Style Solenoid)

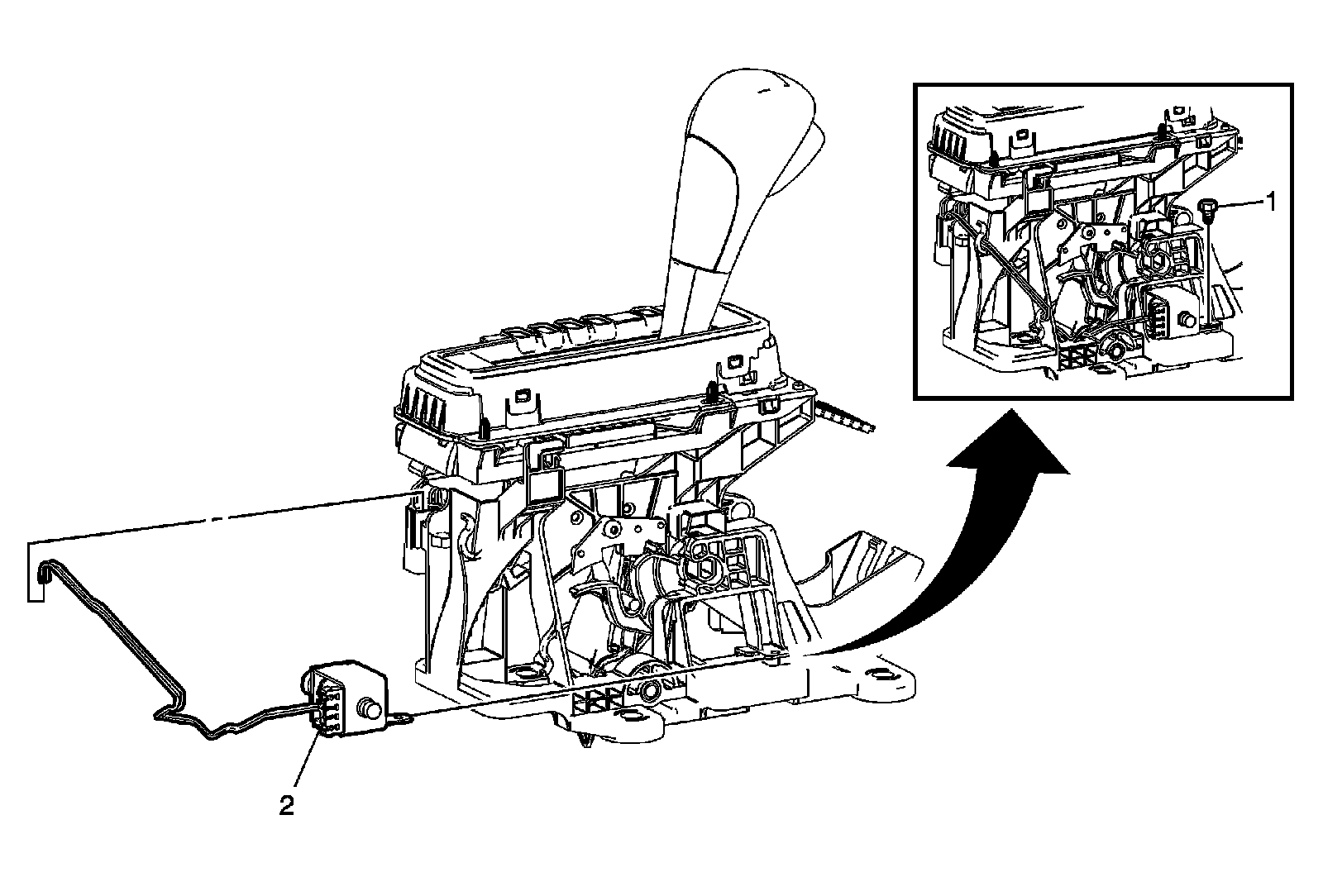

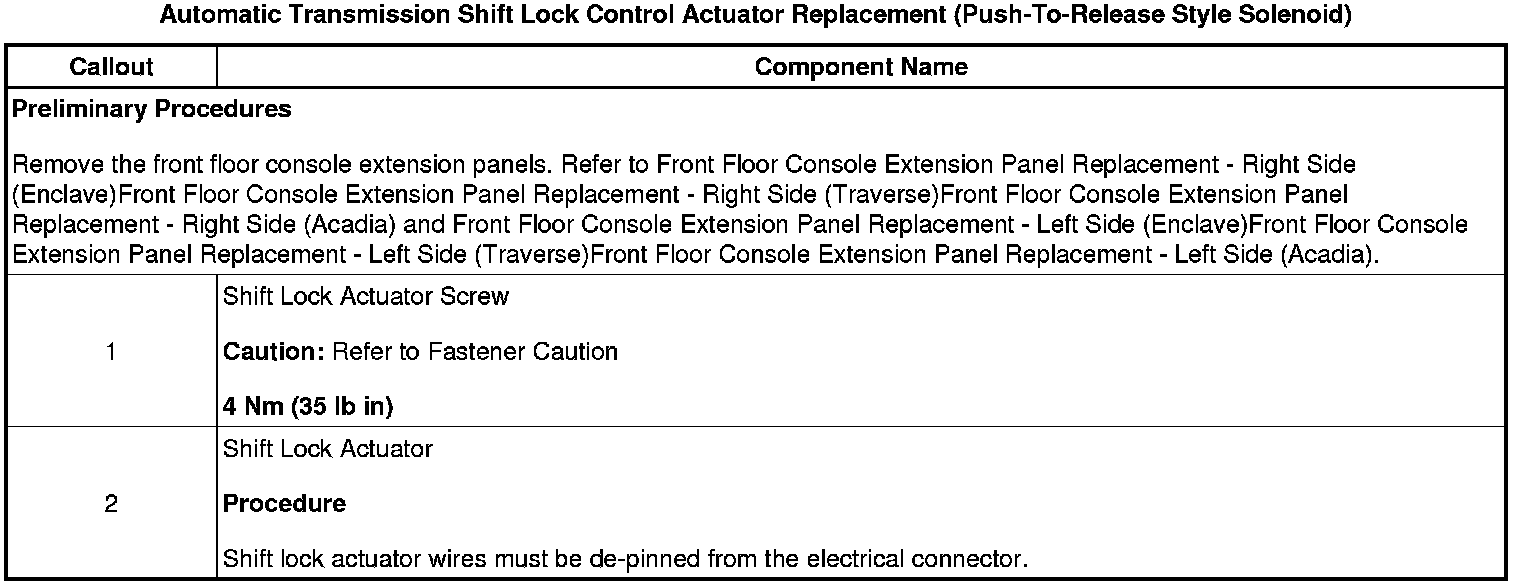

Automatic Transmission Shift Lock Control Actuator Replacement (Push-To-Release Style Solenoid)

Automatic Transmission Shift Lock Control Actuator Replacement (Push-To-Release Style Solenoid)
