Home >> GMC >> 2012 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> Shift Solenoid, A/T

Shift Solenoid, A/T

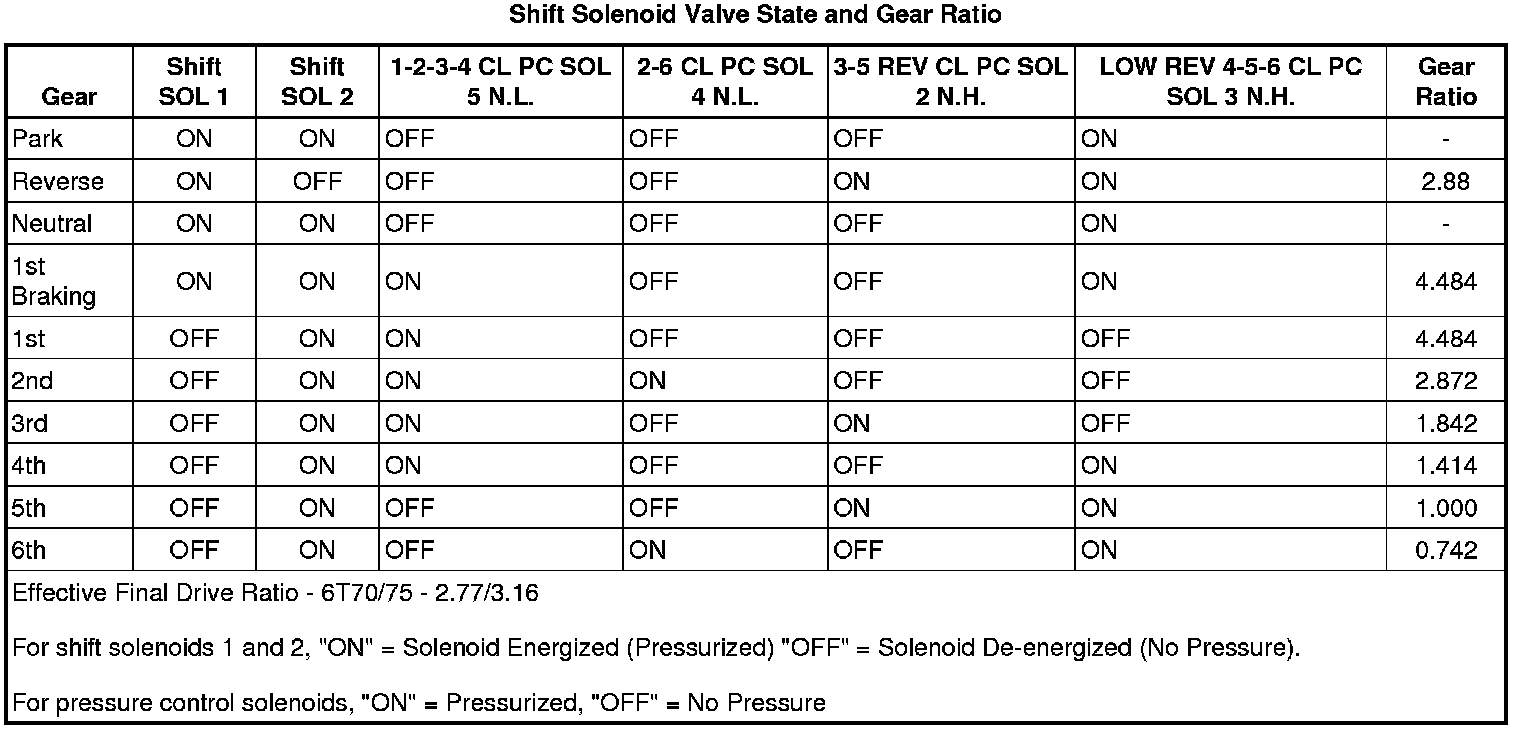

Shift Solenoid Valve State and Gear Ratio
