Ambient Air Temperature Sensor (CJ2)

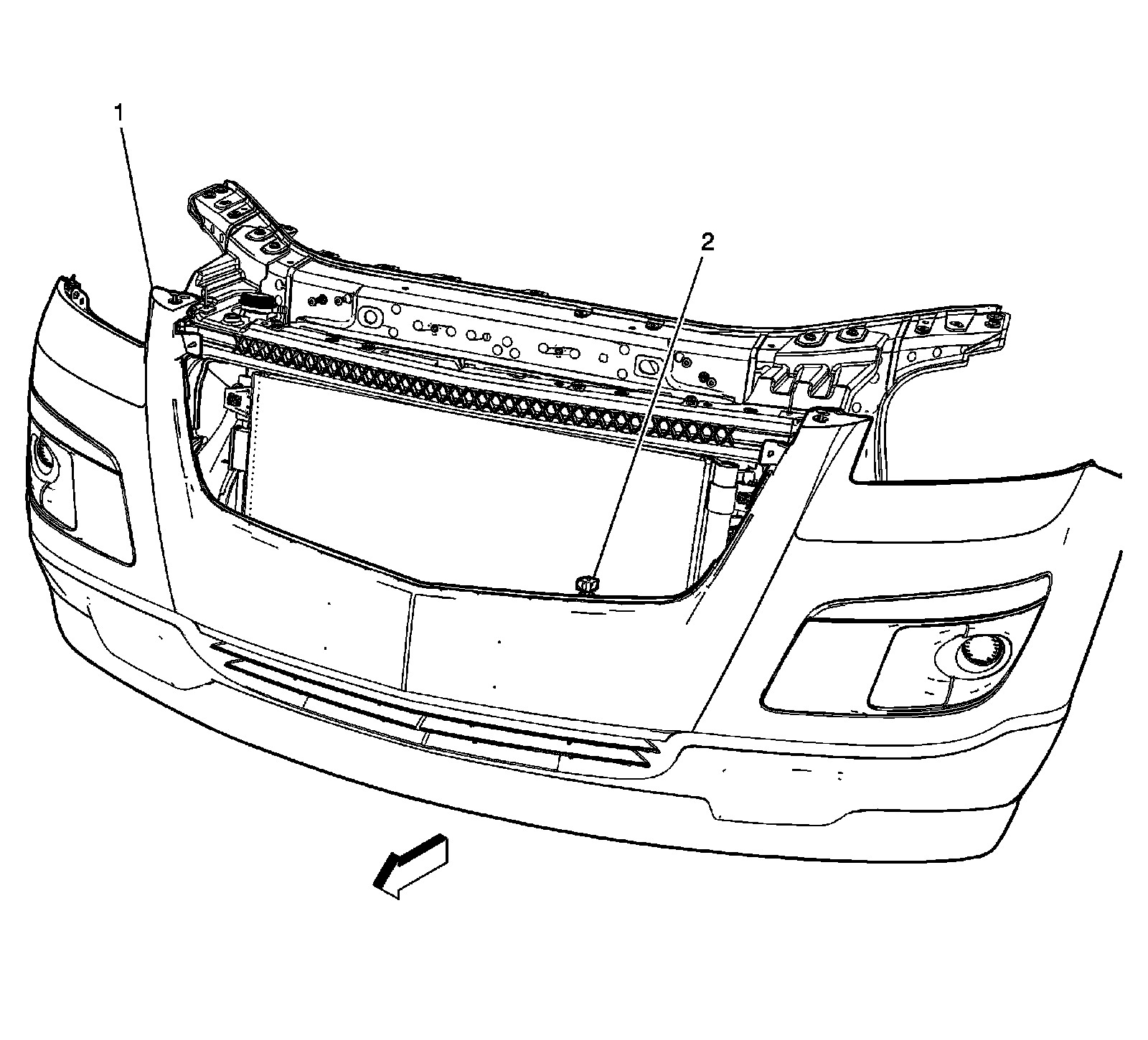

Front of Vehicle/Engine Compartment Component Views

Front of the Condenser





1 - Front Fascia

2 - Ambient Air Temperature Sensor (CJ2)
