Front Fascia Harness Routing (X88)




Harness Routing Views

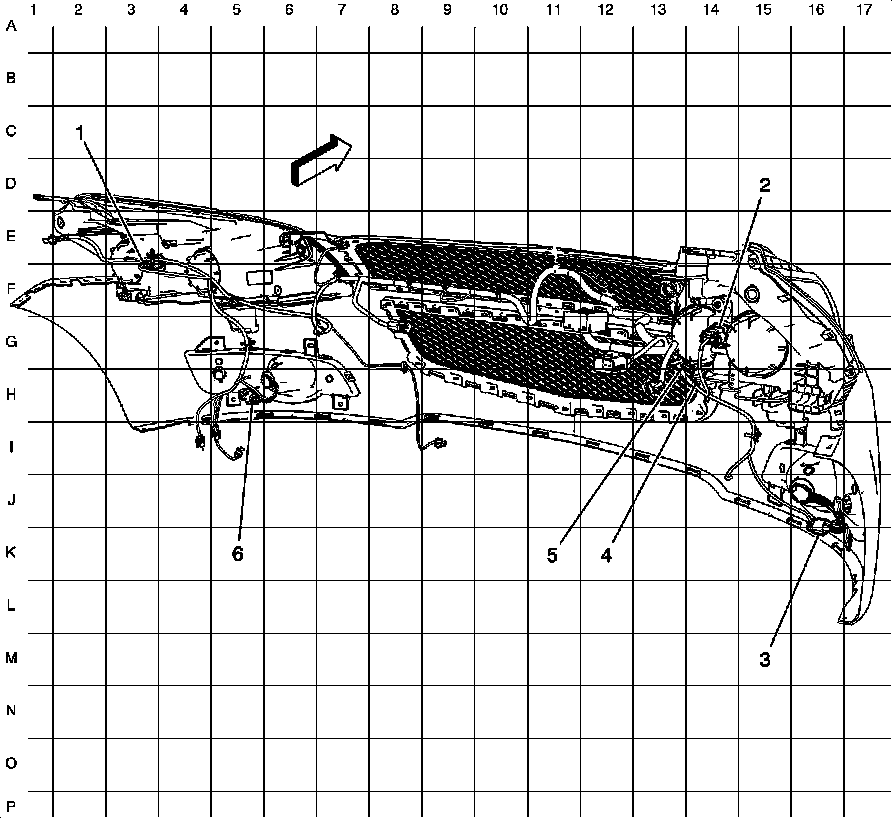

Front Fascia Harness Routing (X88)





1 - X151

2 - X150

3 - X122

4 - J120

5 - J122

6 - X123
