Fog Lamp Extension Harness Routing




Harness Routing Views

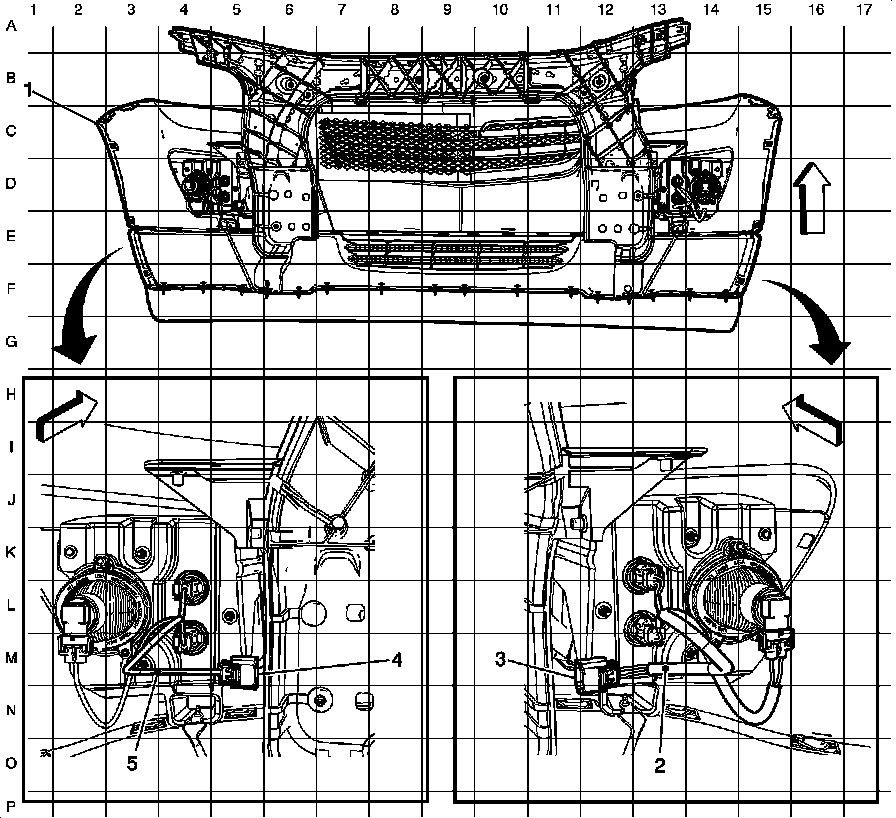

Fog Lamp Extension Harness Routing





1 - Front Fascia

2 - J104 (without X88)

3 - X108 (W49)

4 - X107 (W49)

5 - J113 (without X88)
