Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Right Side

Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Right Side

Removal Procedure

1. Remove the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.

2. Remove the spark plugs in order to ease crankshaft/engine rotation. Refer to Spark Plug Replacement Service and Repair.

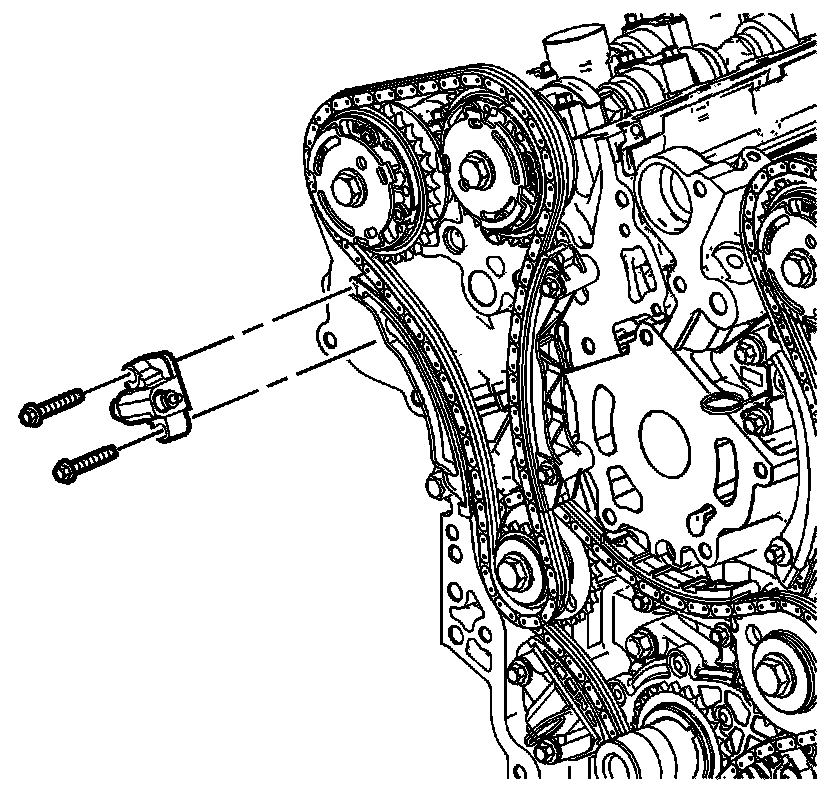

3. Remove the right bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Removal - Right Side 16. Secondary Timing Chain Tensioner Removal - Right Side.

Installation Procedure





1. Install the right bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Installation - Right Side 125. Secondary Timing Chain Tensioner Installation - Right Side.

2. Install the spark plugs. Refer to Spark Plug Replacement Service and Repair.

3. Install the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.
