Steering Wheel Harness Routing




Harness Routing Views

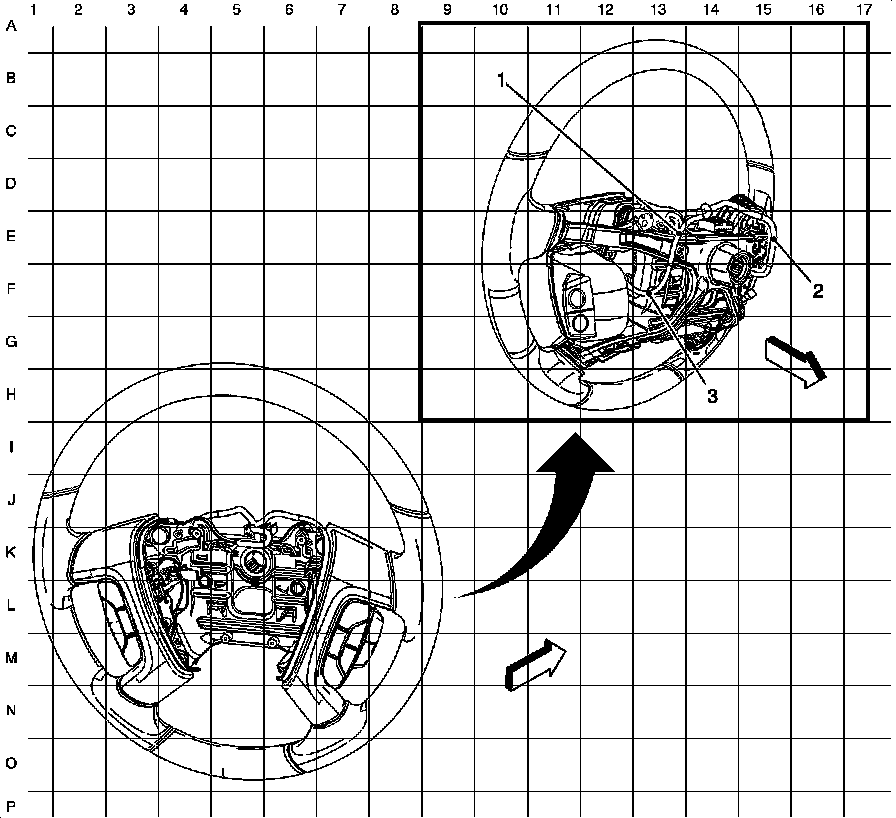

Steering Wheel Harness Routing





1 - J297

2 - J295 (UK3)

3 - J291 (UK3)
