G102 (WDA)




Ground Distribution Schematics

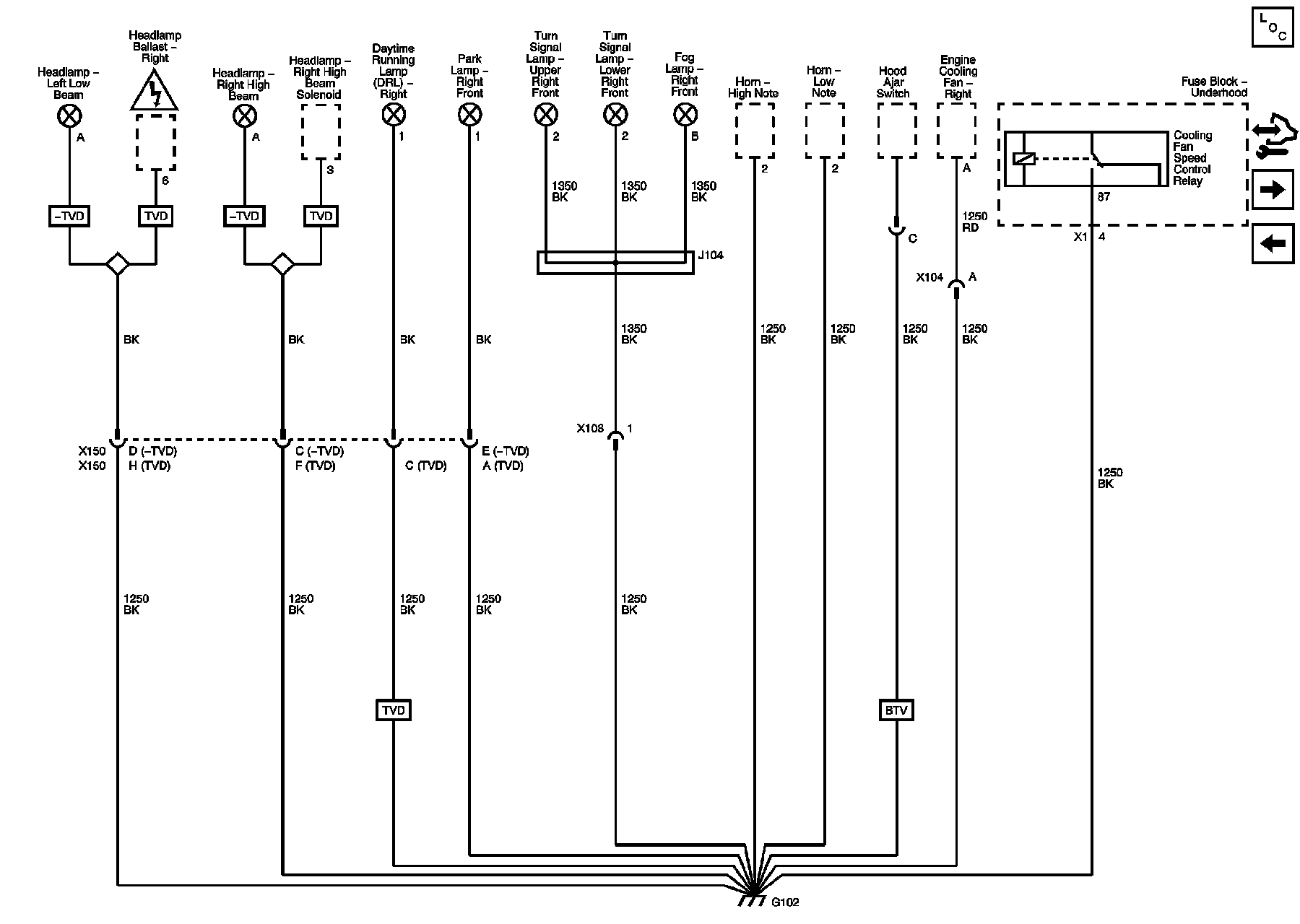

G102 (WDA)





Master Electrical Component List
Control Module References
G102 (X88)
G102 (W49)
