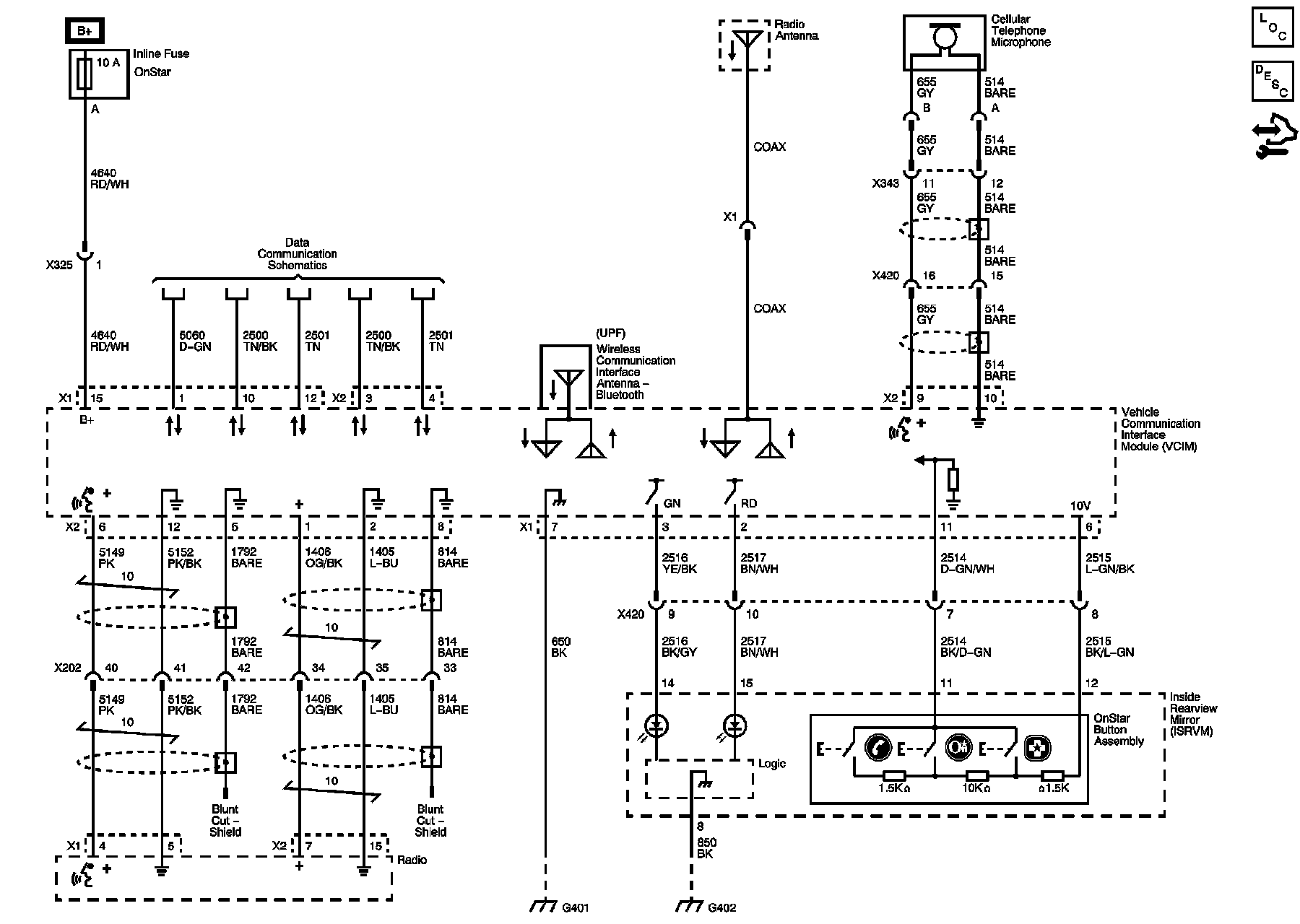

OnStar Schematics

OnStar Schematics

UE1





Master Electrical Component List
OnStar Description and Operation
Control Module References
B+ Bus 1 of 2
Data Communication Schematics
Master Electrical Schematic Icons
G401 (1 of 2)
G402 (1 of 2)
