Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
Component Connector End Views

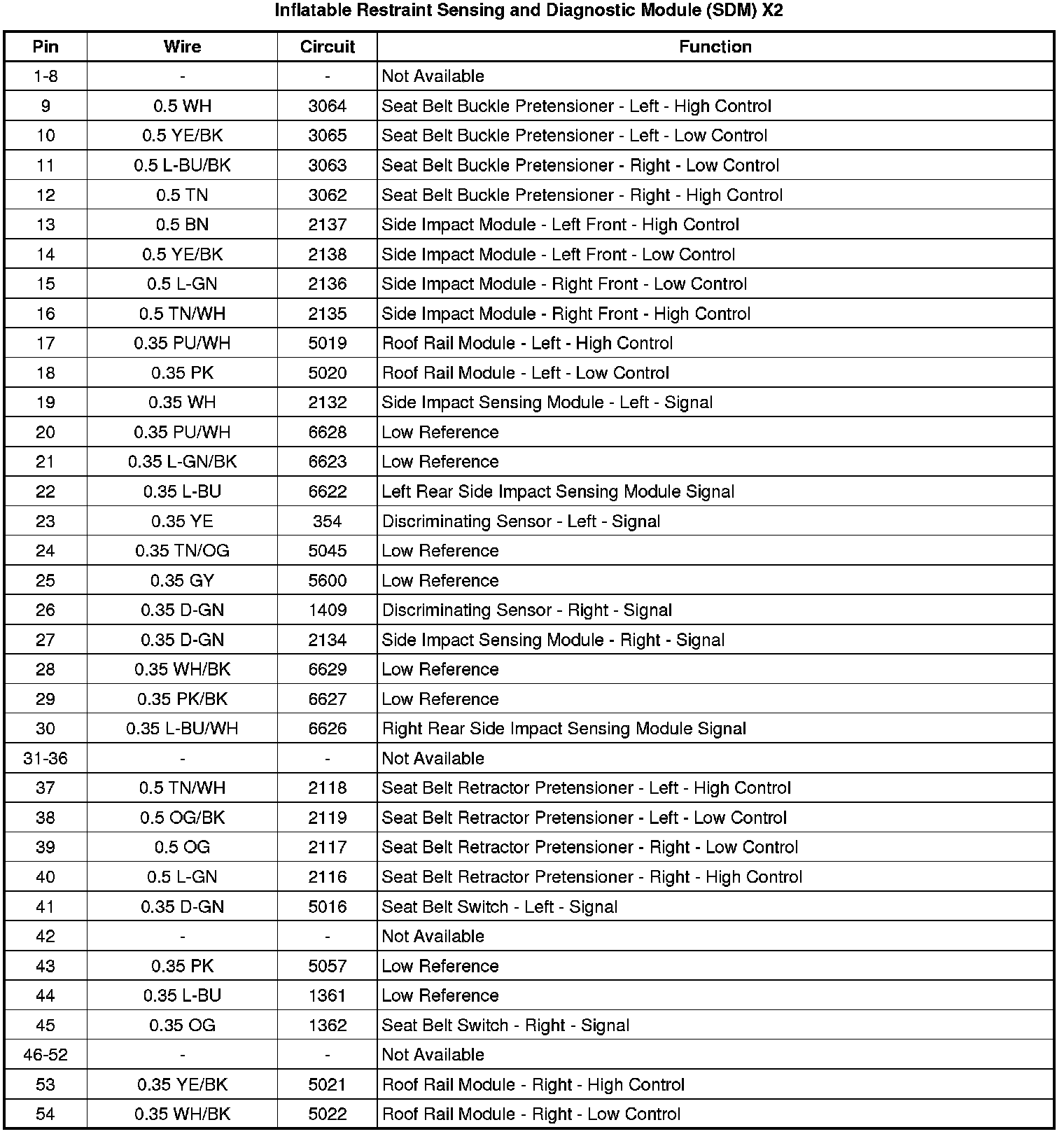

Inflatable Restraint Sensing and Diagnostic Module (SDM) X2
