X666

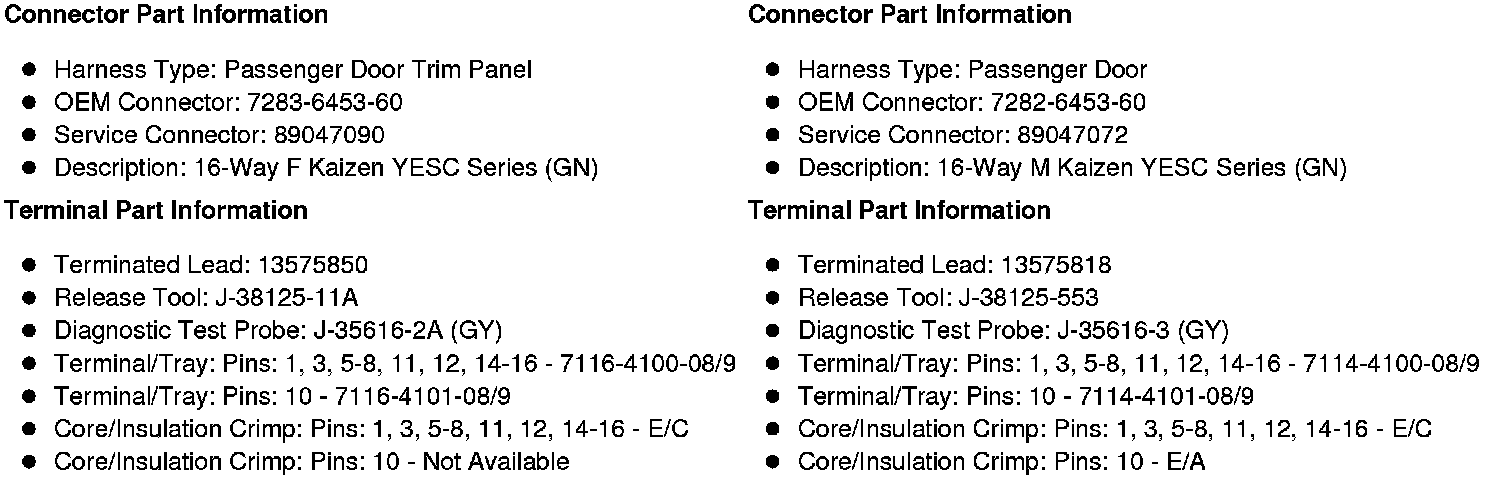

Inline Harness Connector End Views

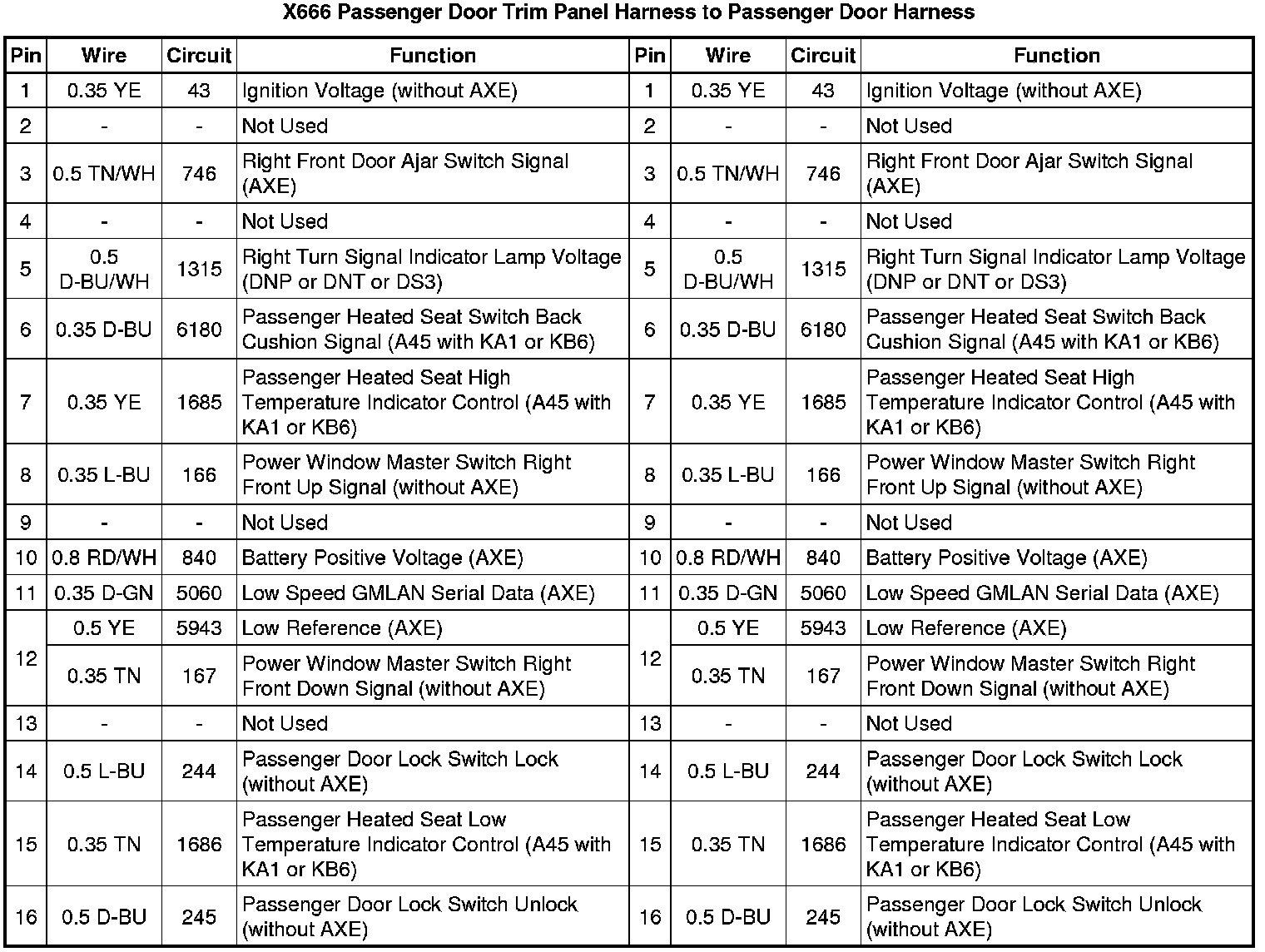

X666 Passenger Door Trim Panel Harness to Passenger Door Harness
