X664

Inline Harness Connector End Views

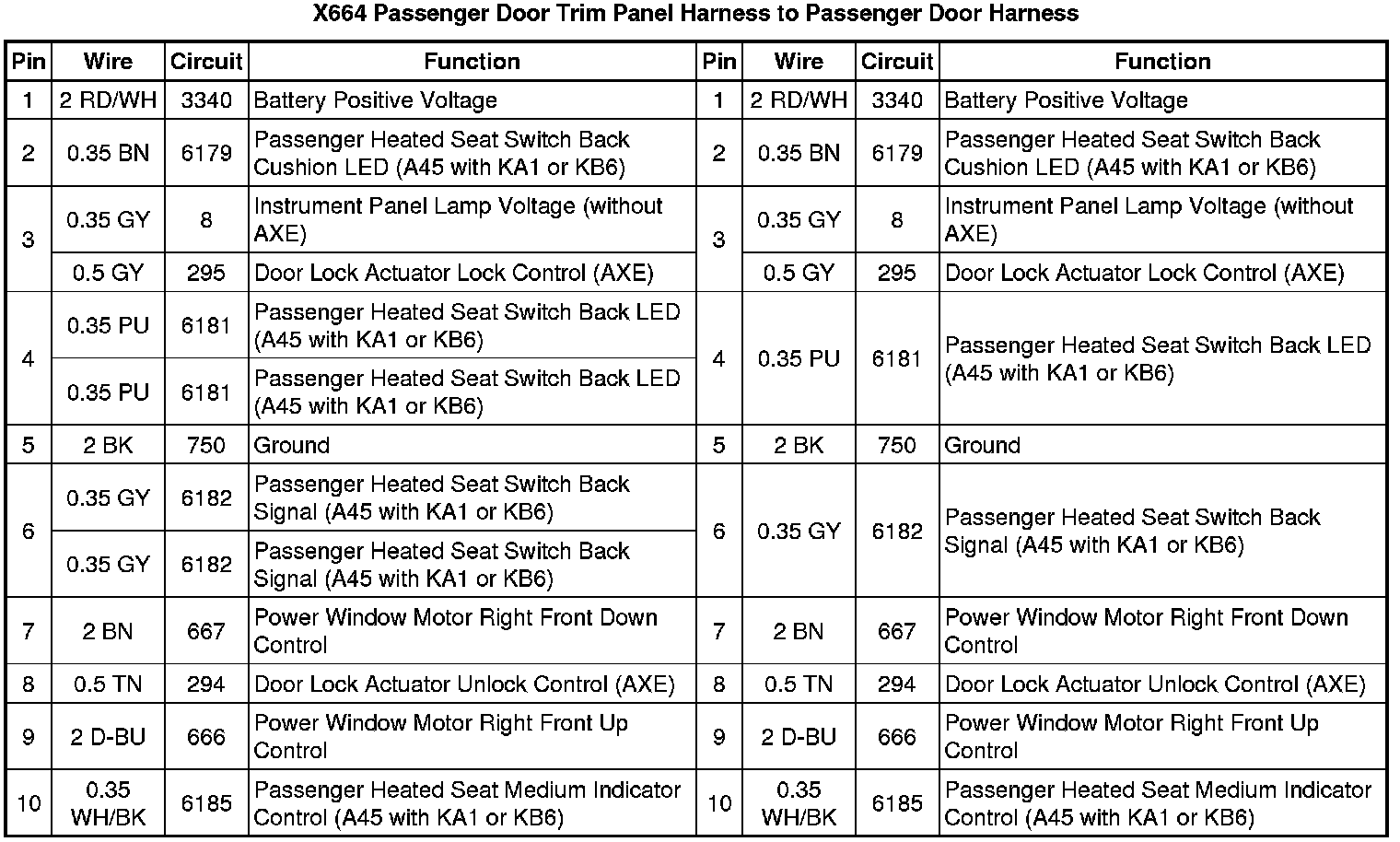

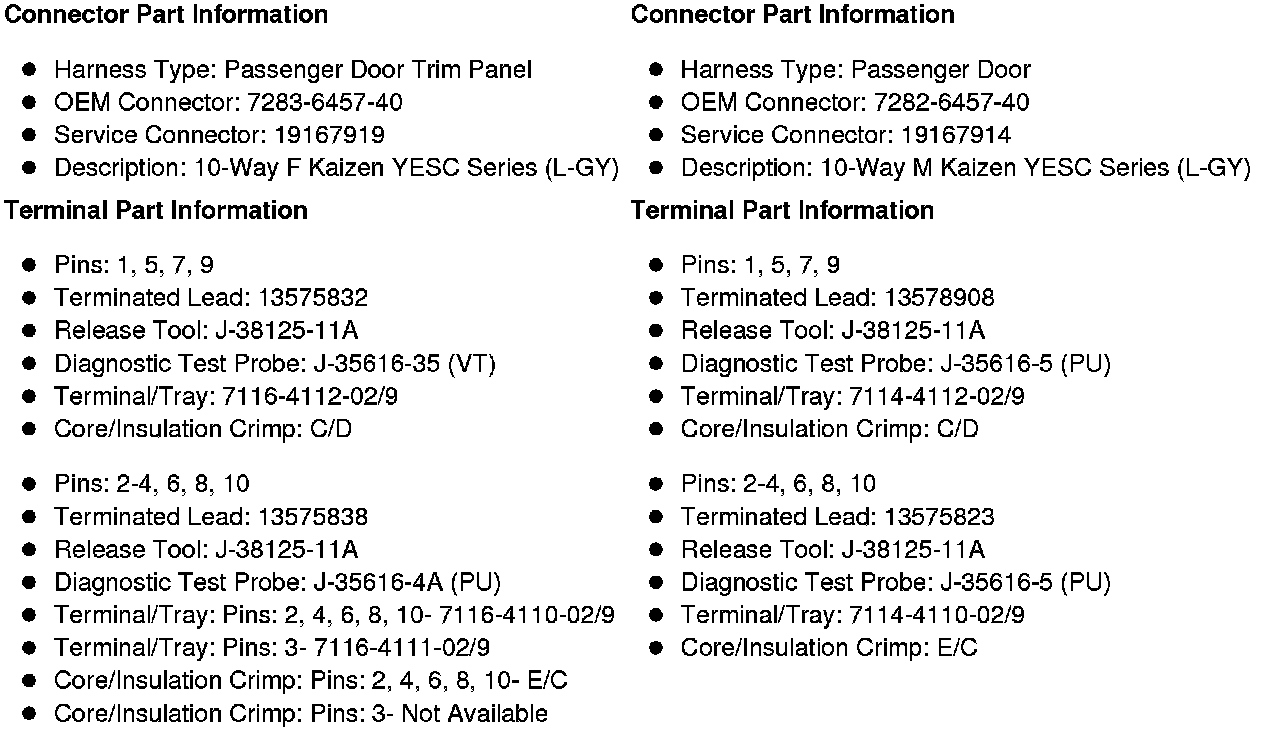

X664 Passenger Door Trim Panel Harness to Passenger Door Harness
