X391
X391
Inline Harness Connector End Views

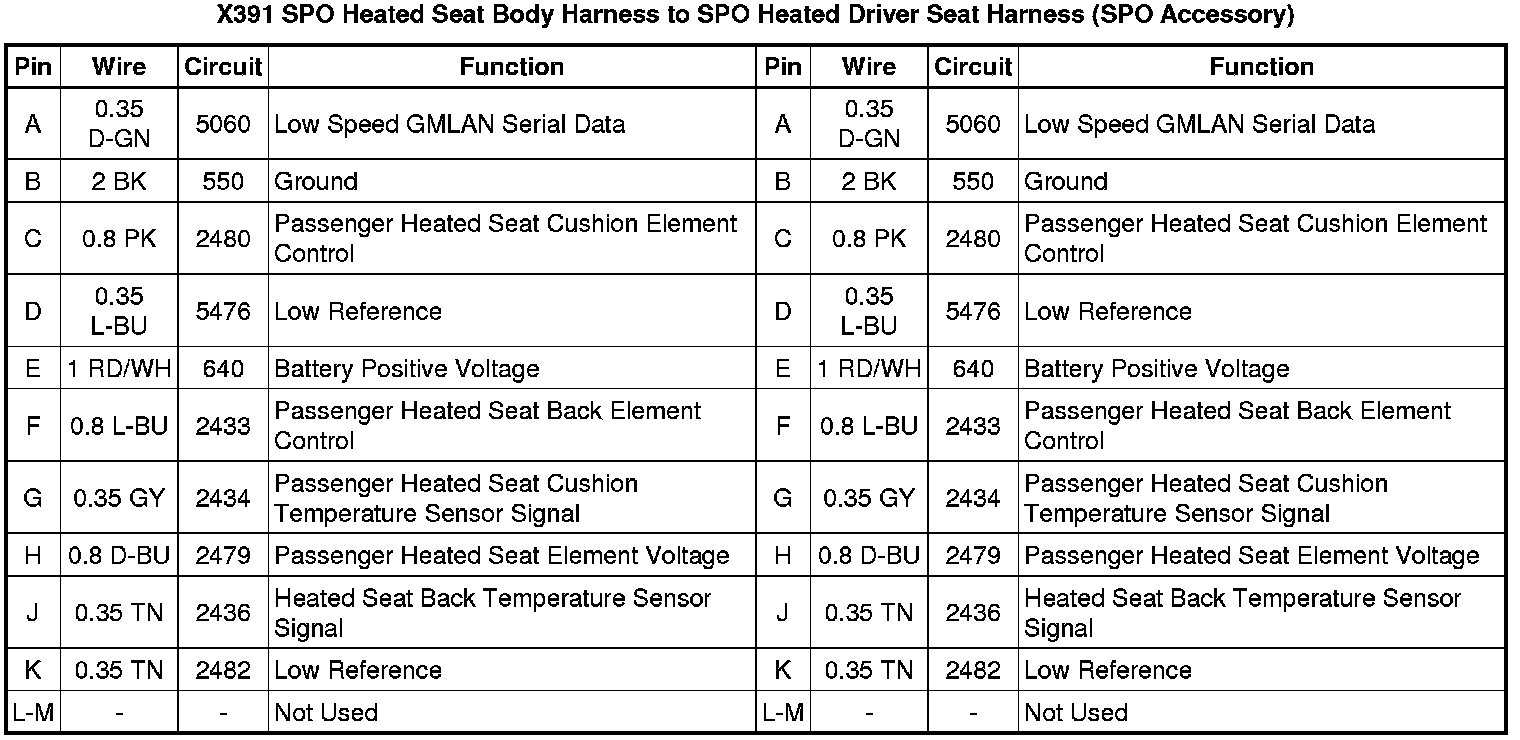

X391 SPO Heated Seat Body Harness to SPO Heated Driver Seat Harness (SPO Accessory)
