X150

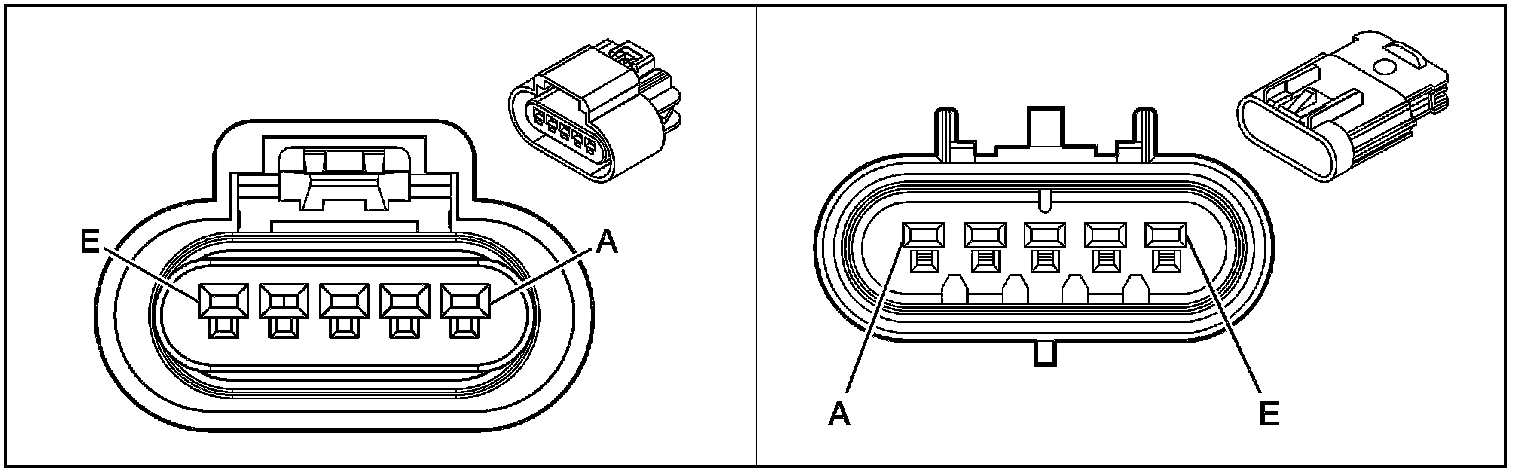

Inline Harness Connector End Views

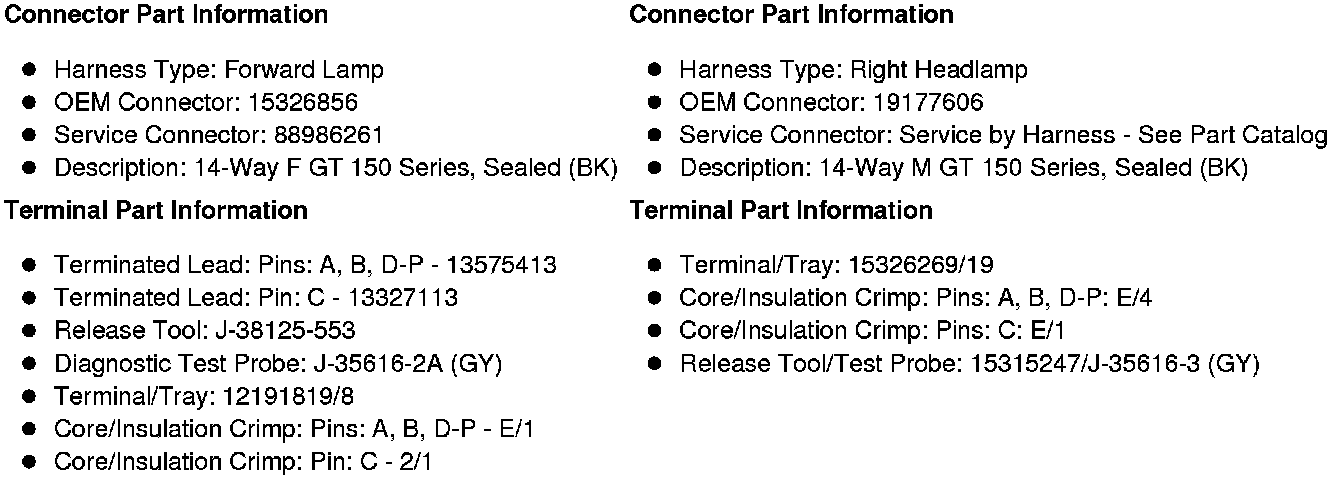

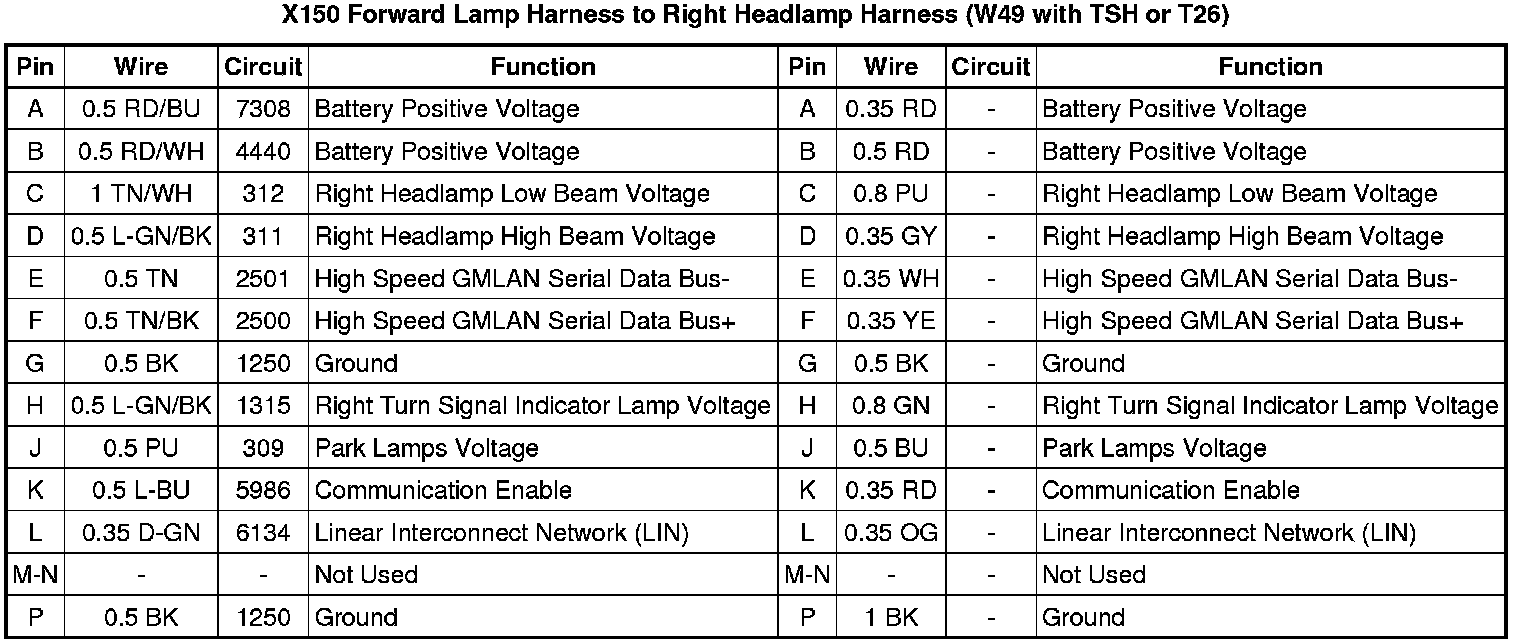

X150 Forward Lamp Harness to Right Headlamp Harness (W49 with TSH or T26)













X150 Forward Lamp Harness to Right Headlamp Harness (W49 without TSH or T26)

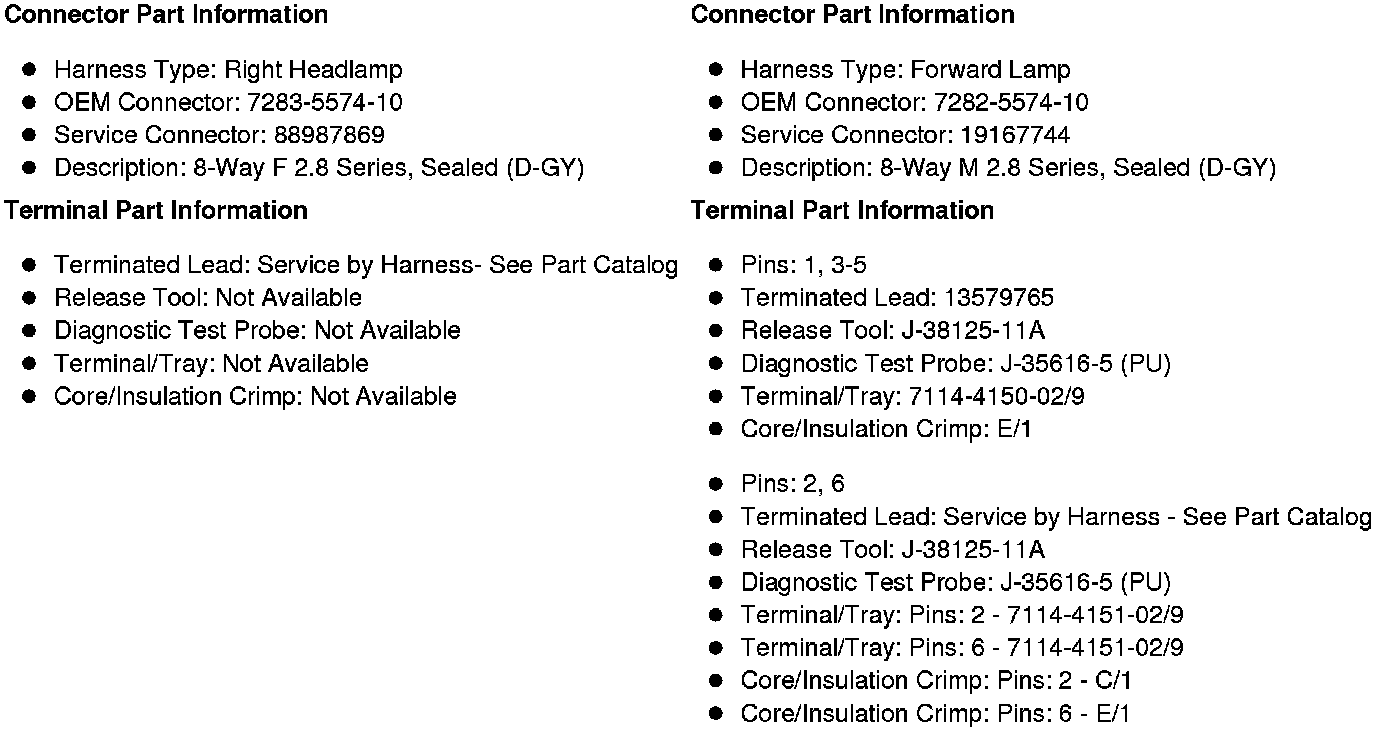

X150 Forward Lamp Harness to Right Headlamp Harness (X88)

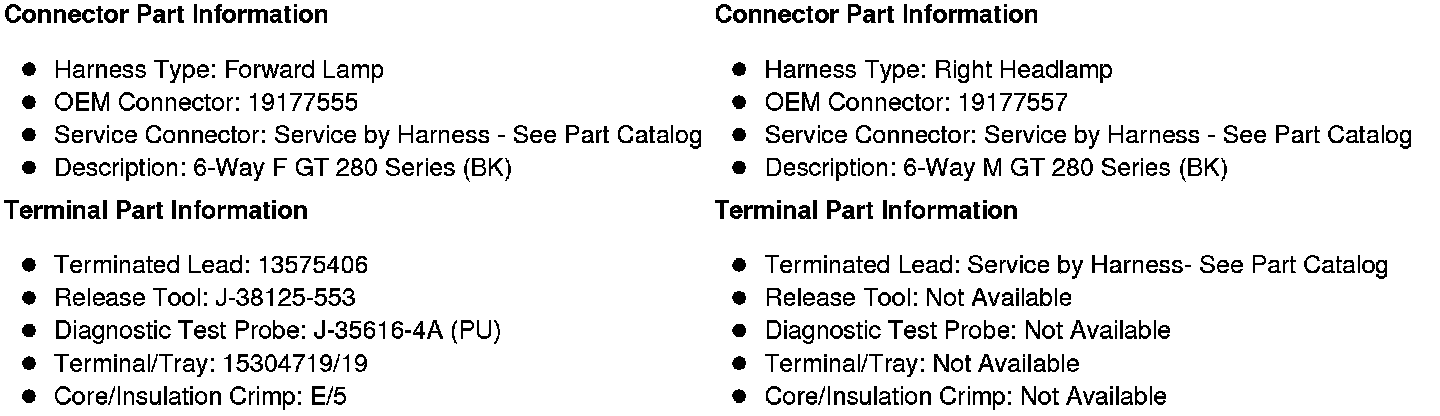

X150 Forward Lamp Harness to Right Headlamp Harness (Z88 without TVD)













X150 Right Headlamp Harness to Forward Lamp Harness (Z88 with TVD)
