X108
X108

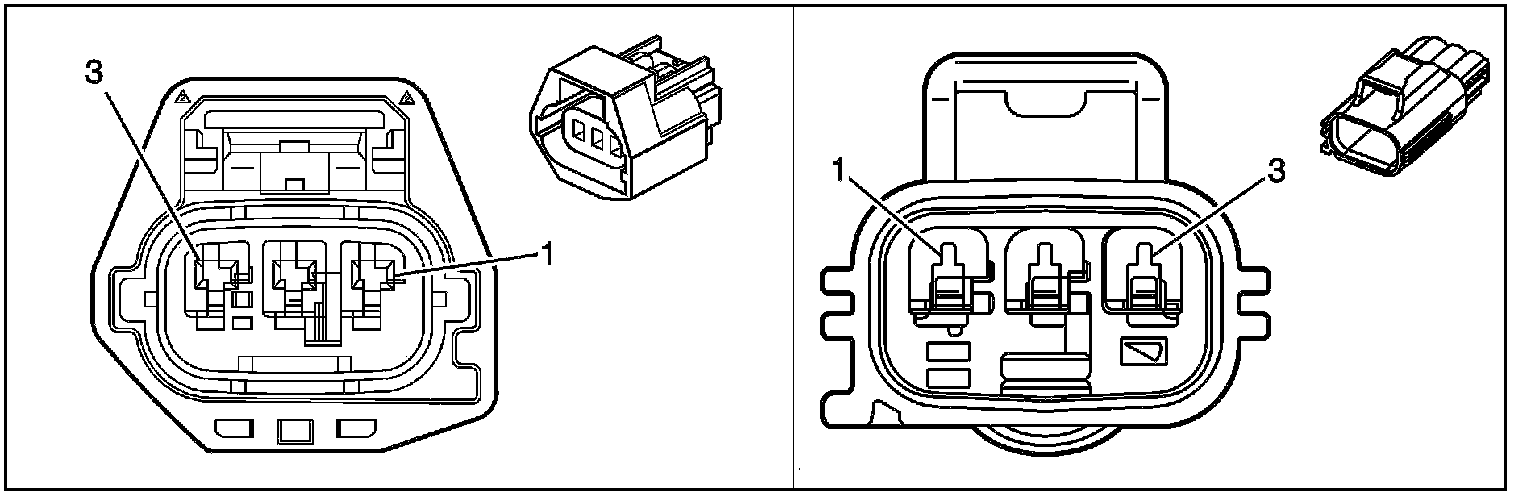

Inline Harness Connector End Views

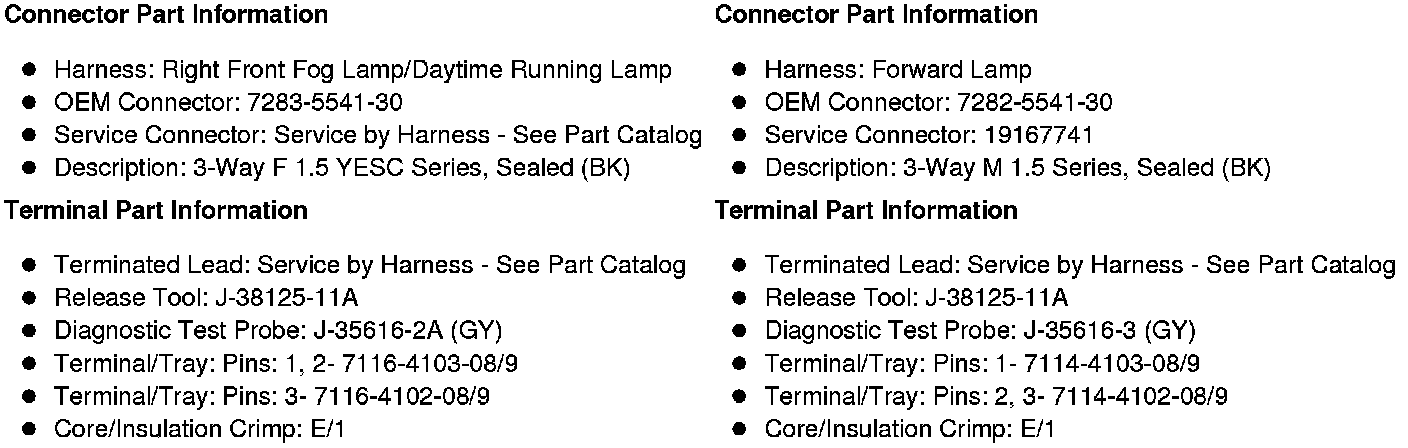

X108 Right Front Fog Lamp/Daytime Running Lamp Harness to Forward Lamp Harness (W49)
