X107
X107

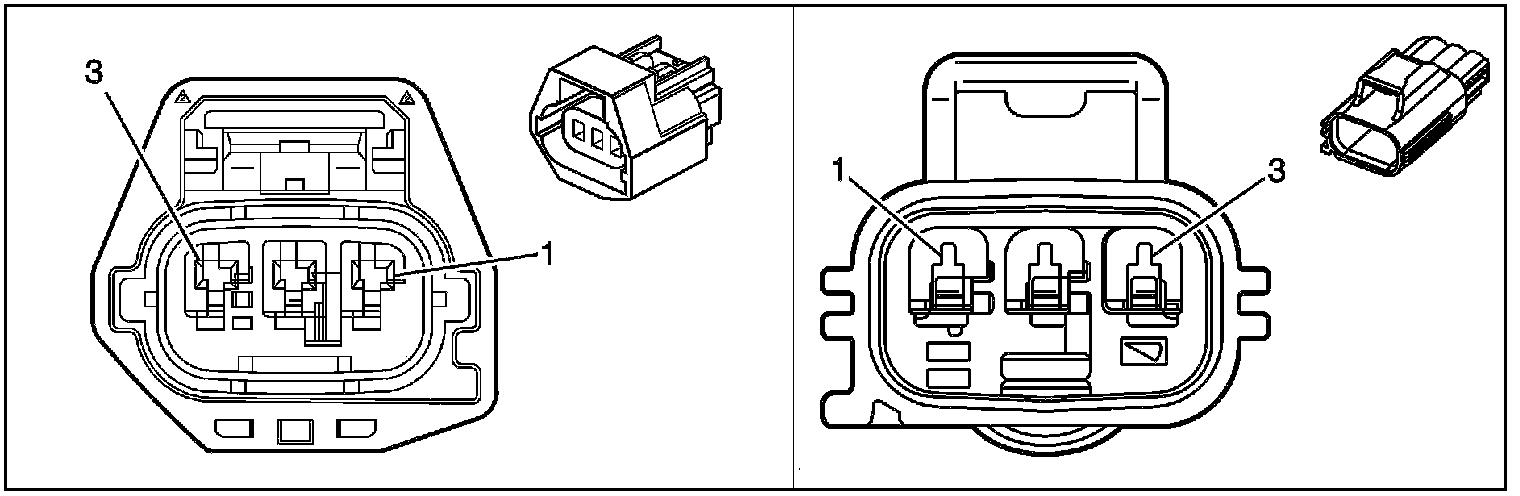

Inline Harness Connector End Views

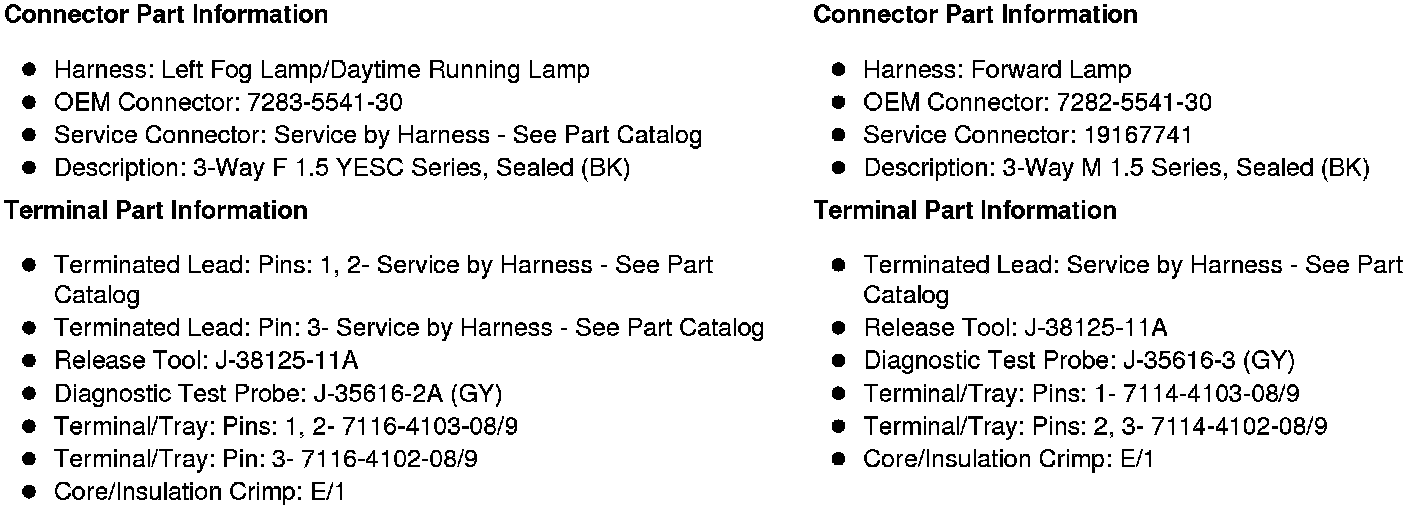

X107 Left Front Fog Lamp/Daytime Running Lamp Harness to Forward Lamp Harness (W49)
