Electrical Diagrams

Object Detection Schematics

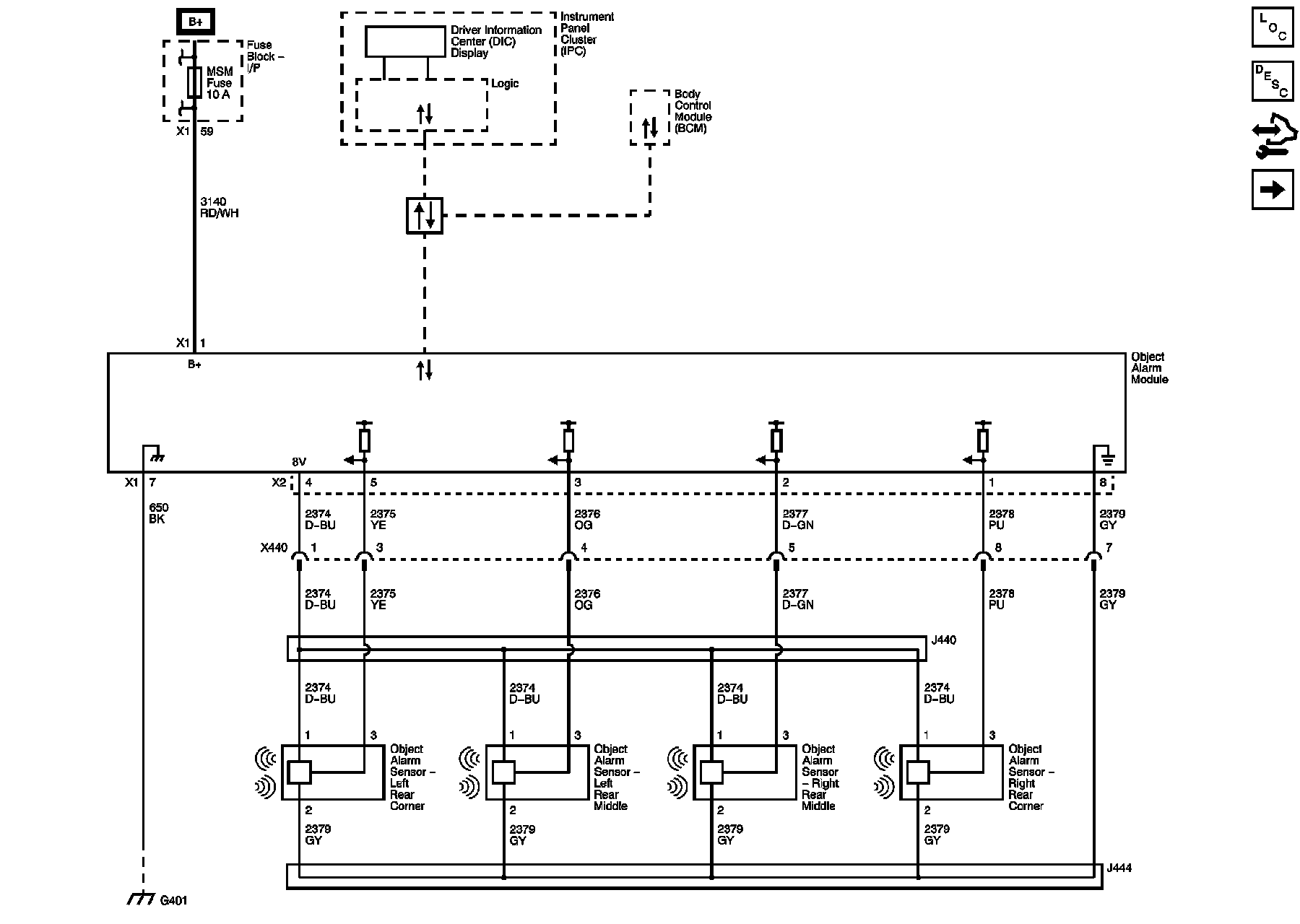

Rear Park Assist (UD7)





Master Electrical Component List
Object Detection Description and Operation
Control Module References

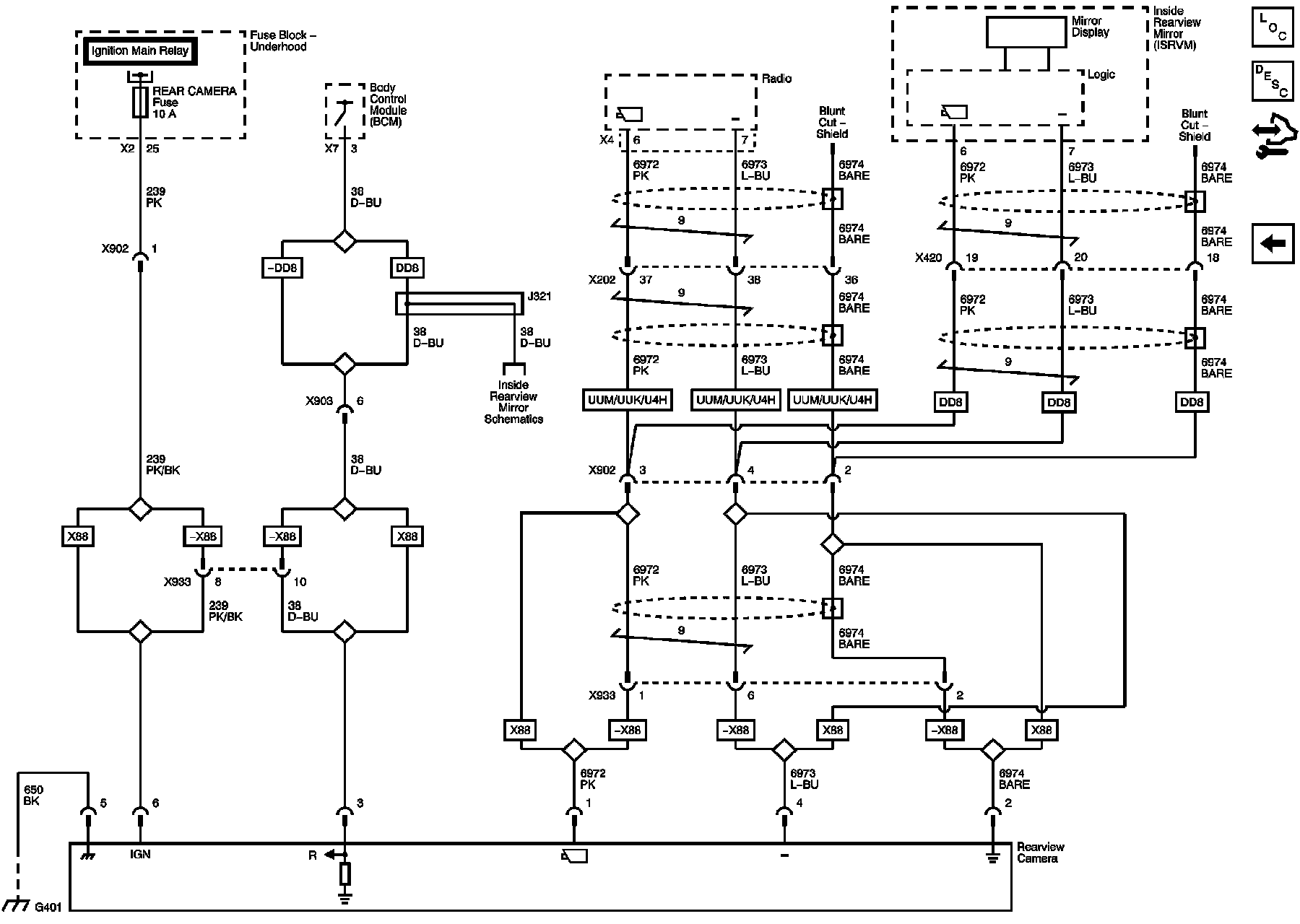

Rear Vision Camera (UVC)
AIRBAG, AMP, BATT 1, BCM, CNSTR/VENT, CTSY, INADV/PWR/LED, and MSM Fuses
Data Communication Schematics
G401 (1 of 2)

Rear Vision Camera (UVC)





Master Electrical Component List
Object Detection Description and Operation
Control Module References
Rear Park Assist (UD7)
Ignition Switch and AIRBAG, PCM IGN, REAR CAMERA, and TRANS Fuses
DD8
Master Electrical Schematic Icons
Master Electrical Schematic Icons
Master Electrical Schematic Icons
Master Electrical Schematic Icons
Master Electrical Schematic Icons
G401 (1 of 2)
