Window Motor - Driver

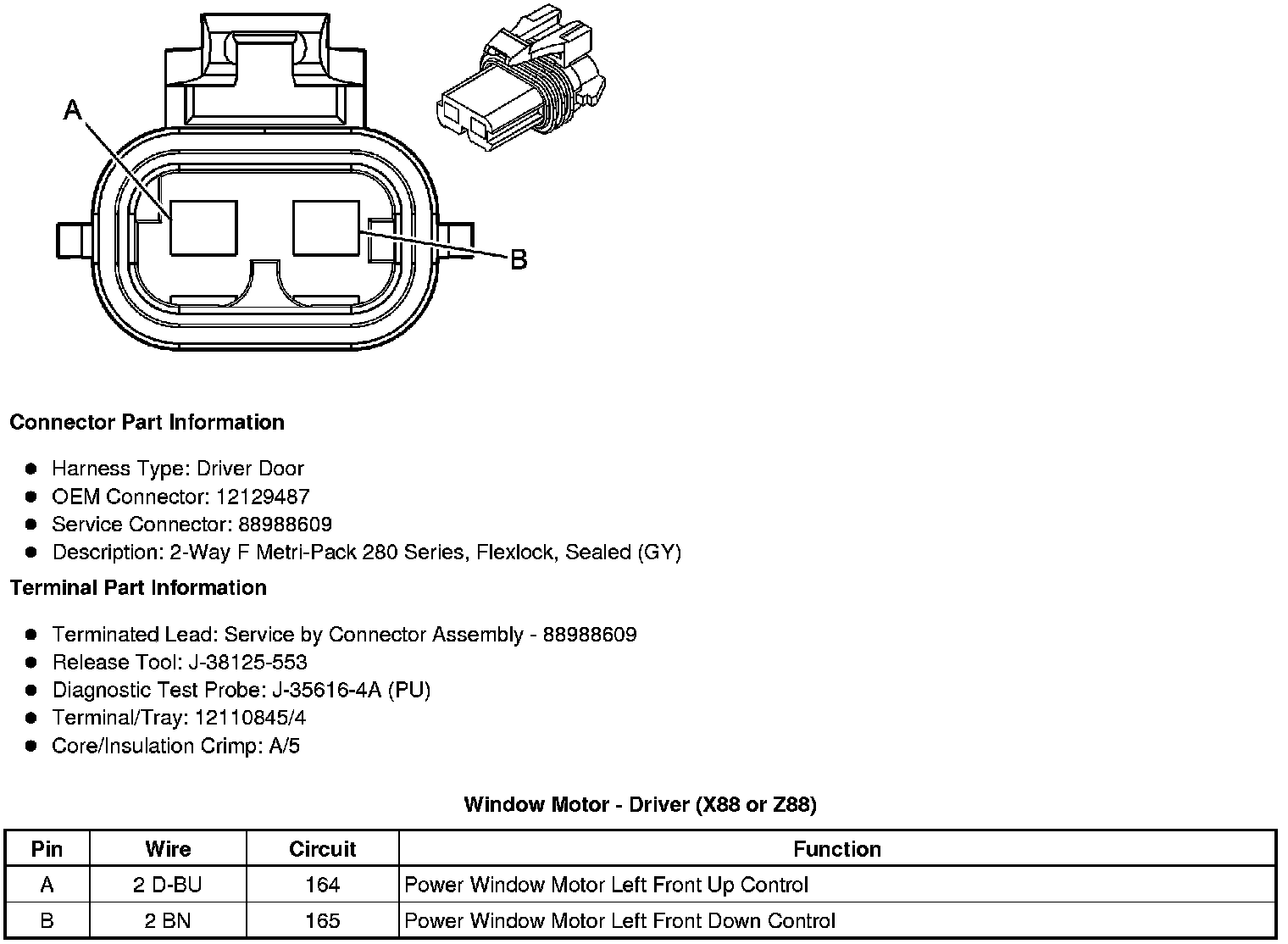

Window Motor - Driver
Component Connector End Views
Window Motor - Driver (X88 or Z88)
