MP 3010-NP0 - Transfer Case




Transfer Case Control Schematics

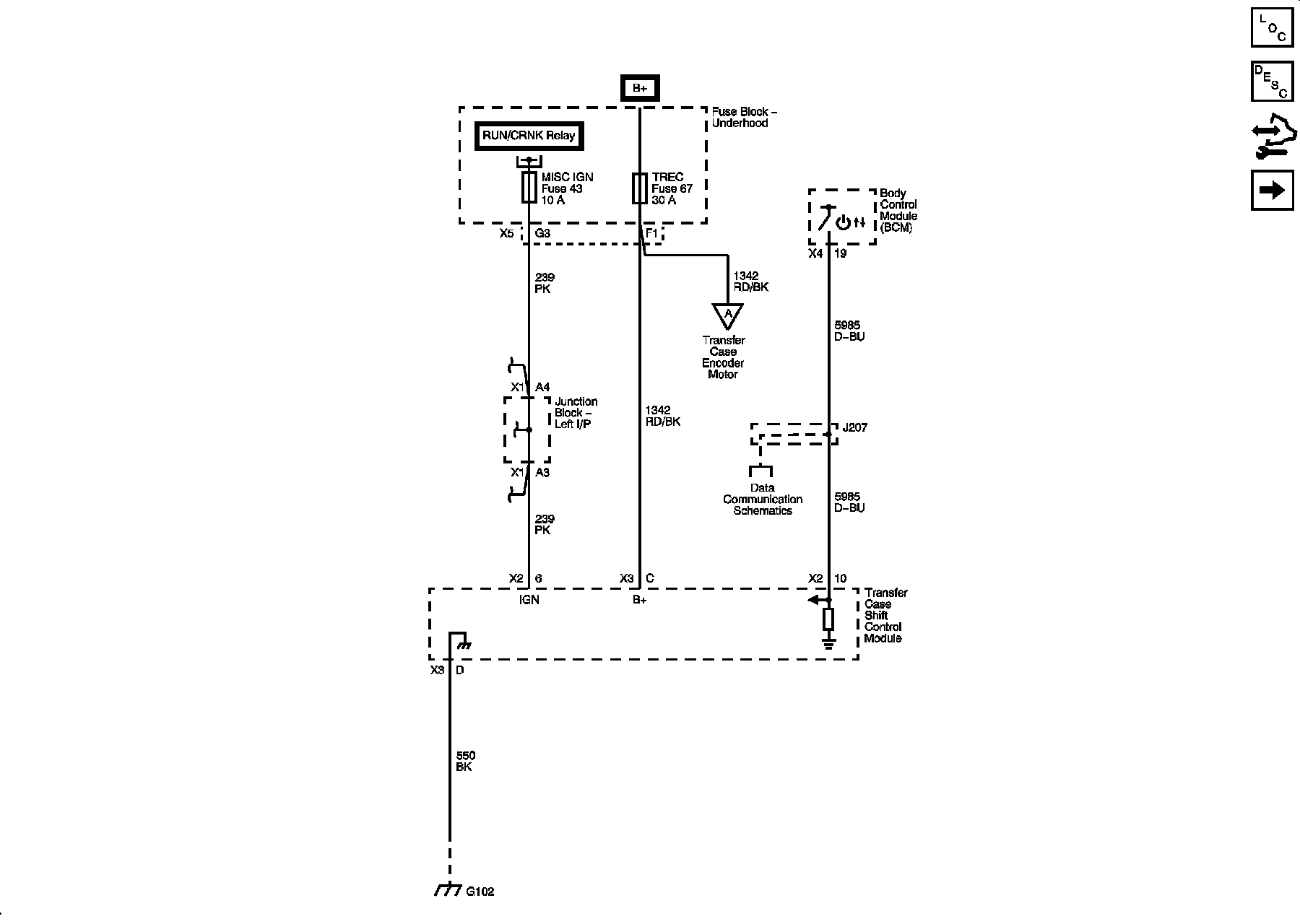

Power and Ground

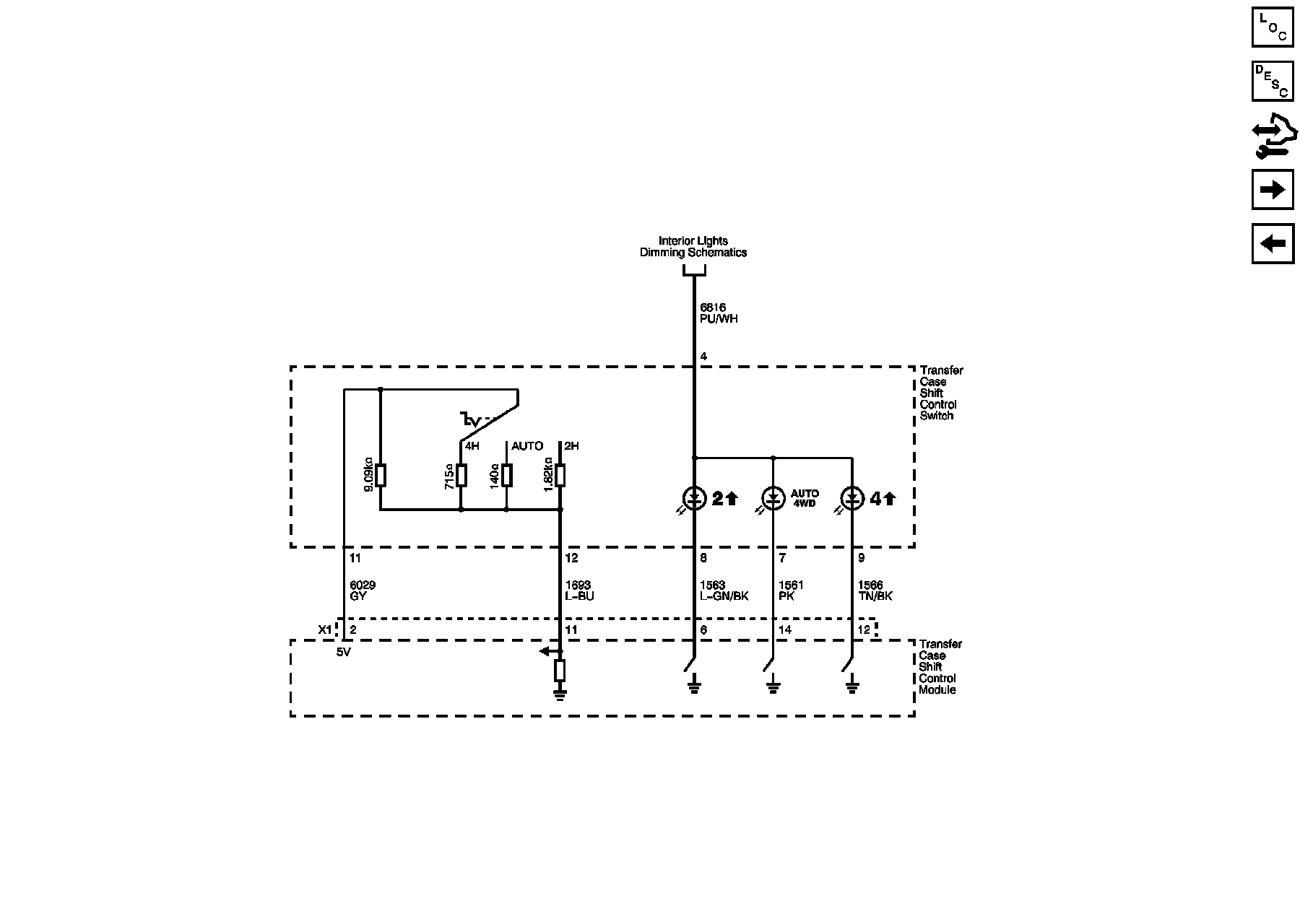

Shift Controls and Indicators

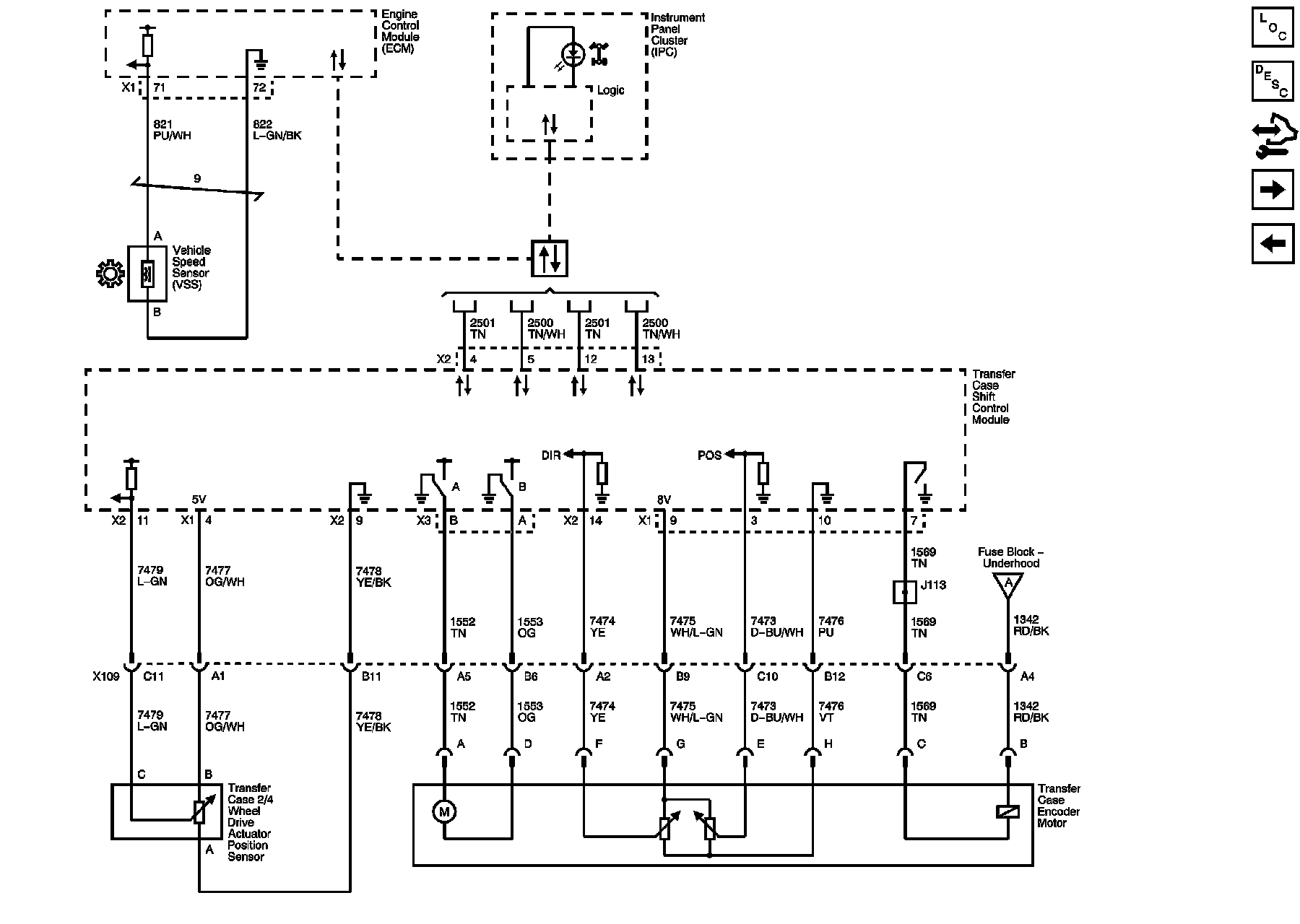

Encoder Motor and Serial Data

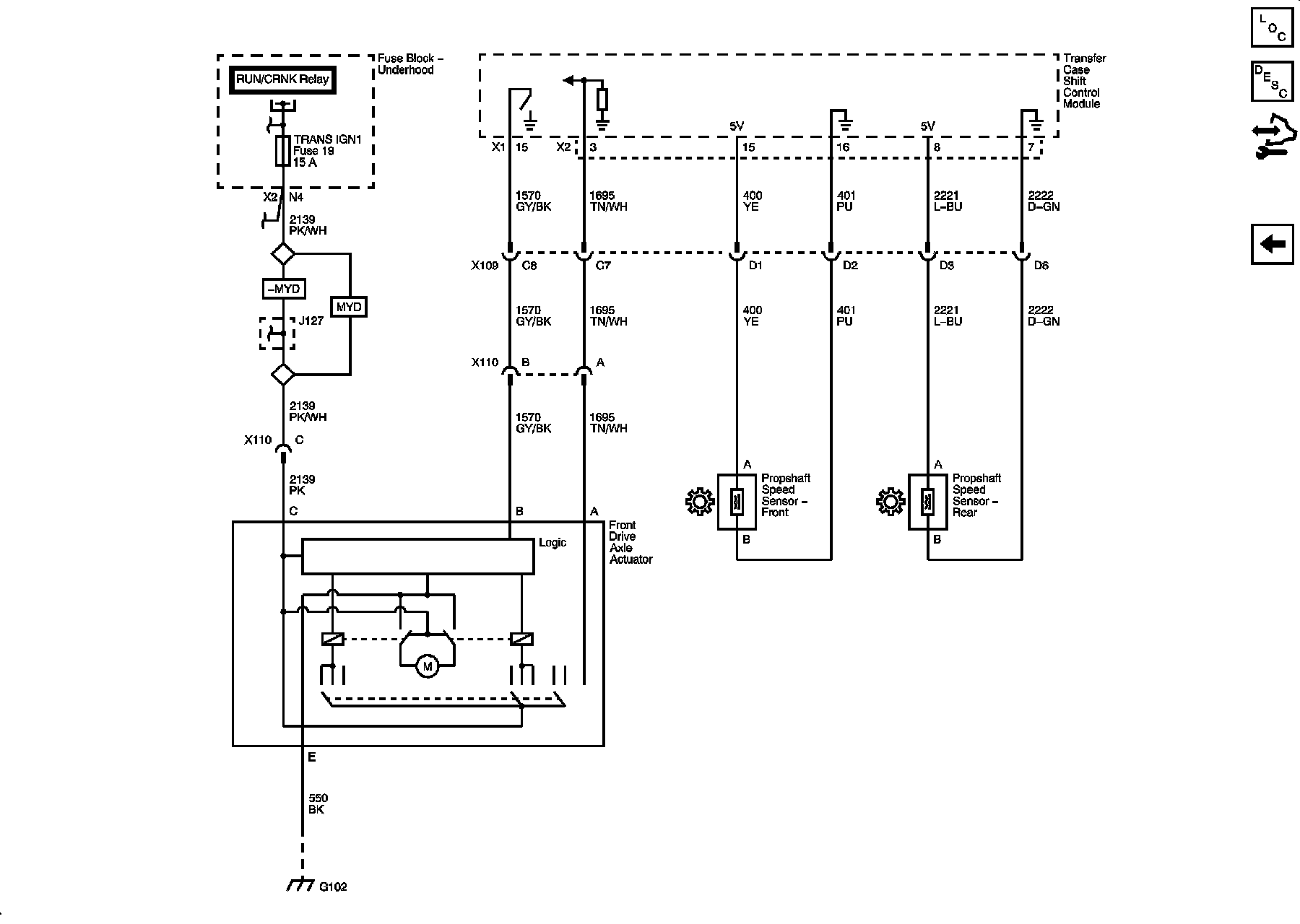

Front Axle Actuator and Speed Sensors
