18. 2-6 Clutch Overhaul (6L80)




2-6 Clutch Overhaul (6L80)

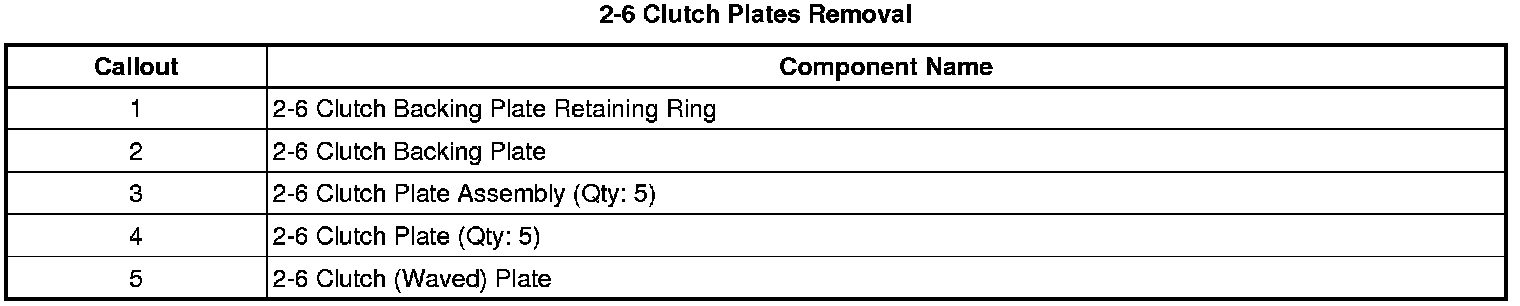

2-6 Clutch Plates Removal

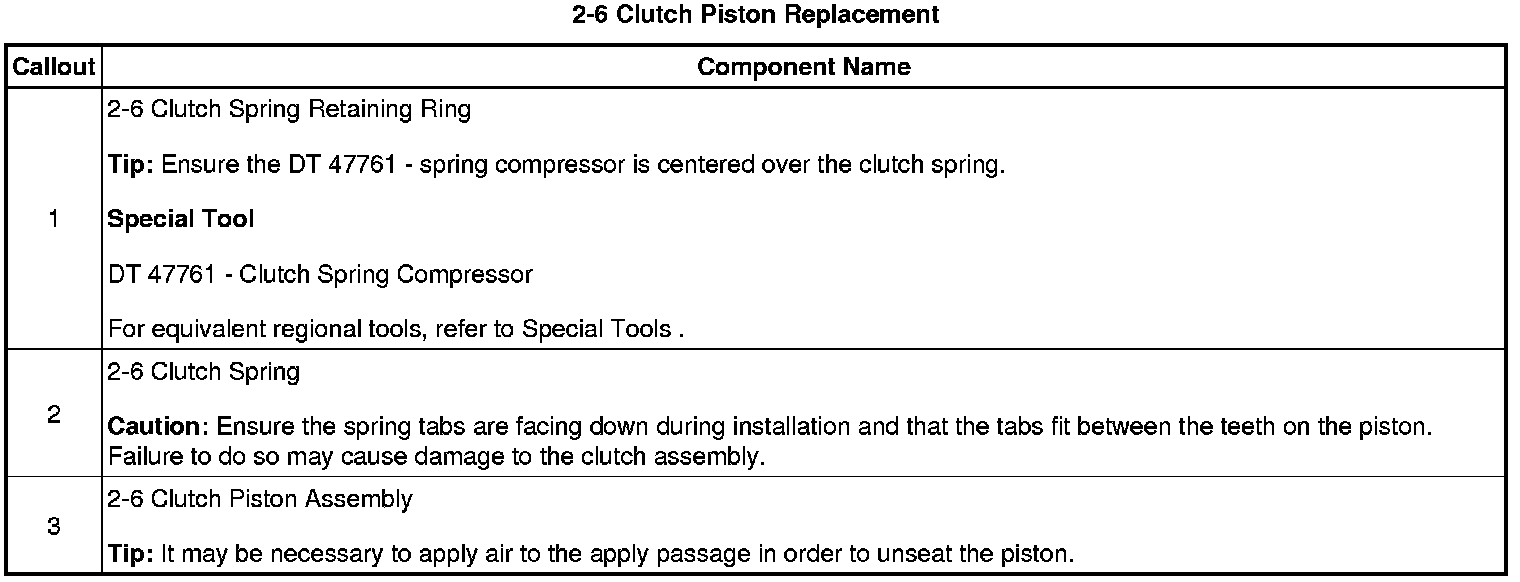

2-6 Clutch Piston Replacement

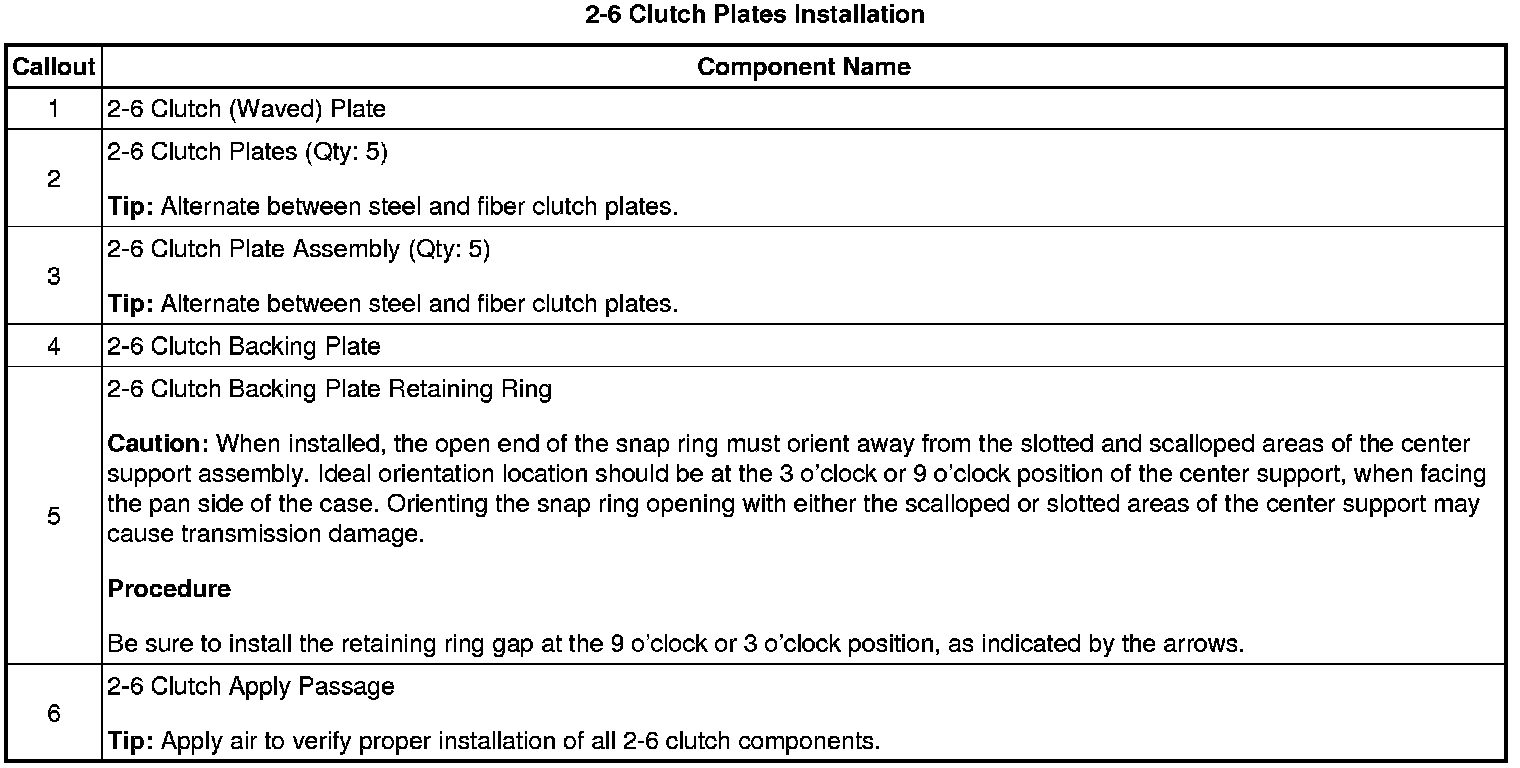

2-6 Clutch Plates Installation
