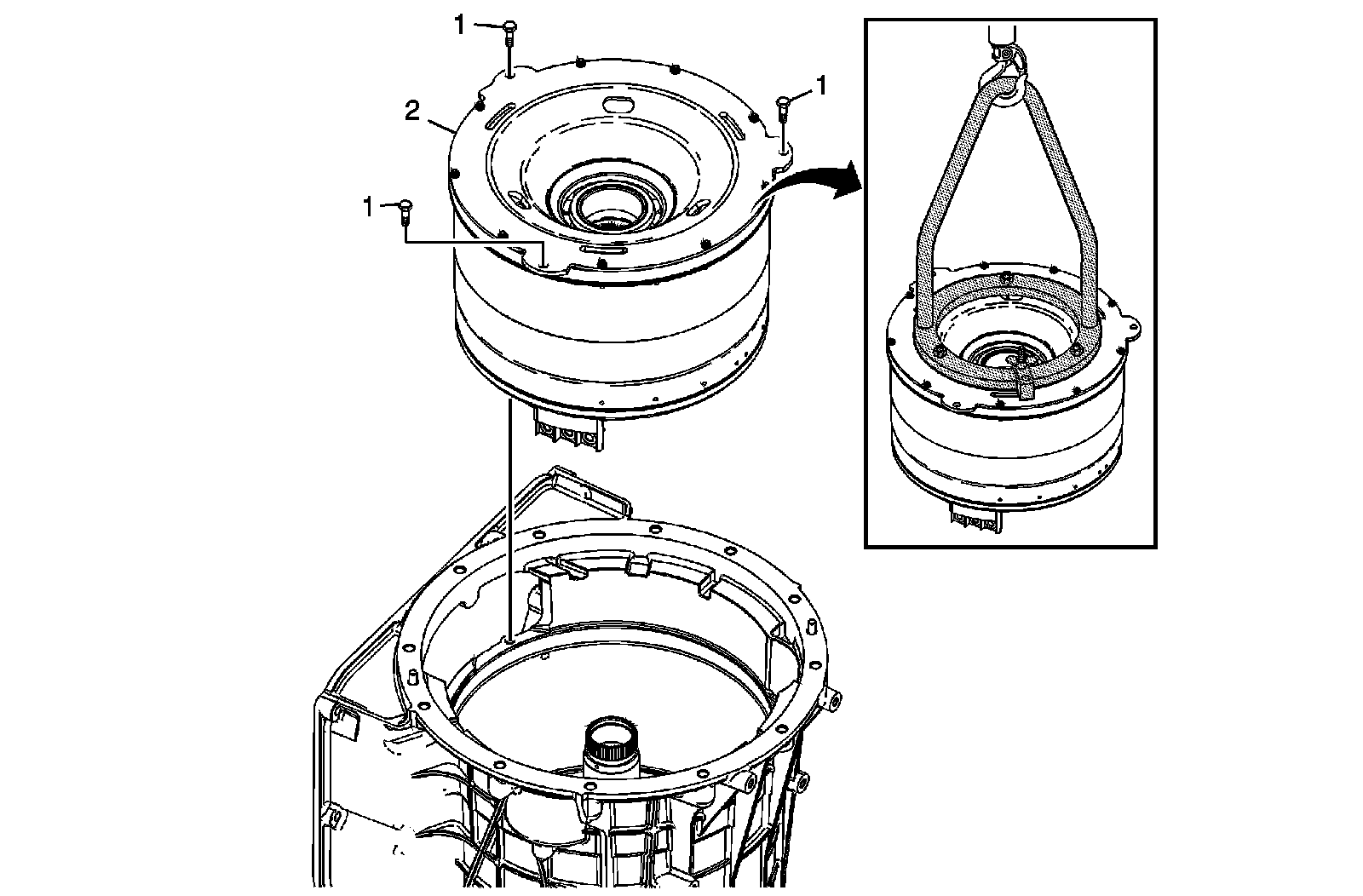

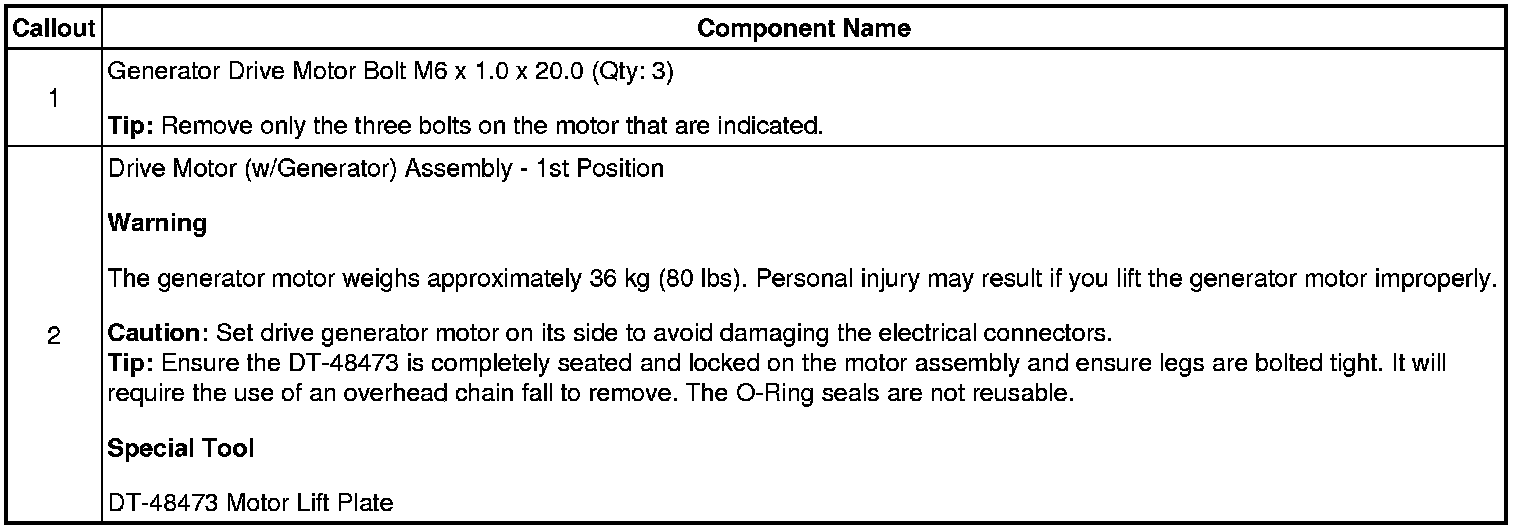

8. Drive Motor with Generator Assembly Removal - 1st Position




Drive Motor with Generator Assembly Removal - 1st Position
