55. Control Valve Assembly Assemble




Control Valve Assembly Assemble

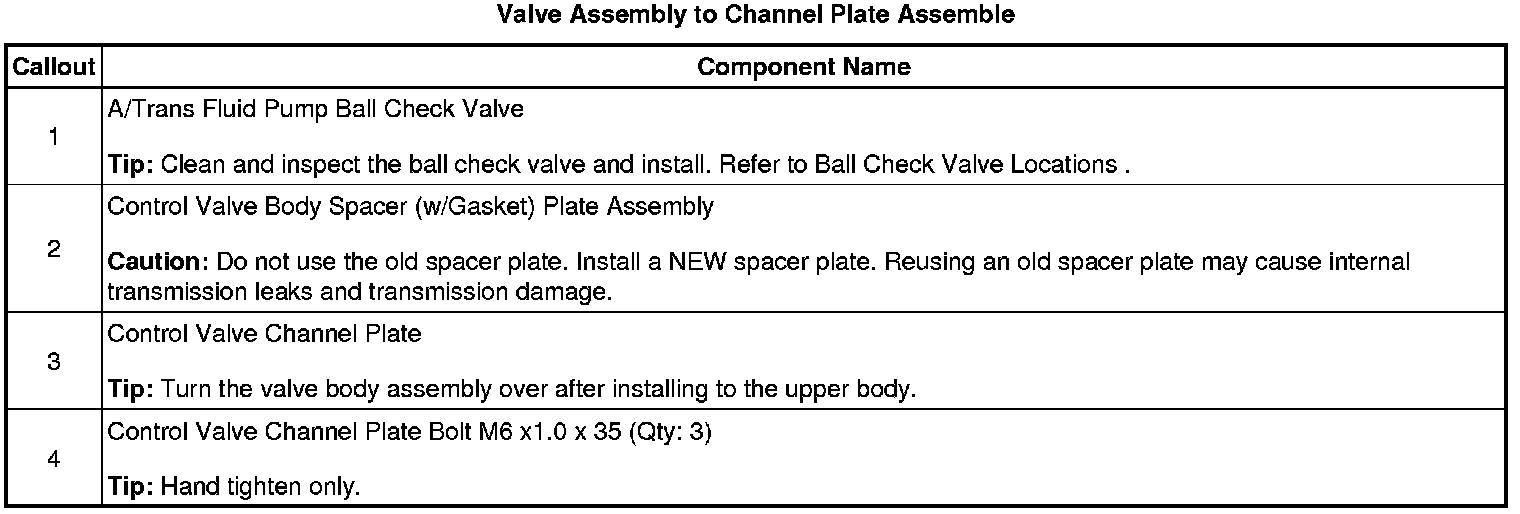

Valve Assembly to Channel Plate Assemble

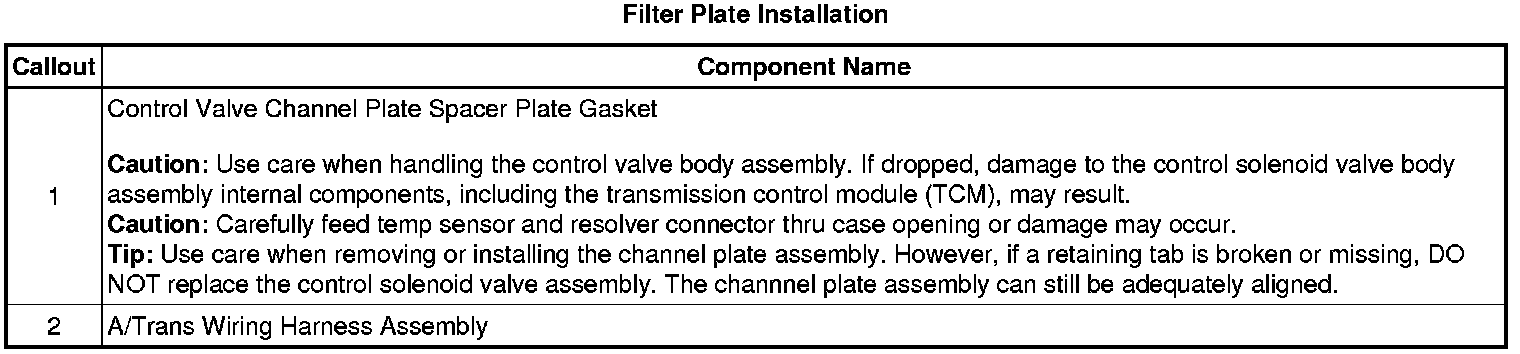

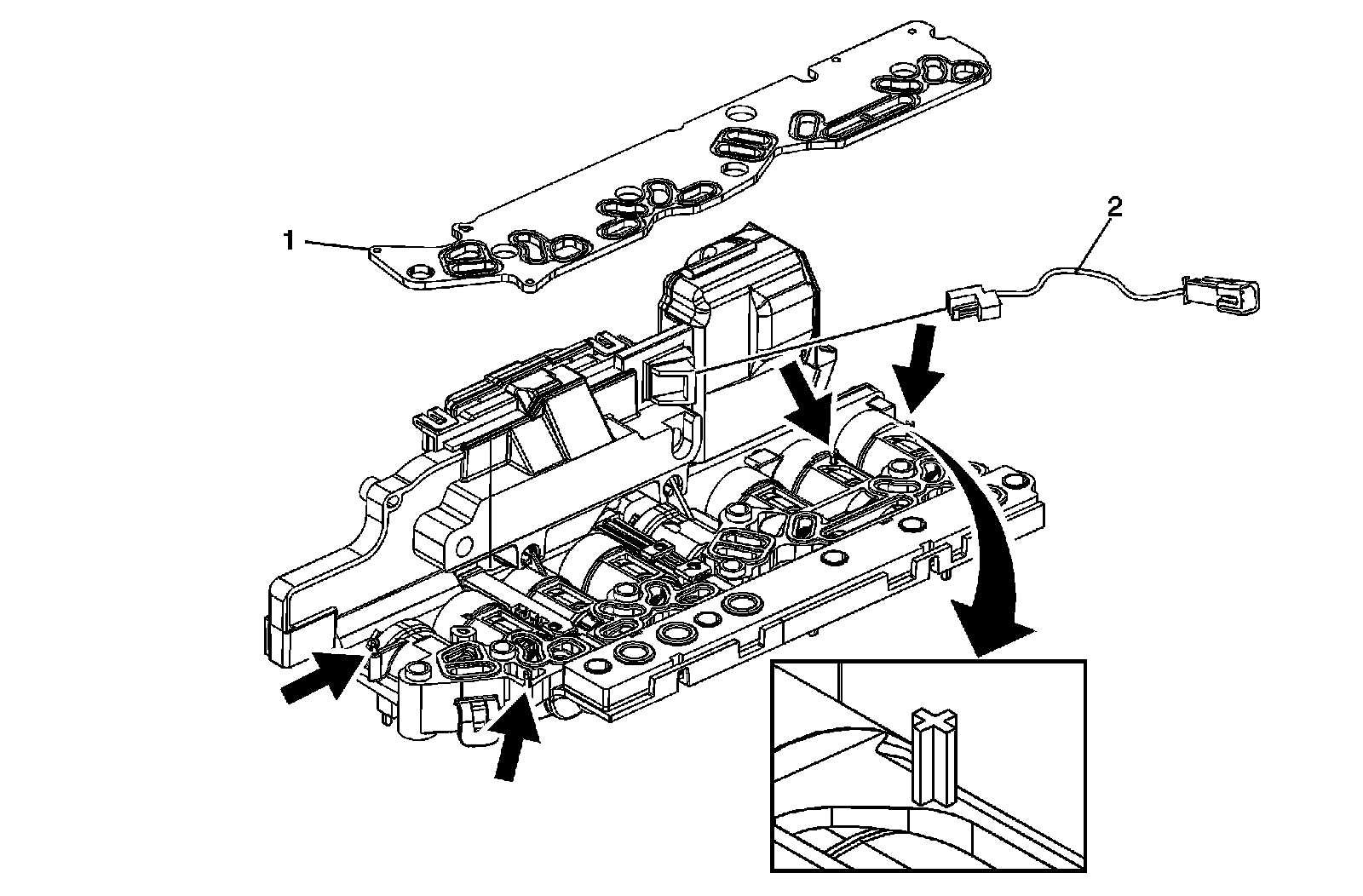

Filter Plate Installation

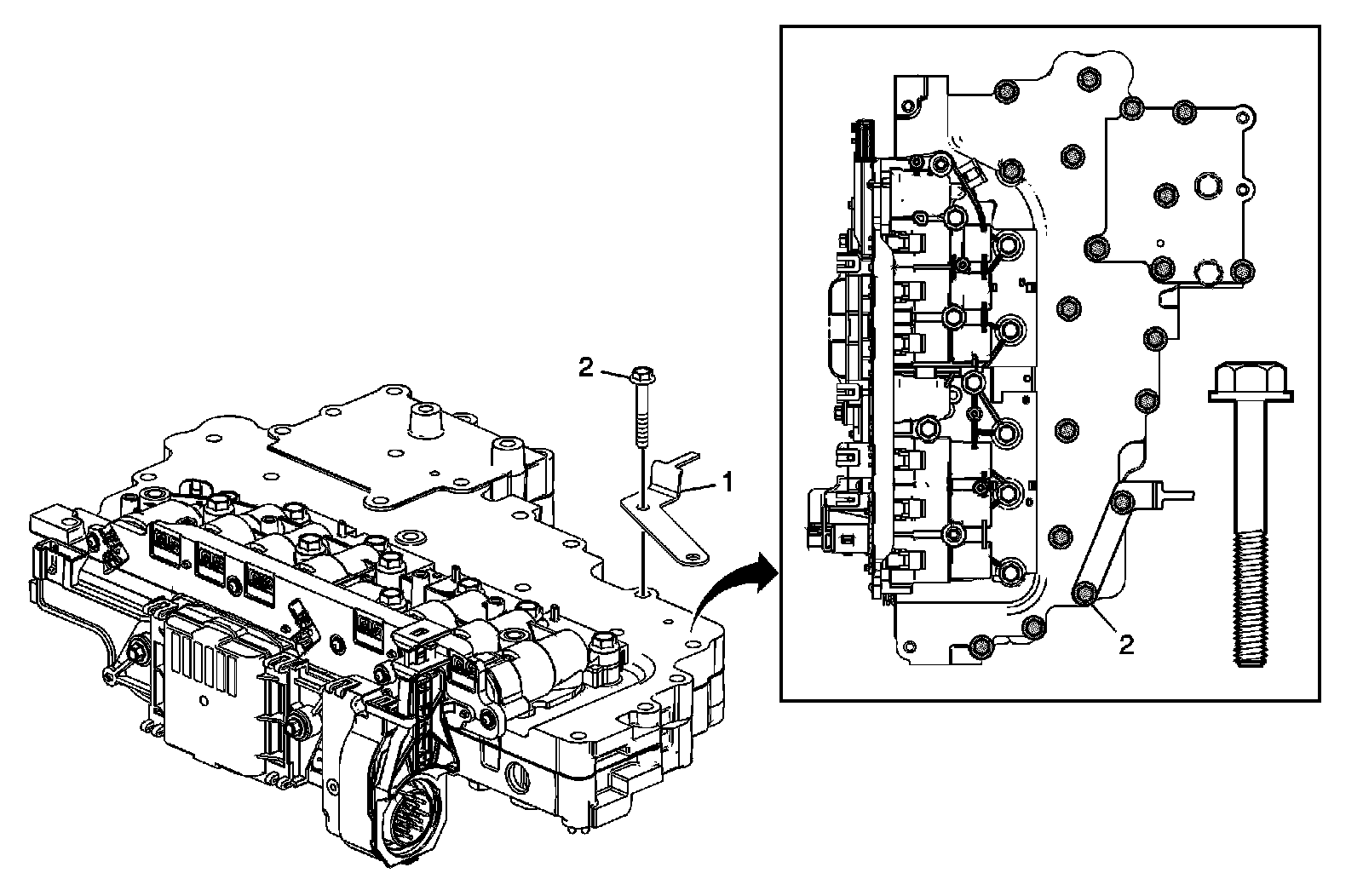

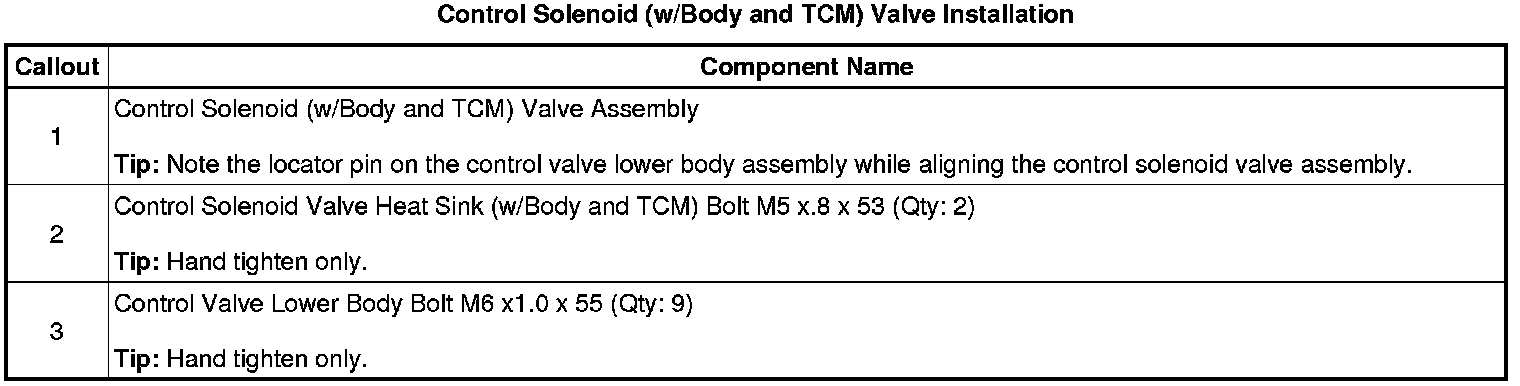

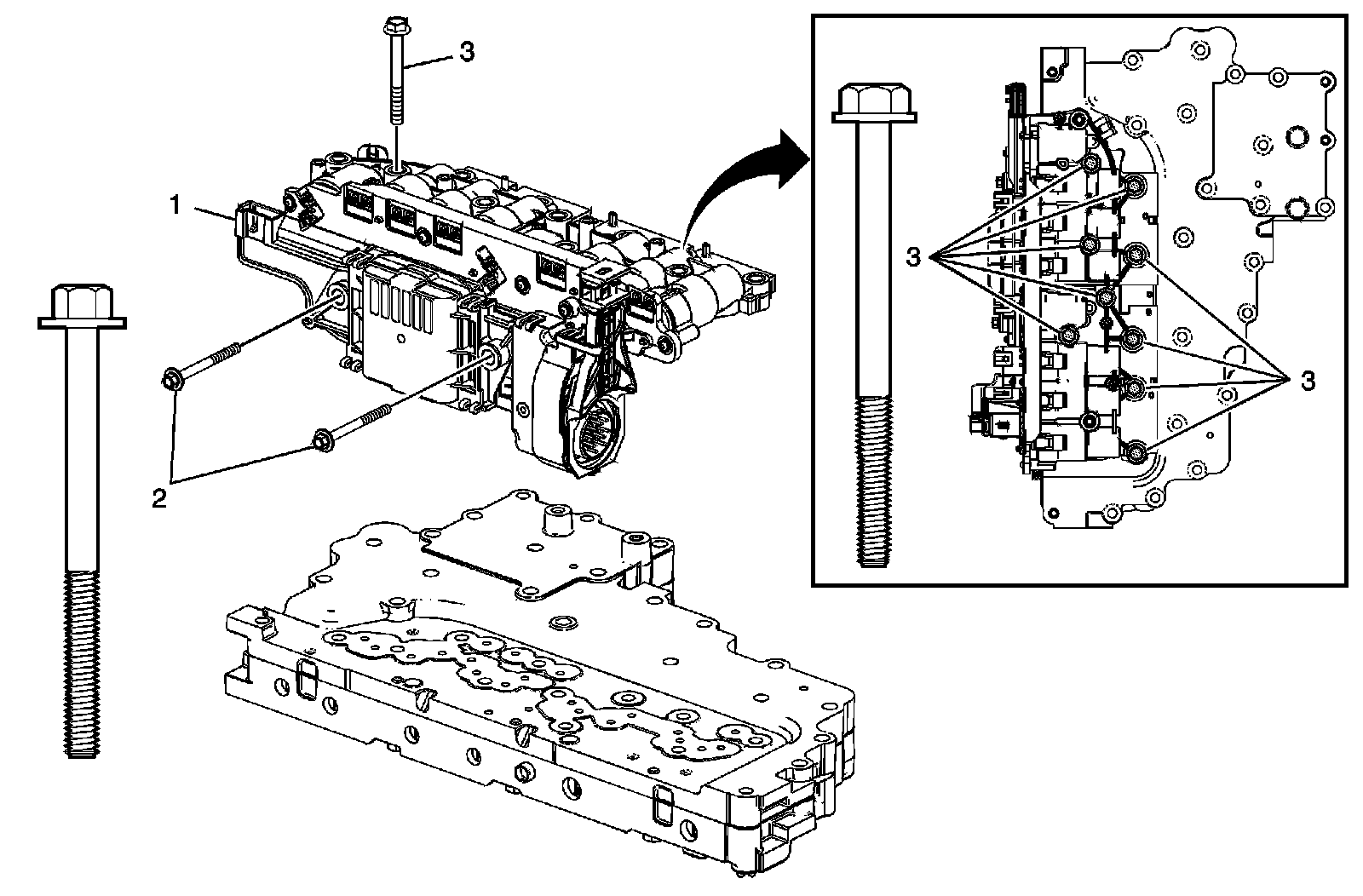

Control Solenoid (w/Body and TCM) Valve Installation

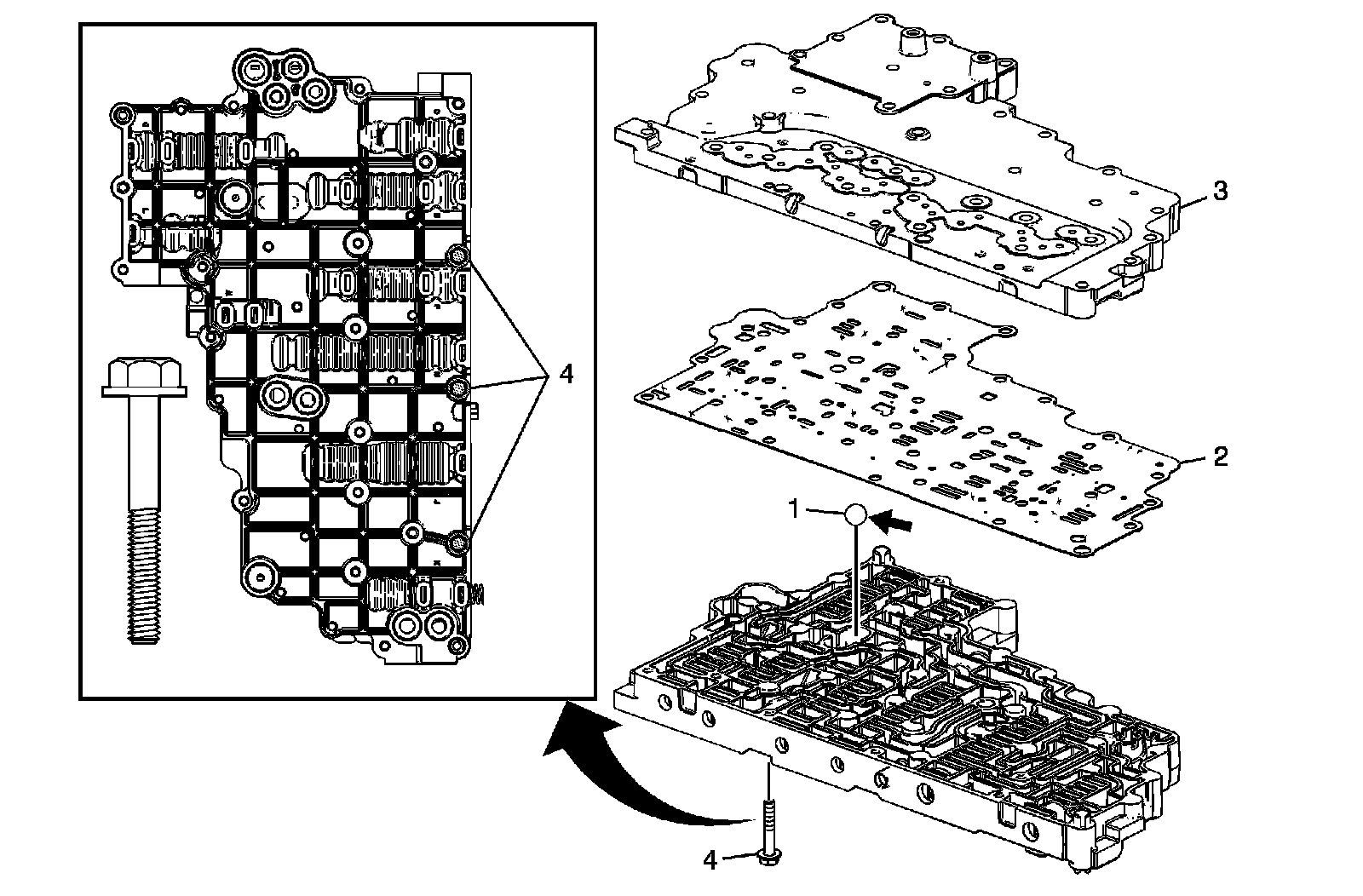

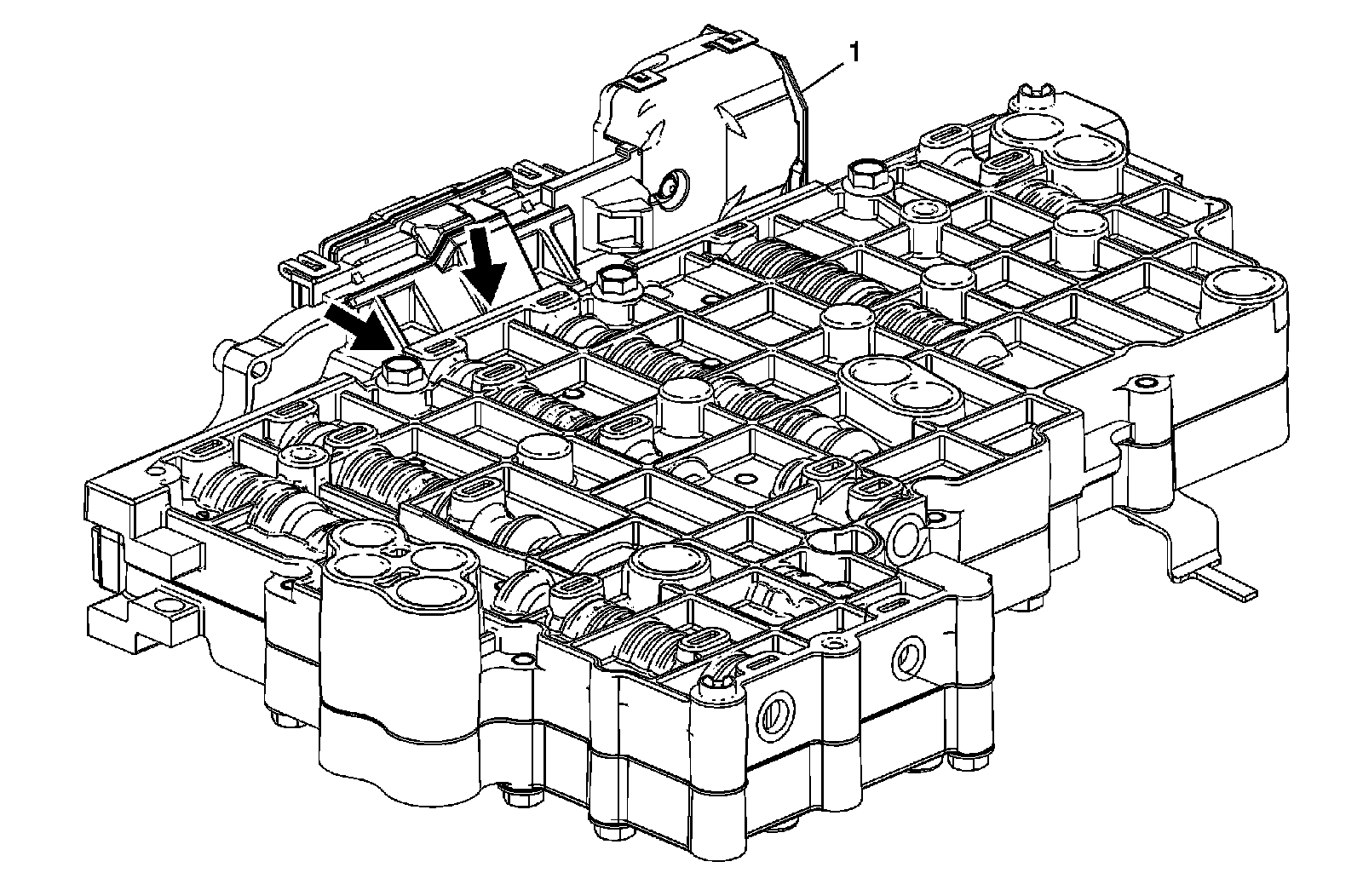

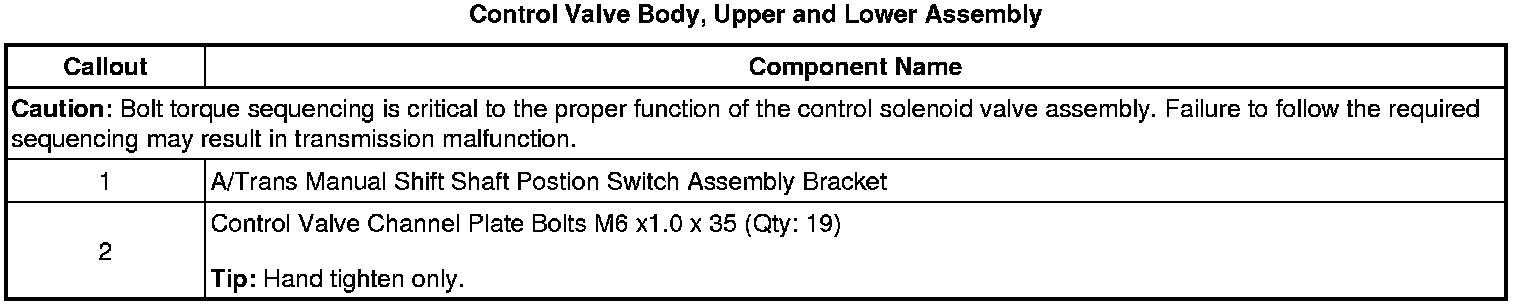

Control Valve Body, Upper and Lower Assembly

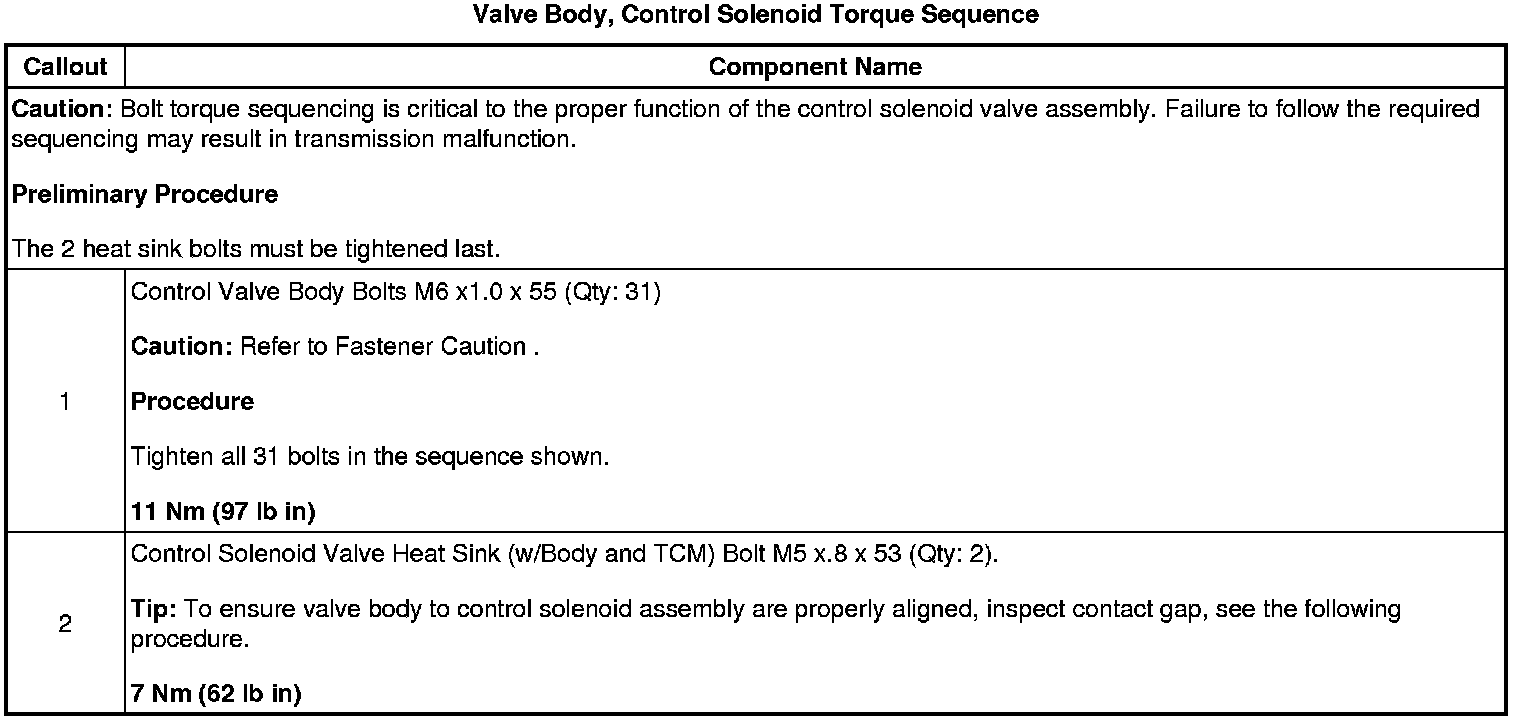

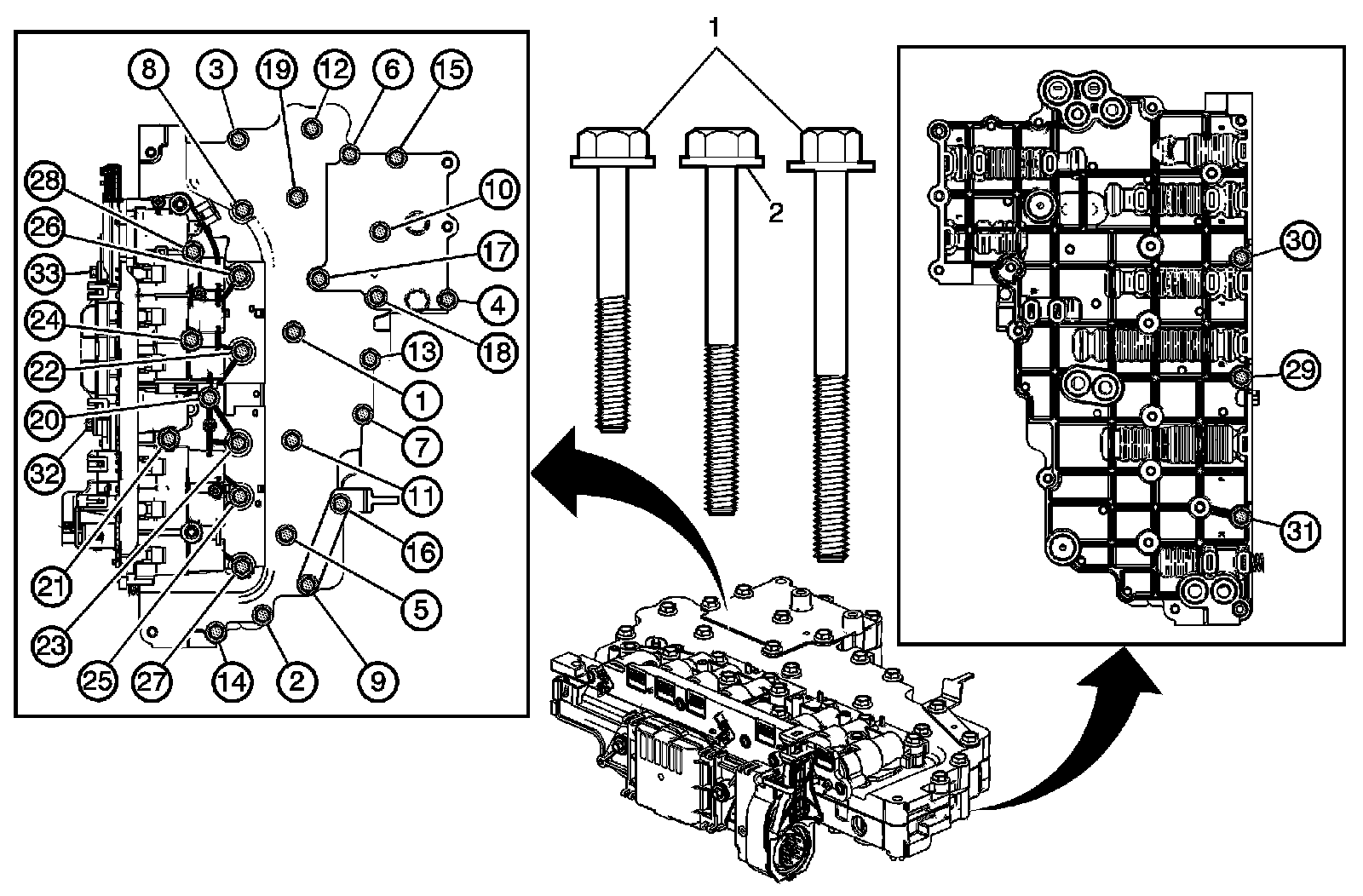

Valve Body, Control Solenoid Torque Sequence

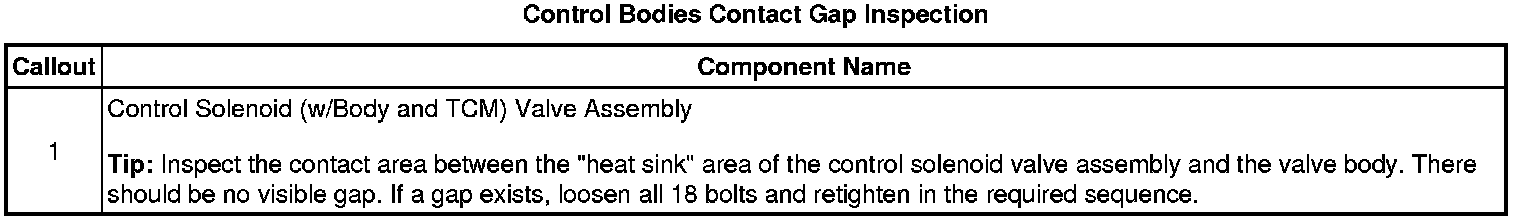

Control Bodies Contact Gap Inspection
