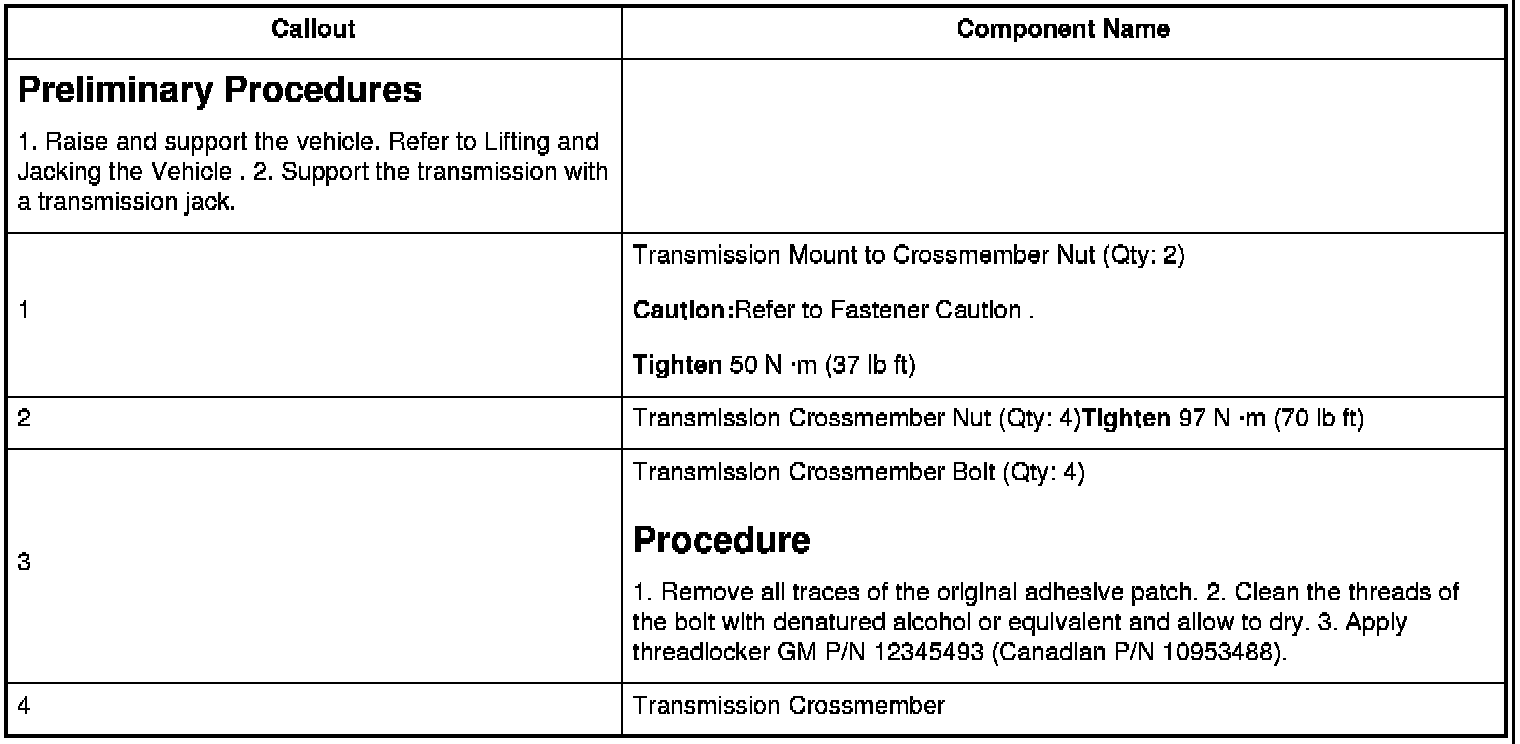

Transmission Support Crossmember Replacement (2WD 2500 Series)


Transmission Support Crossmember Replacement (2WD 2500 Series)










Preliminary Procedures

Caution:Refer to Fastener Caution.
TightenTighten
Procedure
