Home
>>
GMC
>>
2011
>>
Yukon 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Brakes and Traction Control
>>
Wheel Speed Sensor
>>
Diagrams
>>
Wheel Speed Sensor (WSS) - Right Front (JH6 Over 8600 GVW)
Wheel Speed Sensor (WSS) - Right Front (JH6 Over 8600 GVW)

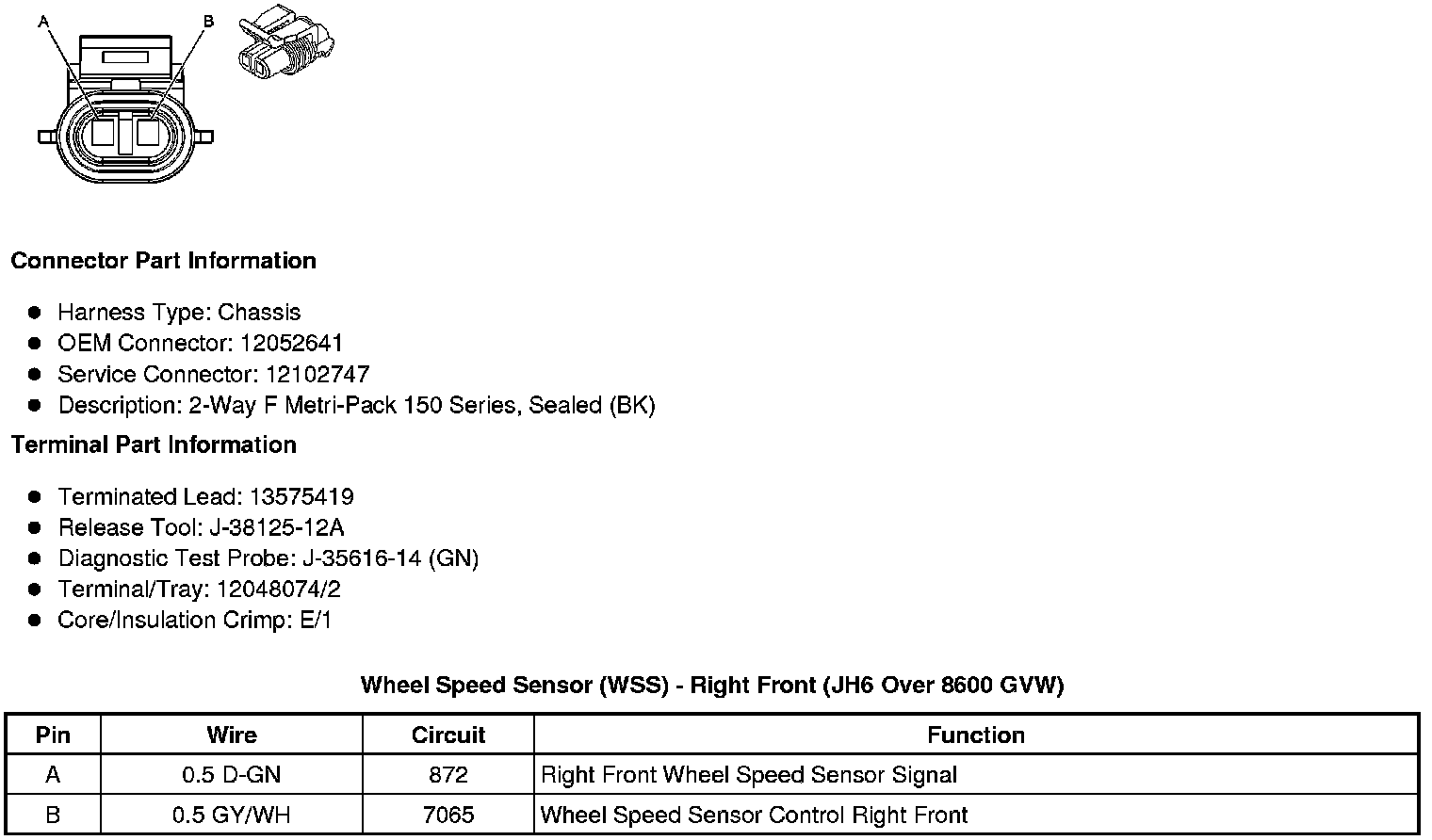

Component Connector End Views
Wheel Speed Sensor
(WSS) - Right Front (JH6 Over 8600 GVW)
