Power Seat Motor Position Sensor
>>
Diagrams
>>
Seat Recline Position Sensor - Driver (AN3)
Seat Recline Position Sensor - Driver (AN3)

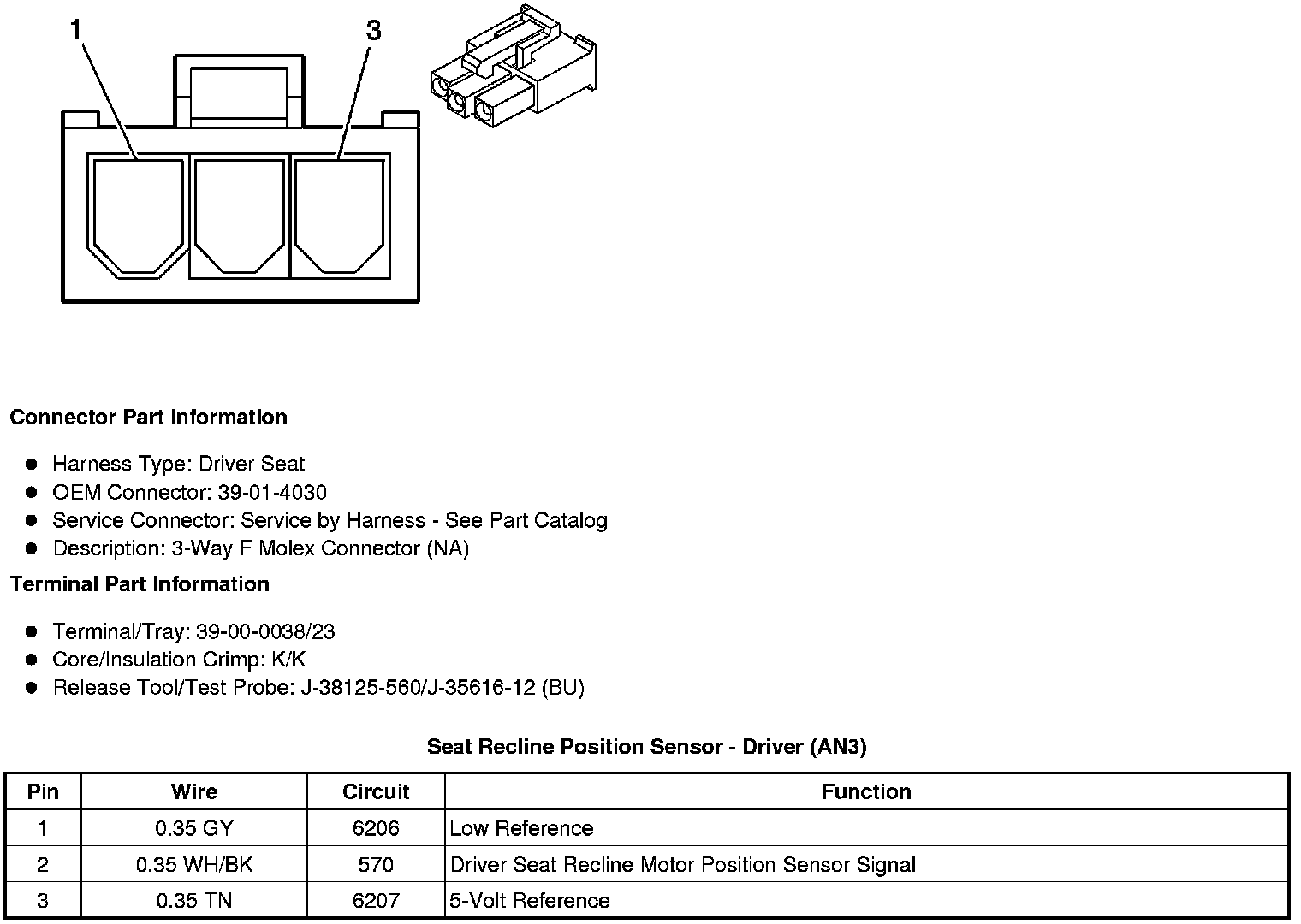

Component Connector End Views
Seat Recline Position Sensor - Driver (AN3)
