Seat Occupant Classification Module - Air Bag: Diagrams

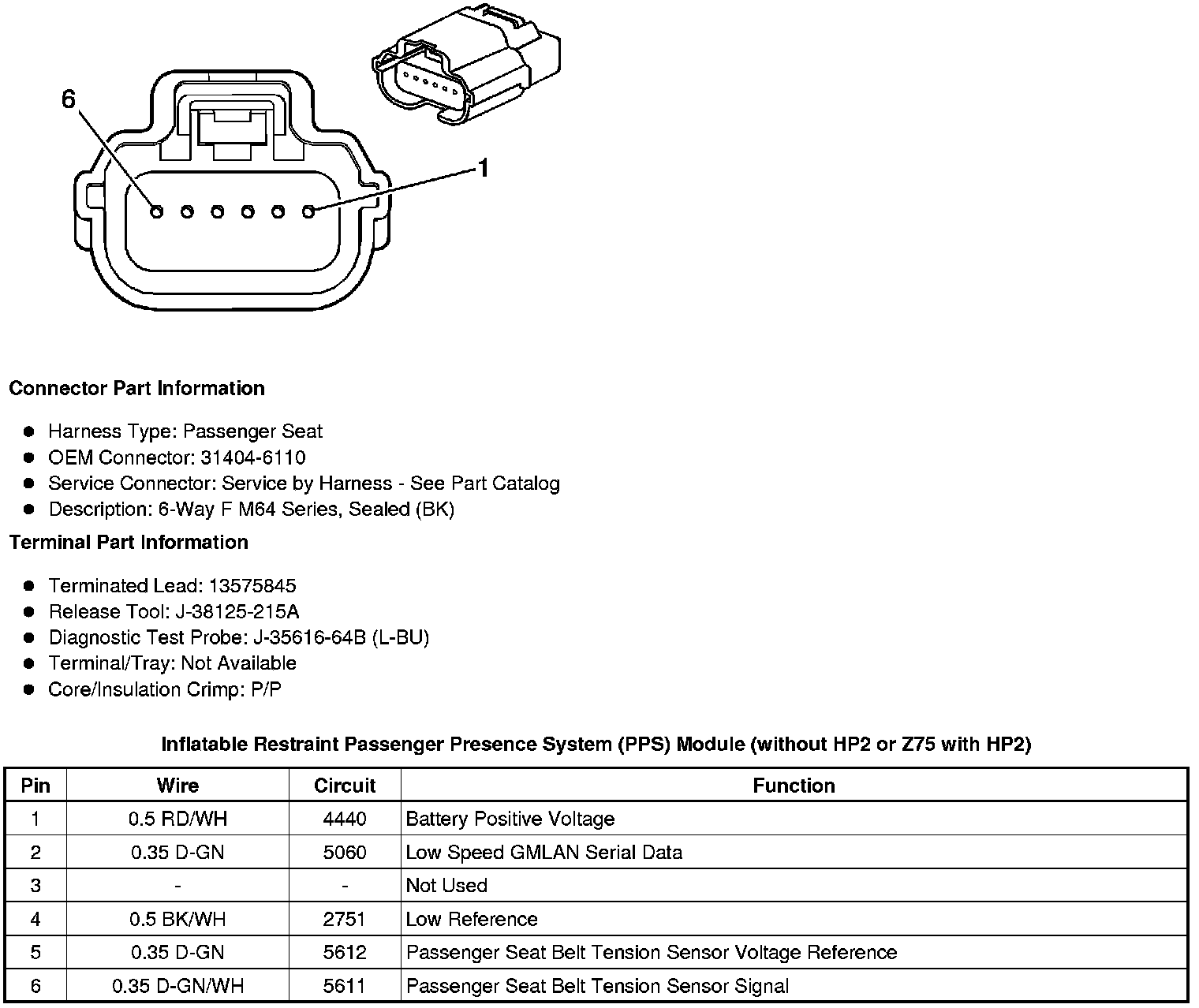

Component Connector End Views

Inflatable Restraint Passenger Presence System (PPS) Module (without HP2 or Z75 with HP2)
