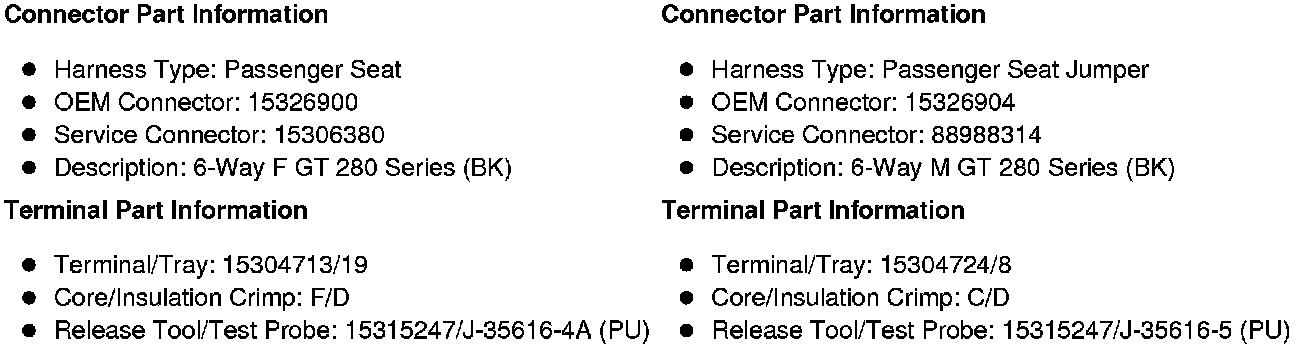

X325 Passenger Seat Harness to Passenger Seat Jumper Harness (AN3)

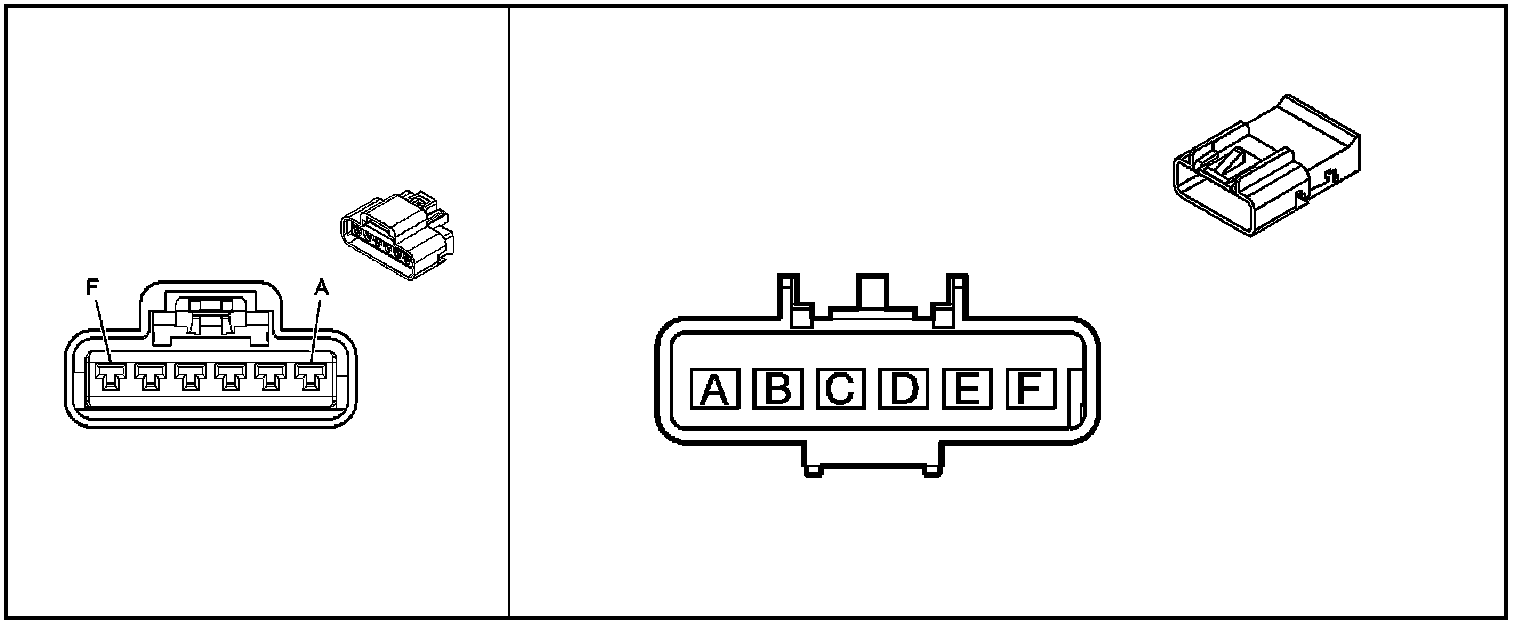

Inline Harness Connector End Views

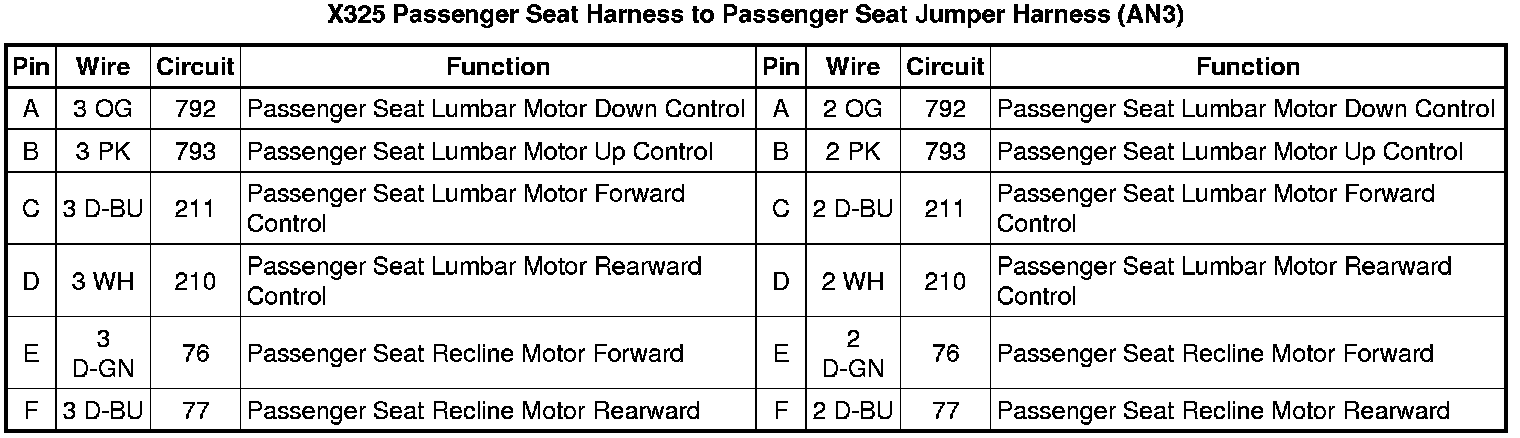

X325 Passenger Seat Harness to Passenger Seat Jumper Harness (AN3)
