X300 Chassis Harness to Engine Harness (MYD)
X300 Chassis Harness to Engine Harness (MYD)

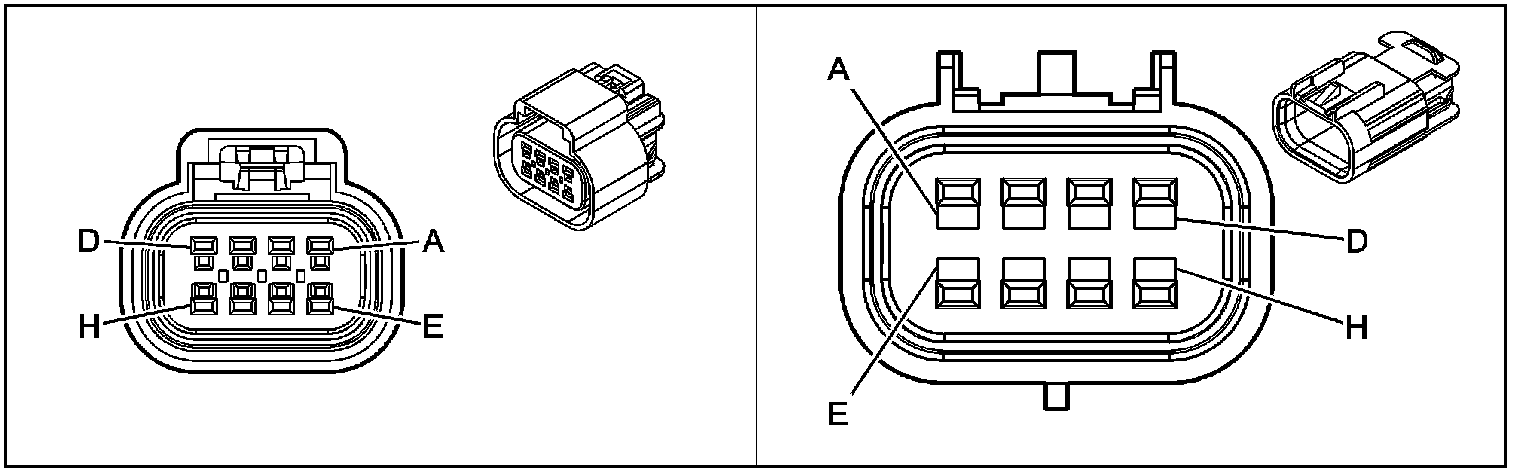

Inline Harness Connector End Views

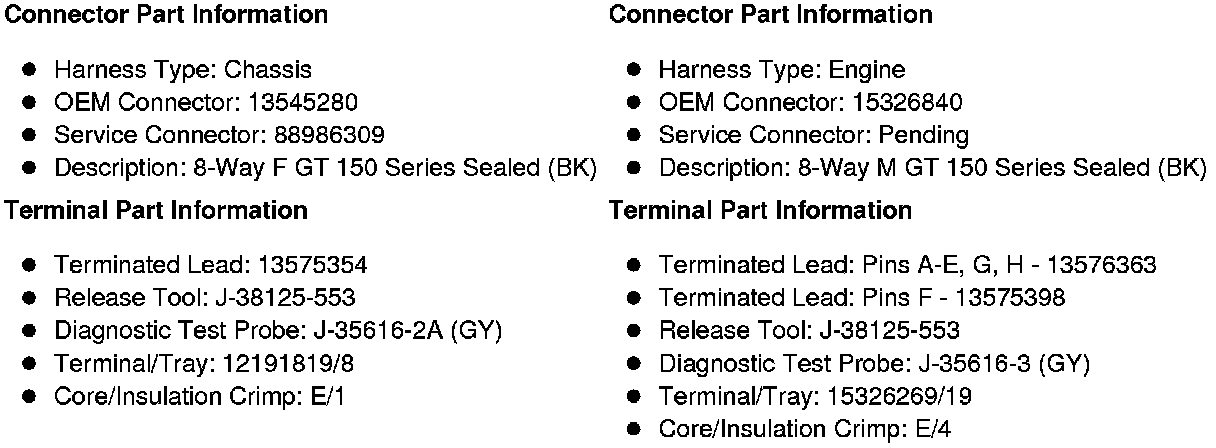

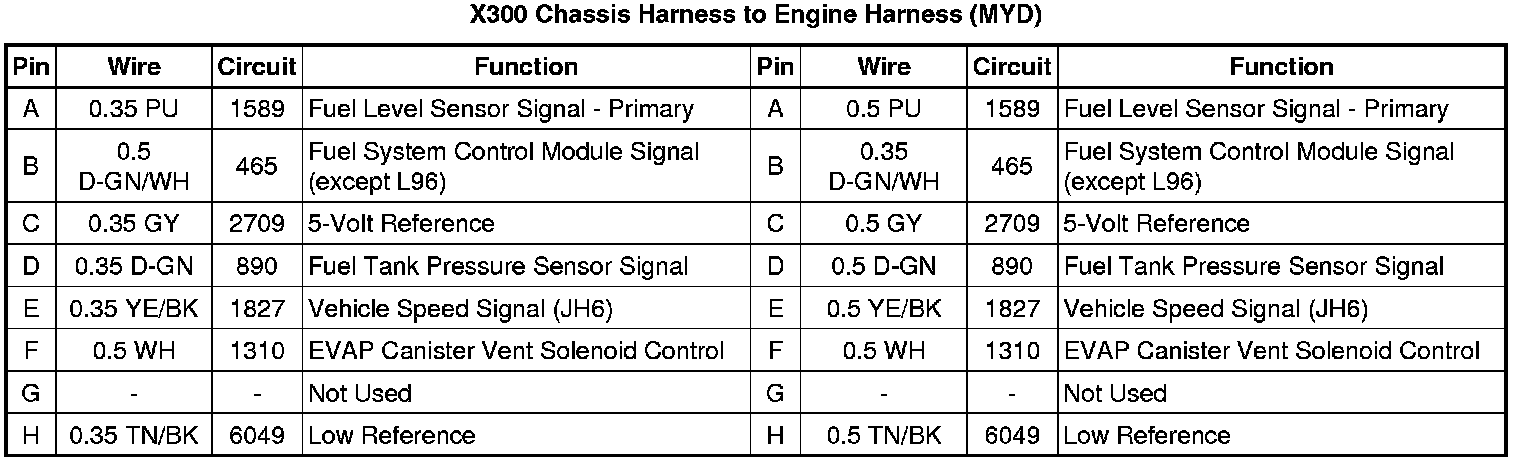

X300 Chassis Harness to Engine Harness (MYD)
