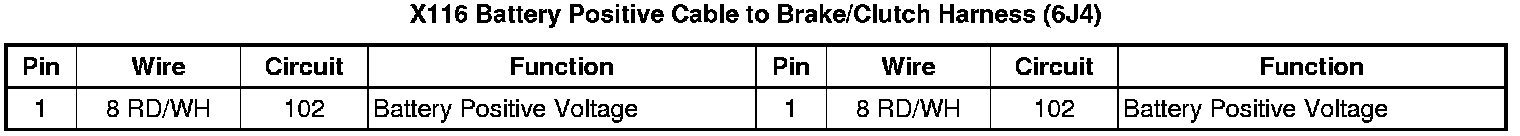

X116 Battery Positive Cable to Brake/Clutch Harness (6J4)
X116 Battery Positive Cable to Brake/Clutch Harness (6J4)

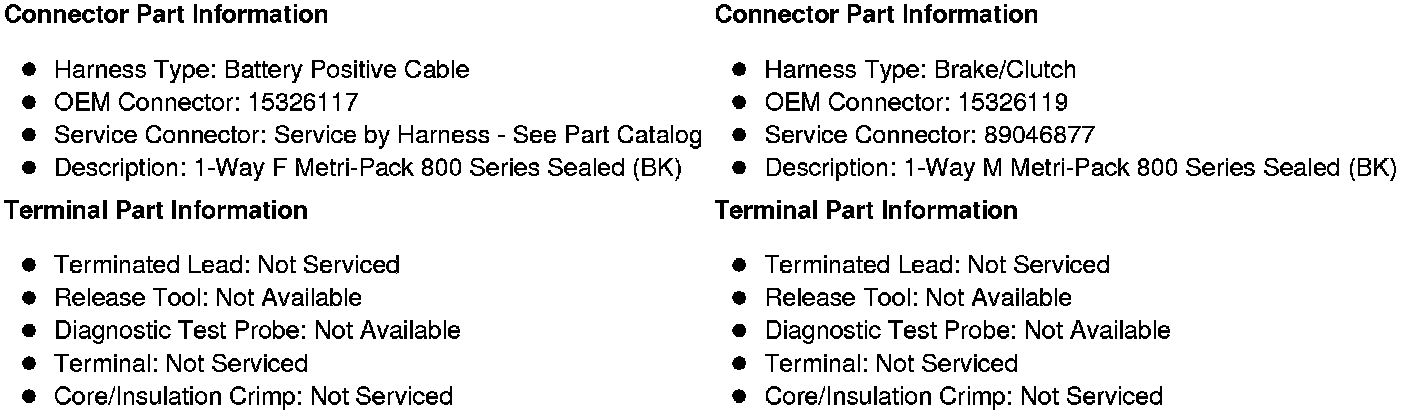

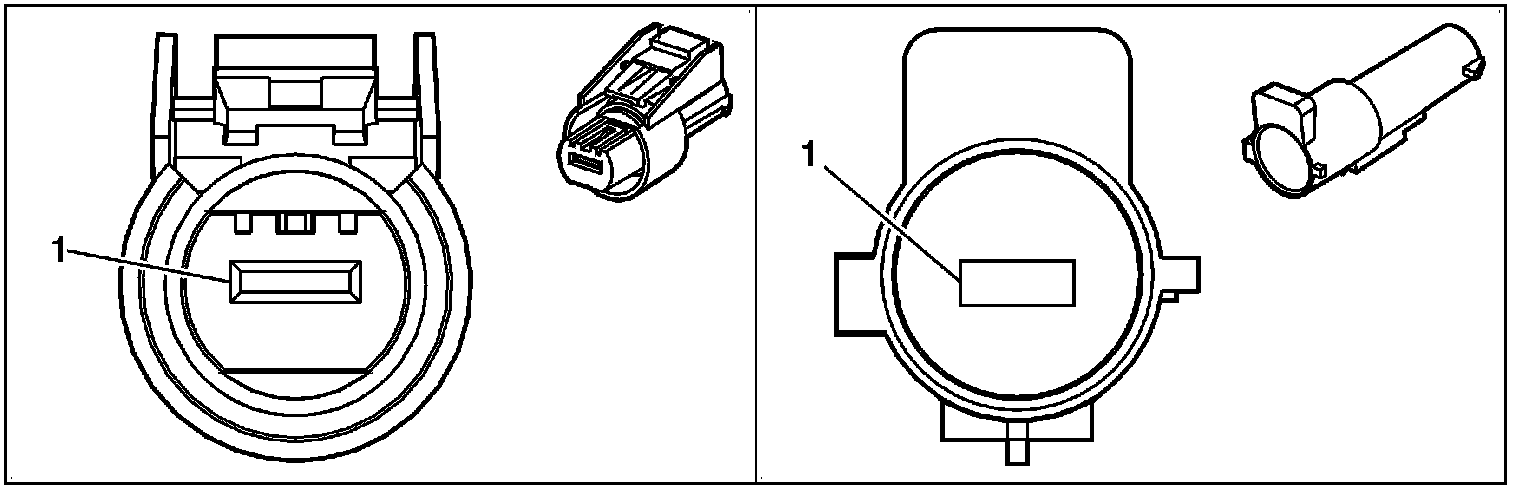

Inline Harness Connector End Views
X116 Battery Positive Cable to Brake/Clutch Harness (6J4)
