Tail/Stop Lamp - Left (X88 or Z88, with HP2)

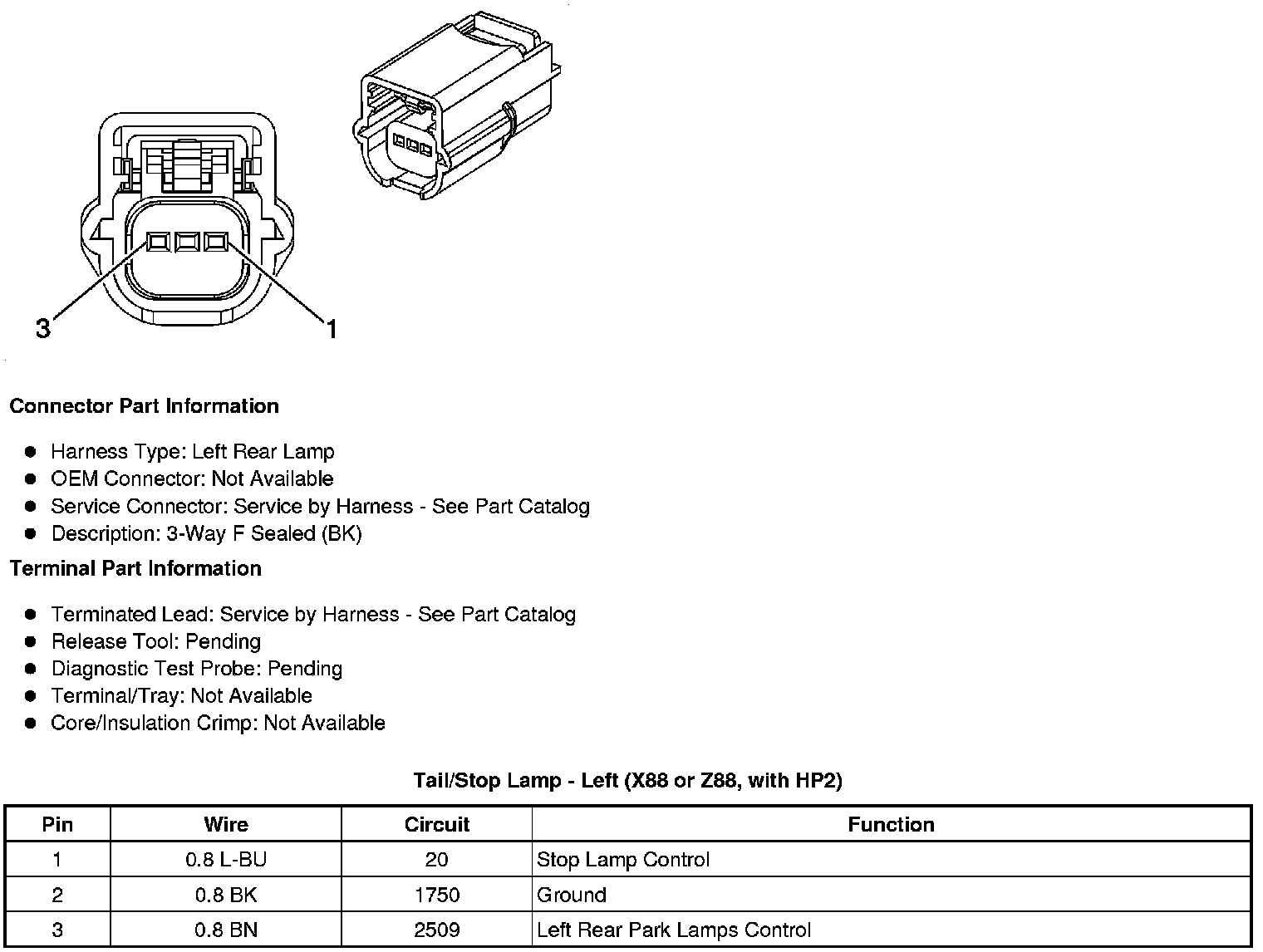

Tail/Stop Lamp - Left (X88 or Z88, with HP2)
Component Connector End Views
Tail/Stop Lamp - Left (X88 or Z88, with HP2)
