Tail/Stop and Turn Signal Lamp - Upper Right (without E52 or TB7)

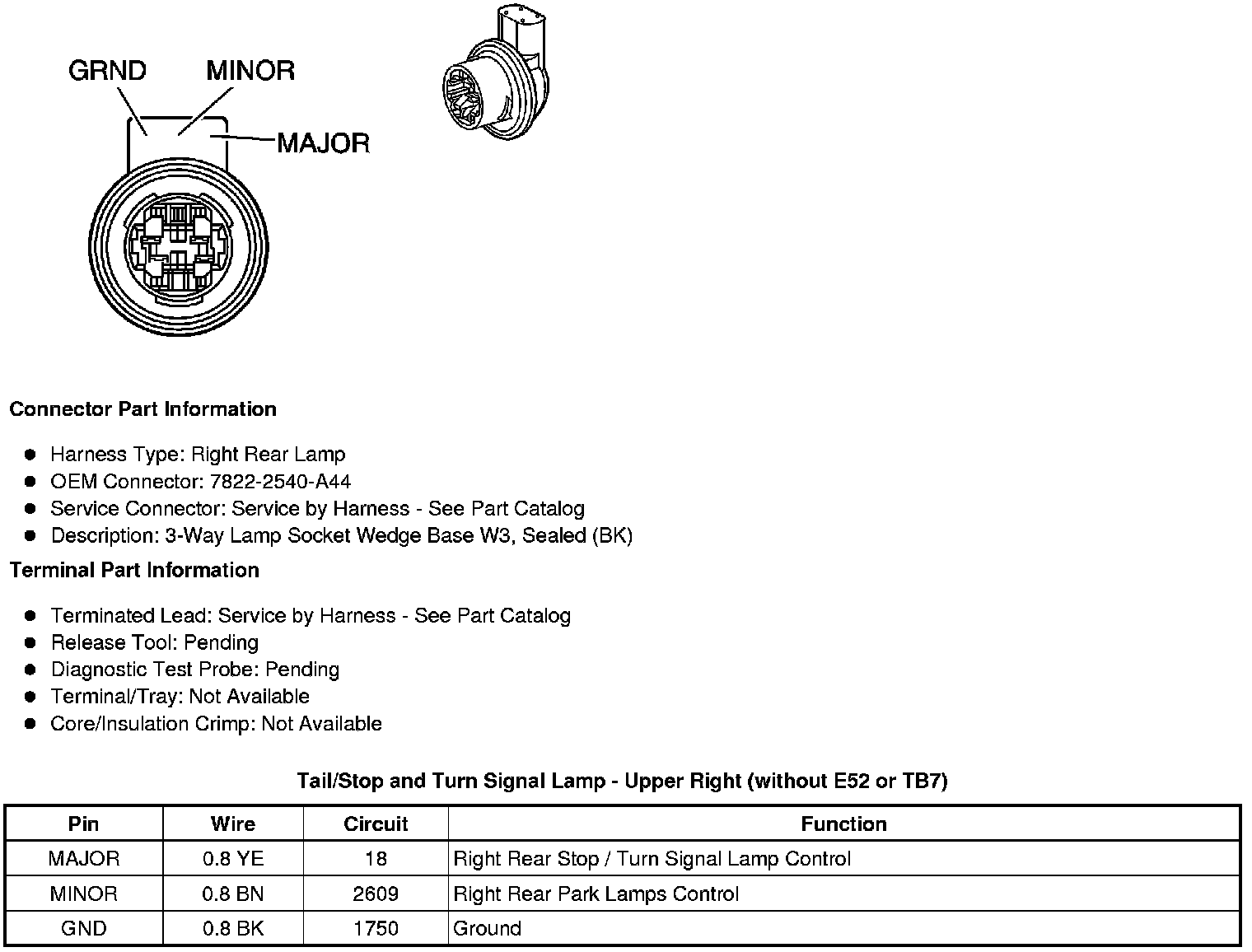

Component Connector End Views

Tail/Stop and Turn Signal Lamp - Upper Right (without E52 or TB7)
