Side Marker Lamp - Left Rear
Side Marker Lamp - Left Rear

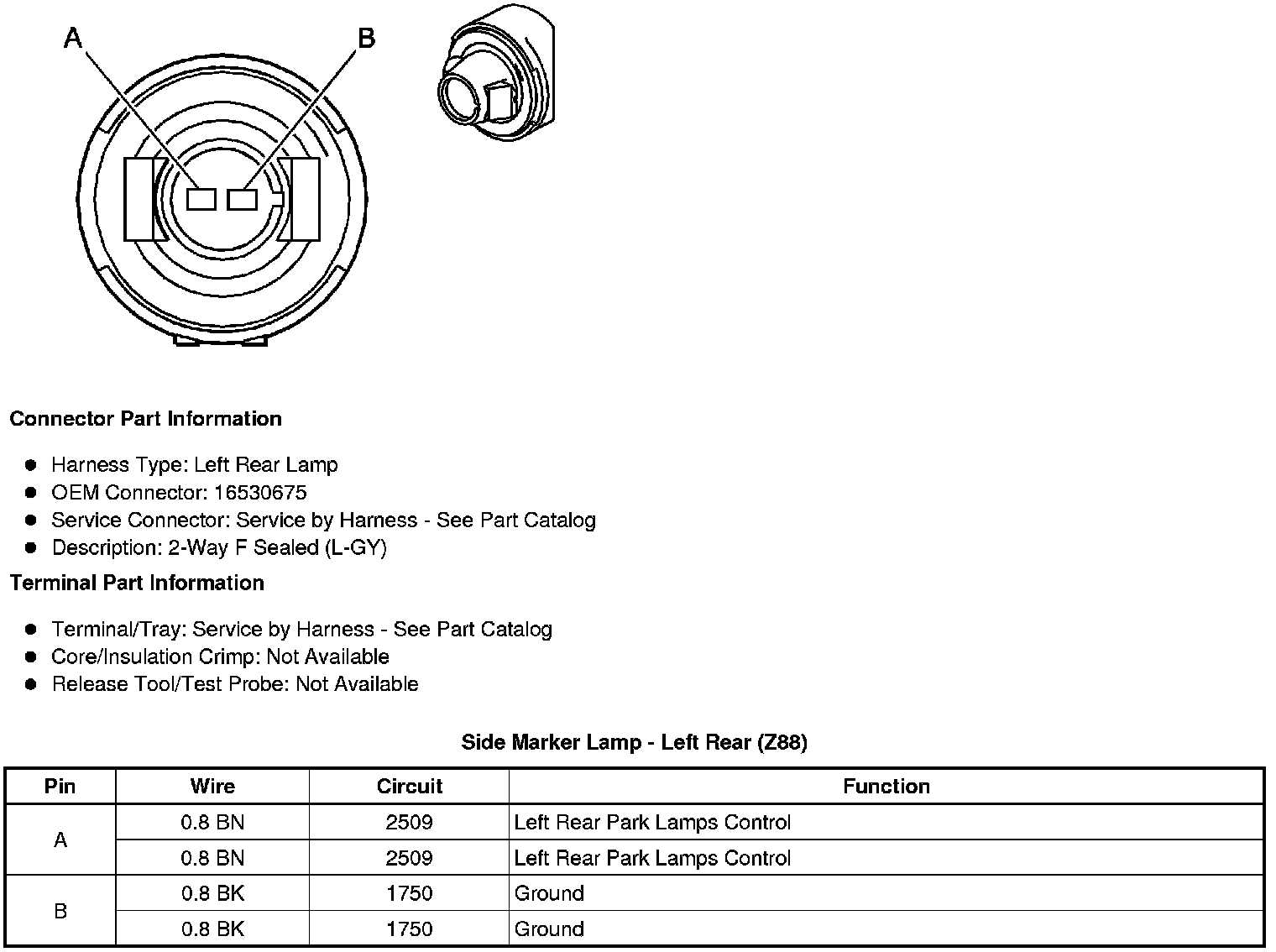

Component Connector End Views
Side Marker Lamp - Left Rear (Z88)
