Home >> GMC >> 2011 >> Yukon 4WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> System Diagram

System Diagram

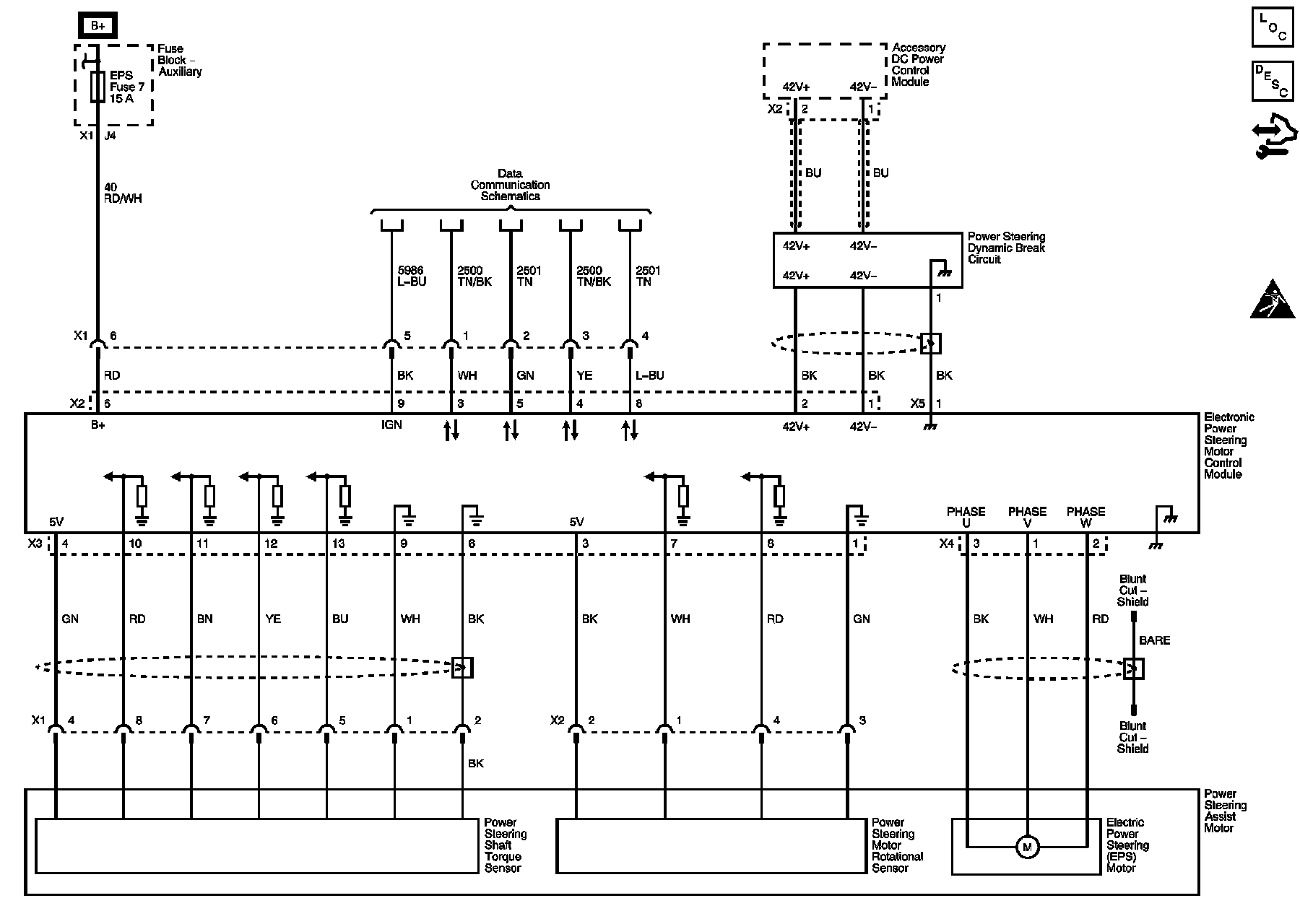

Power Steering Schematics

Hybrid
