GMC
>>
2011
>>
Yukon 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
>>
Steering Column
>>
Tilt/Telescoping Steering Column Schematics

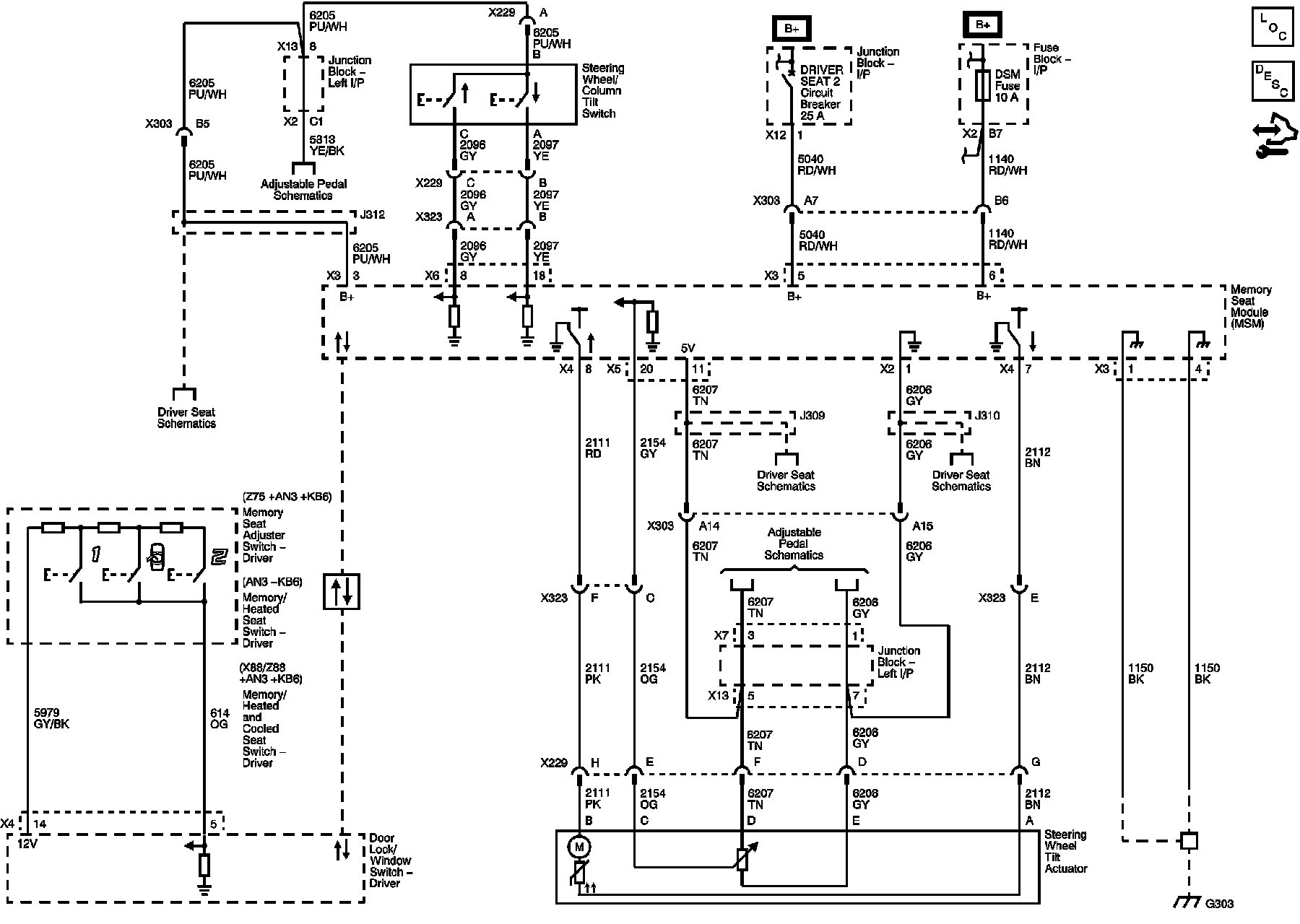

Tilt/Telescoping Steering Column Schematics
Tilt/Telescoping
Steering Column
Schematics
N48
