Non-Hybrid Less than 3900 kg (8600 lb) GVW




Antilock Brake System Schematics

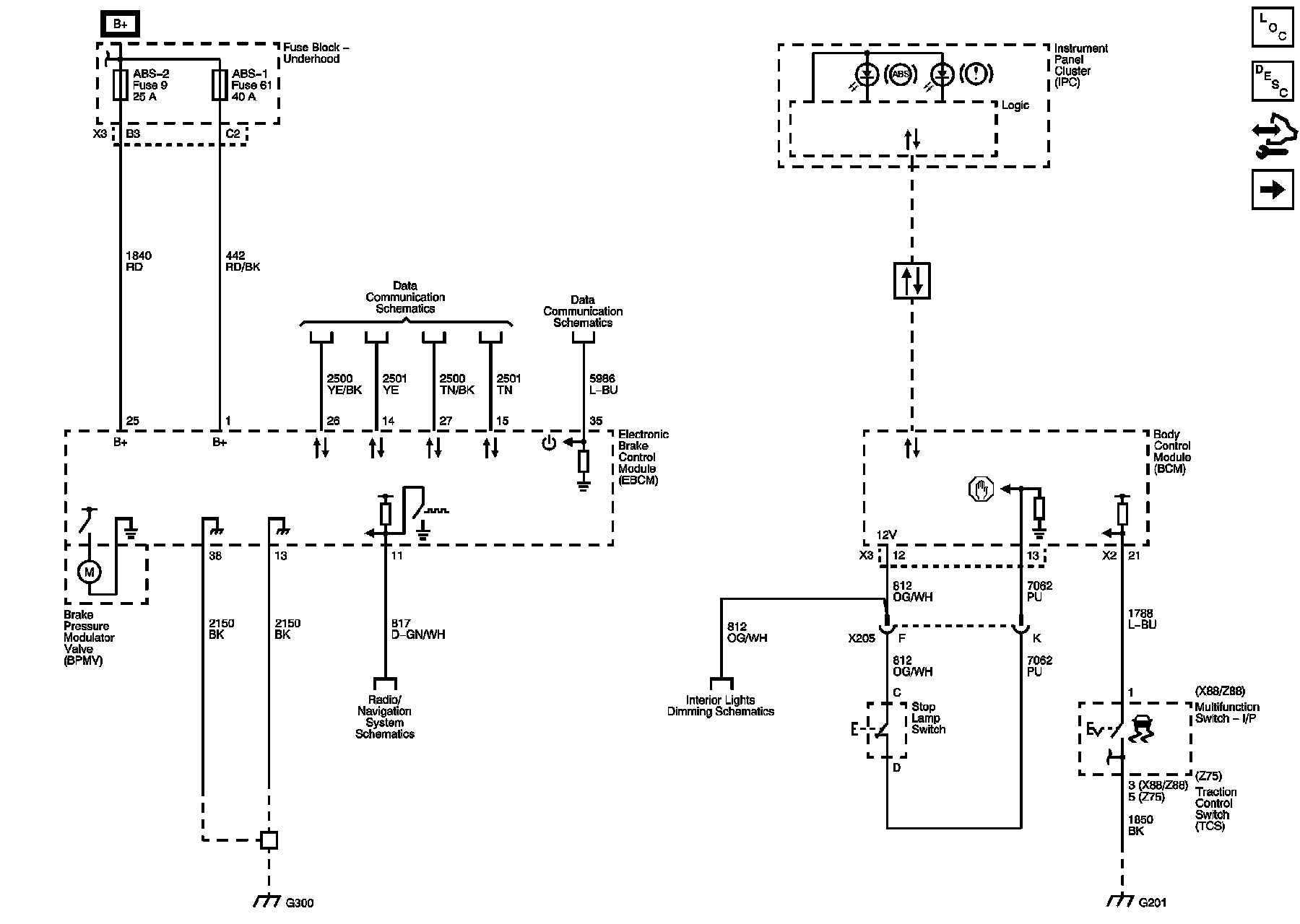

Module Power, Ground, and Serial Data, Pump Motor and Brake Switch

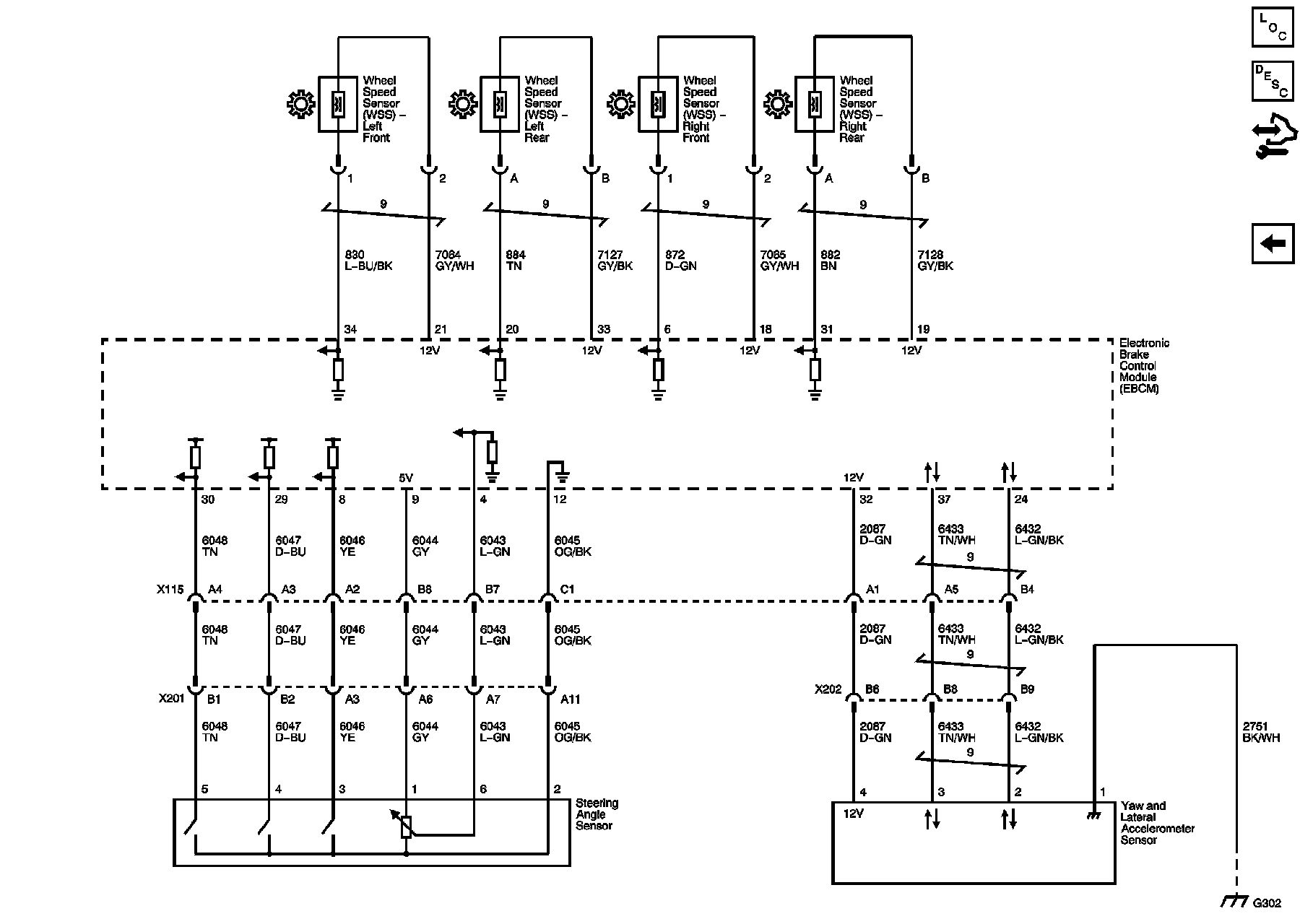

Sensors
