GMC
>>
2011
>>
Yukon 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
>>
Suspension Position Sensor - Right Front (Z55)
Suspension Position Sensor - Right Front (Z55)

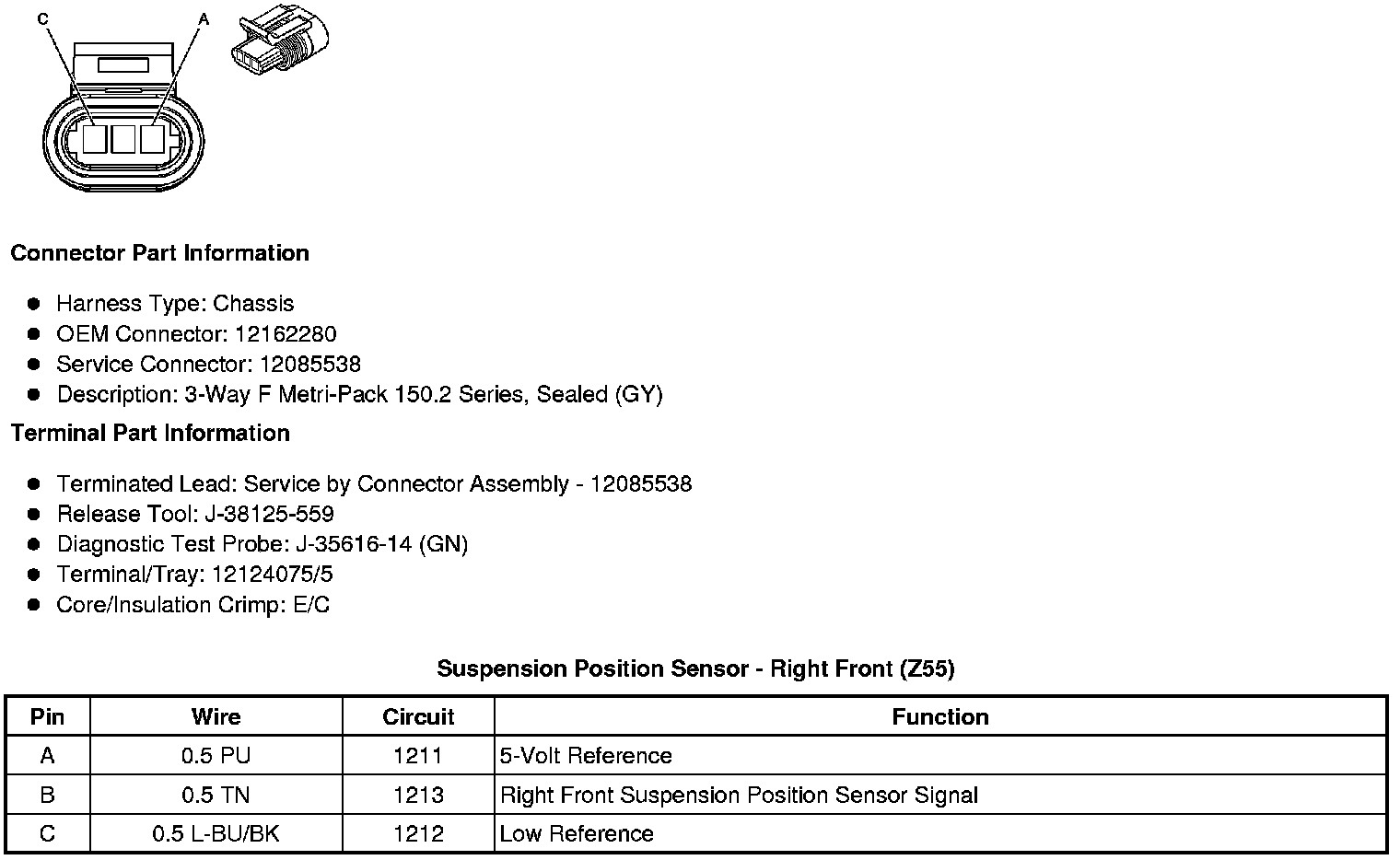

Component Connector End Views
Suspension Position Sensor - Right Front (Z55)
