Connector Views
>>
Multiple Junction Connector
>>
Connector End Views By Name
>>

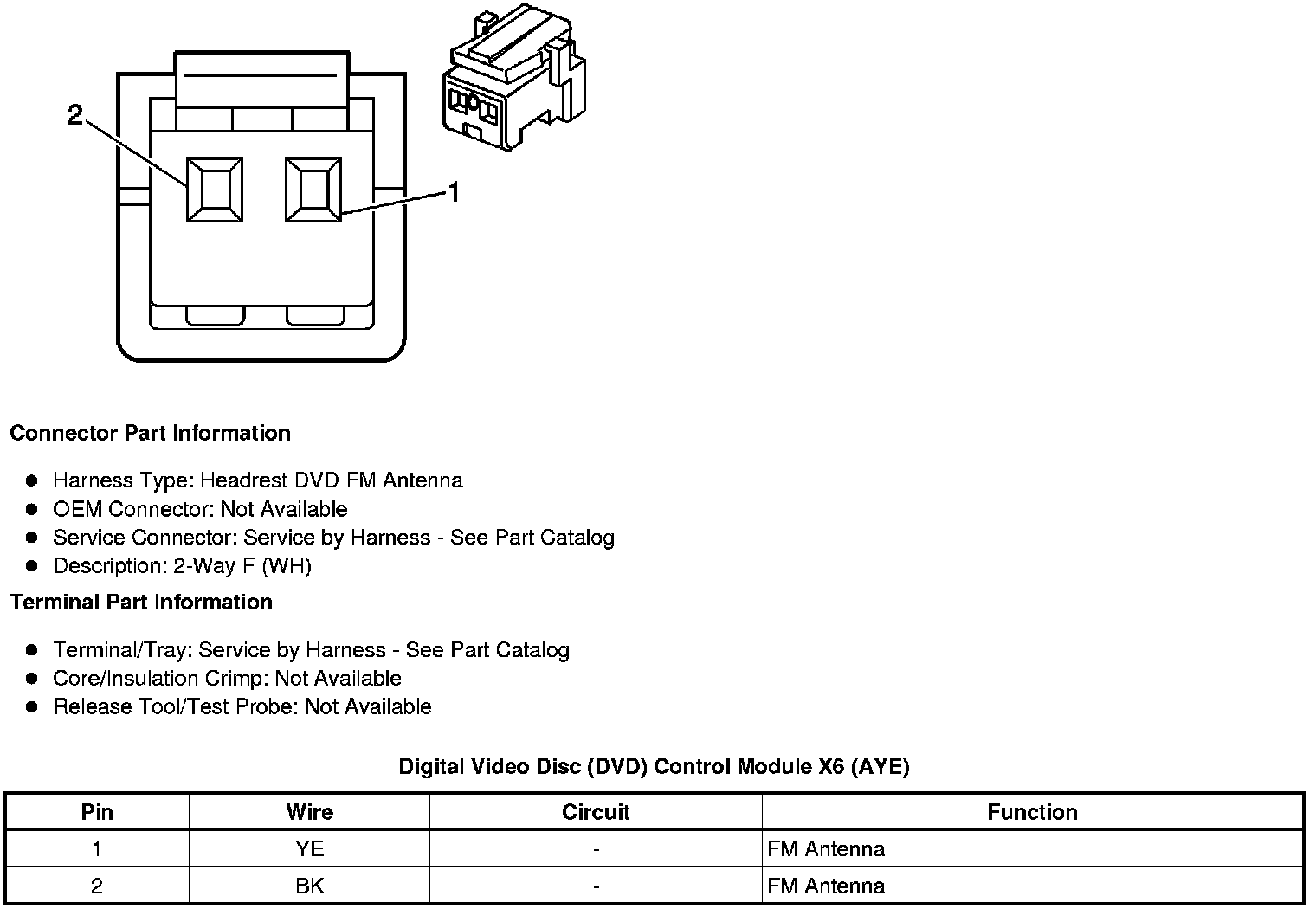

Digital Video Disc (DVD) Control Module X6 (AYE)
Digital Video Disc (DVD) Control Module X6 (AYE)
Component Connector End Views
Digital Video Disc (DVD) Control Module X6 (AYE)
