GMC
>>
2011
>>
Yukon 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>
Inflatable Restraint Side Impact Sensor (SIS) - Right Rear
Inflatable Restraint Side Impact Sensor (SIS) - Right Rear

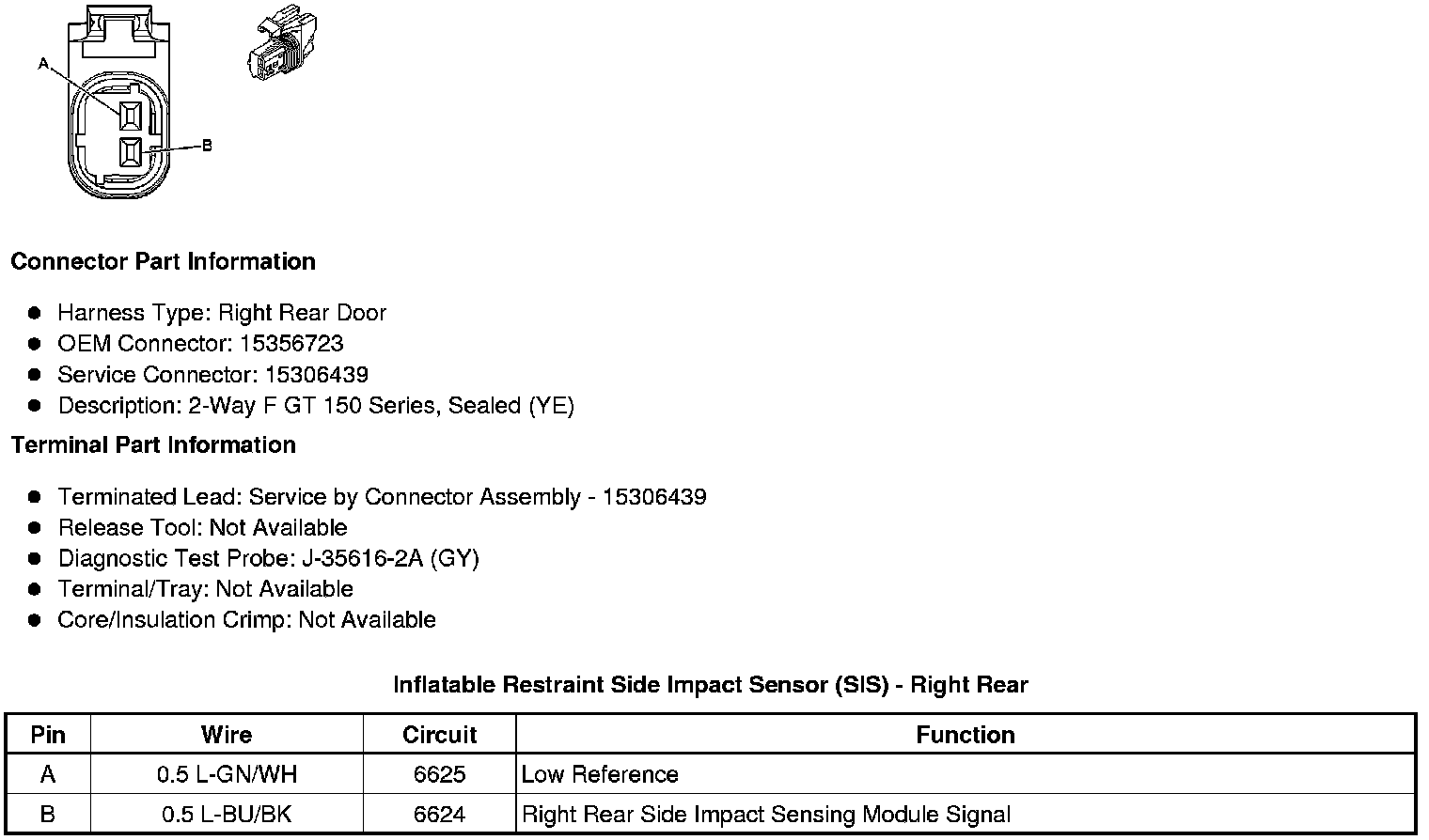

Component Connector End Views
Inflatable Restraint Side Impact Sensor (SIS) - Right Rear
