LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
2011
>>
Yukon 4WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Junction Block - Left I/P
>>
Junction Block - Left I/P X4 (without STZ or Y91)
Junction Block - Left I/P X4 (without STZ or Y91)
Electrical Center Identification Views

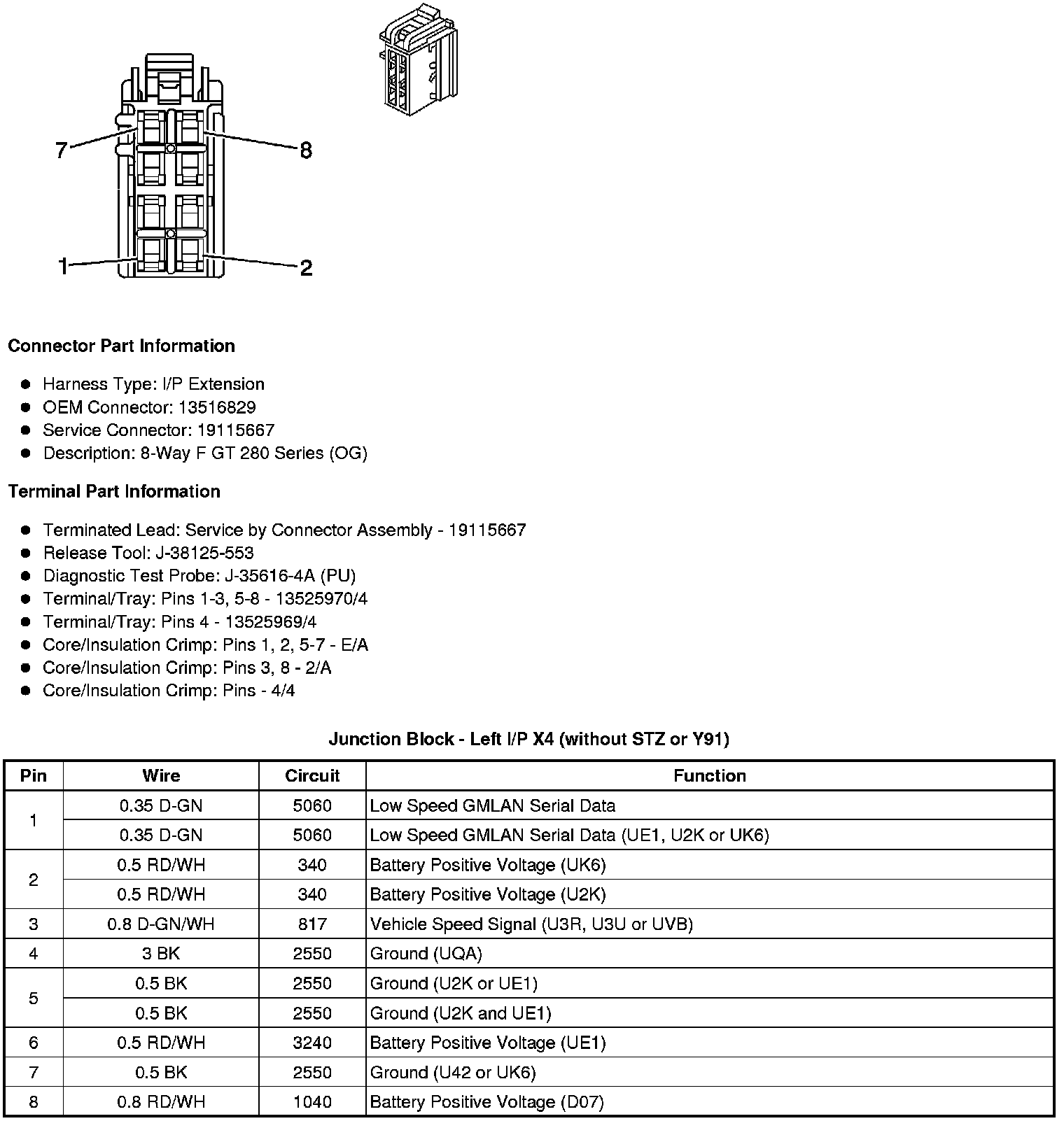

Junction Block - Left I/P X4 (without STZ or Y91)
