Fuel Tank Unit
>>
Fuel Pump and Sender Assembly - Front
Fuel Pump and Sender Assembly - Front

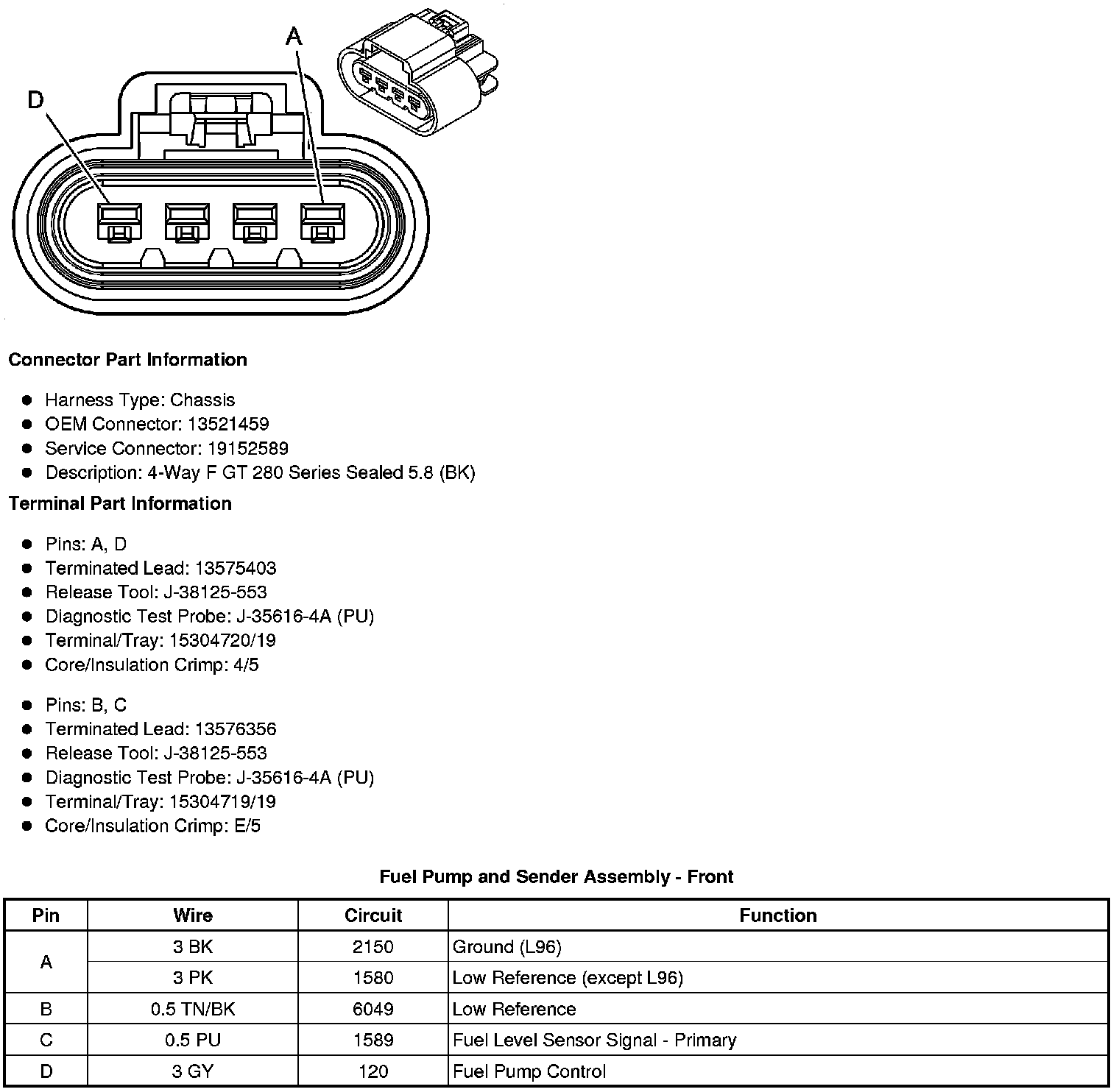

Component Connector End Views
Fuel Pump and Sender Assembly - Front
