Home >> GMC >> 2011 >> Yukon 4WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> Courtesy/Reading Lamps - 2nd Row

Courtesy/Reading Lamps - 2nd Row

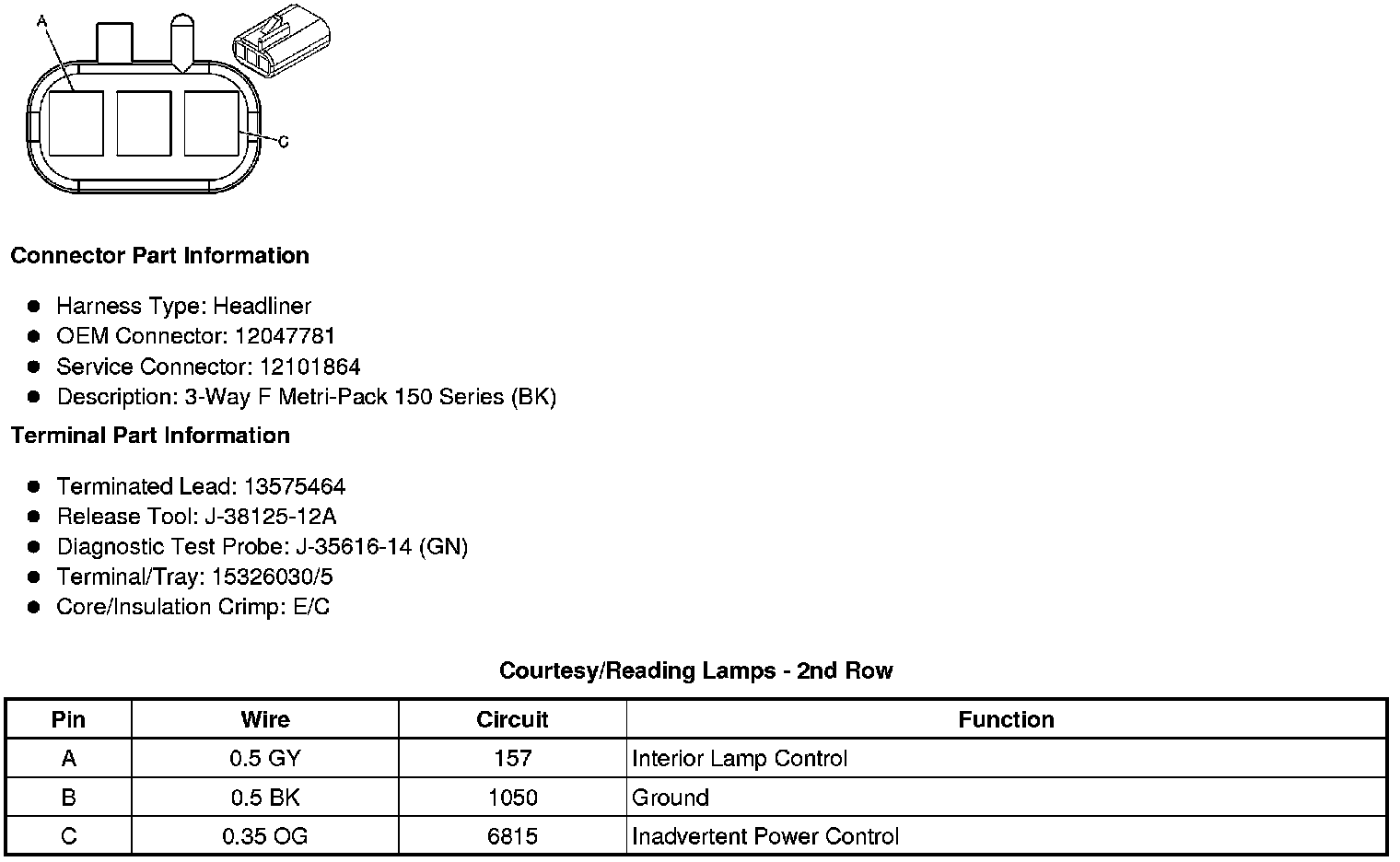

Component Connector End Views

Courtesy/Reading Lamps - 2nd Row
