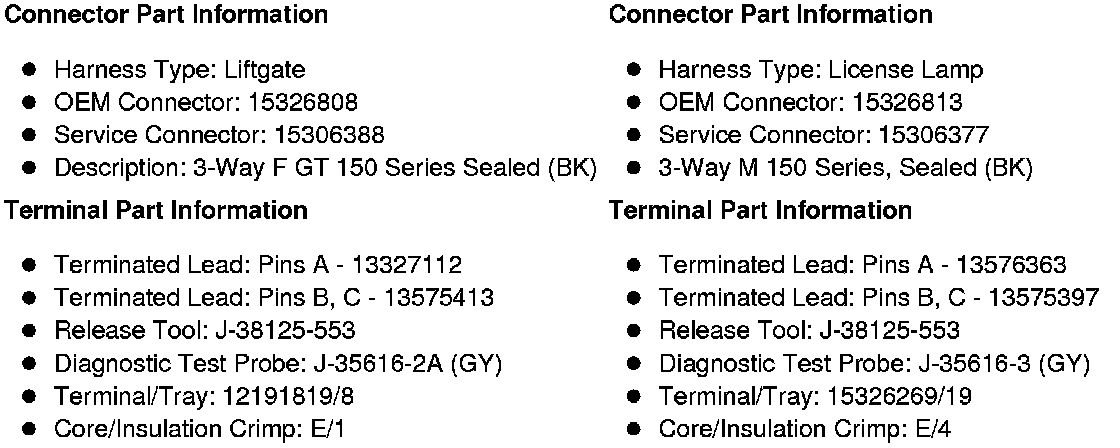

X901 Liftgate Harness to License Lamp Harness (E52 or TB7)
X901 Liftgate Harness to License Lamp Harness (E52 or TB7)

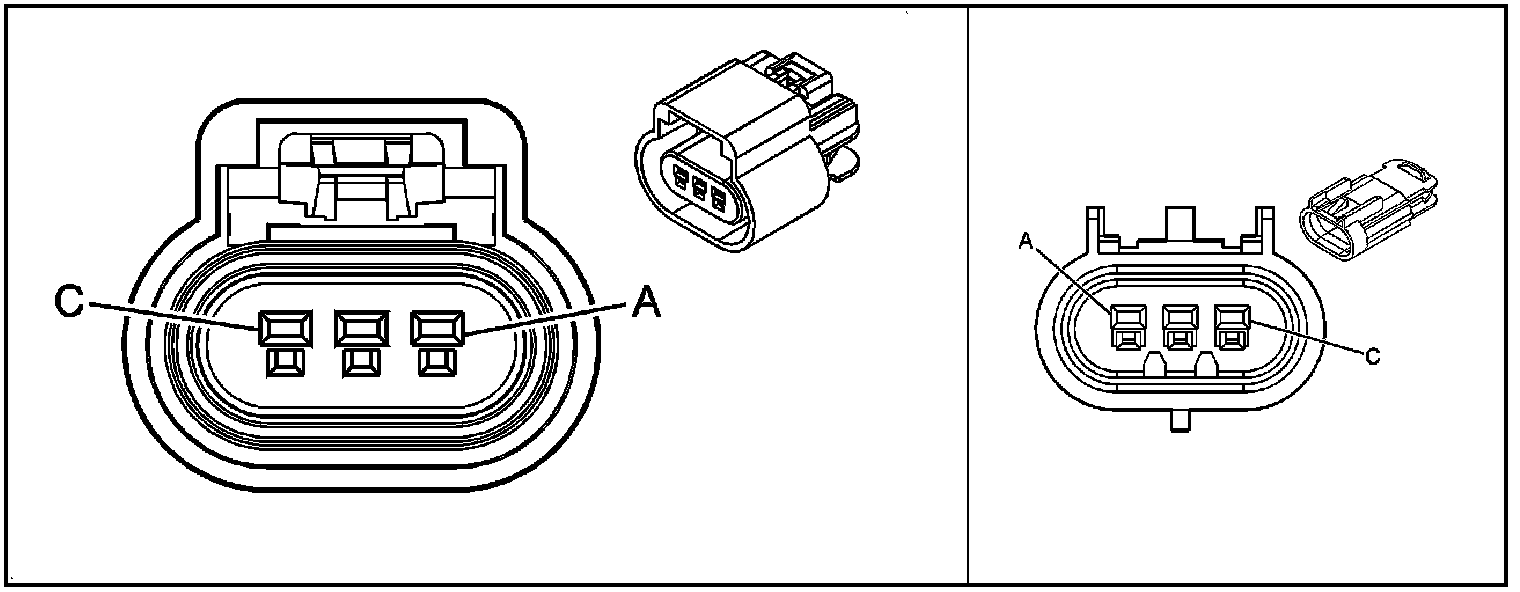

Inline Harness Connector End Views

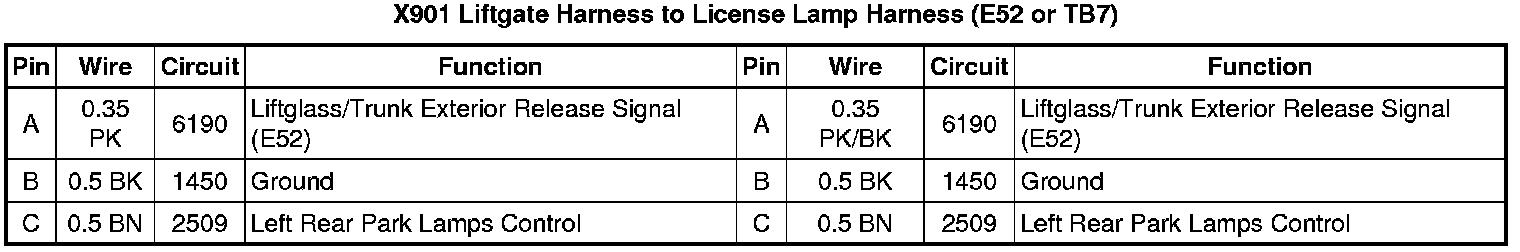

X901 Liftgate Harness to License Lamp Harness (E52 or TB7)
