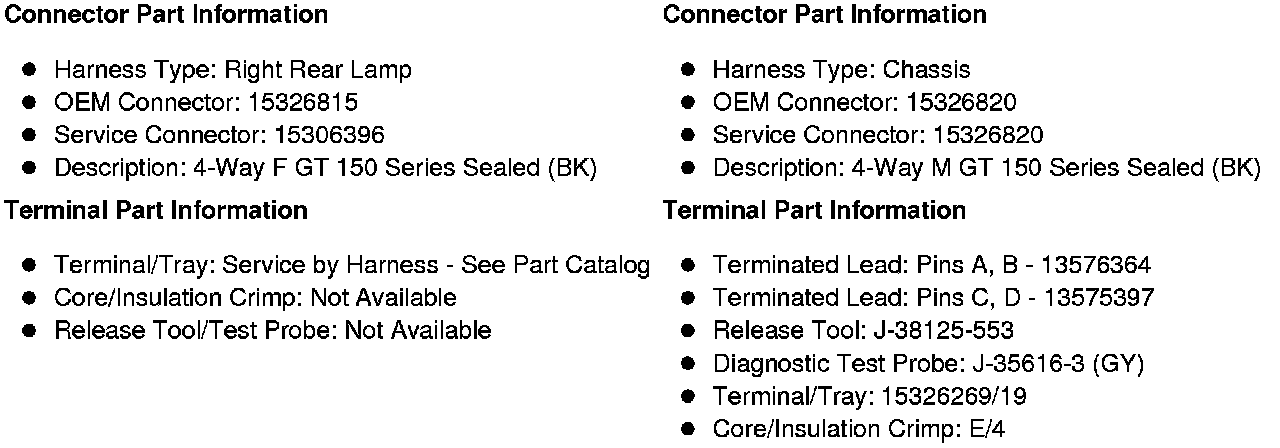

X412 Right Rear Lamp Harness to Chassis Harness (without E52 or TB7)

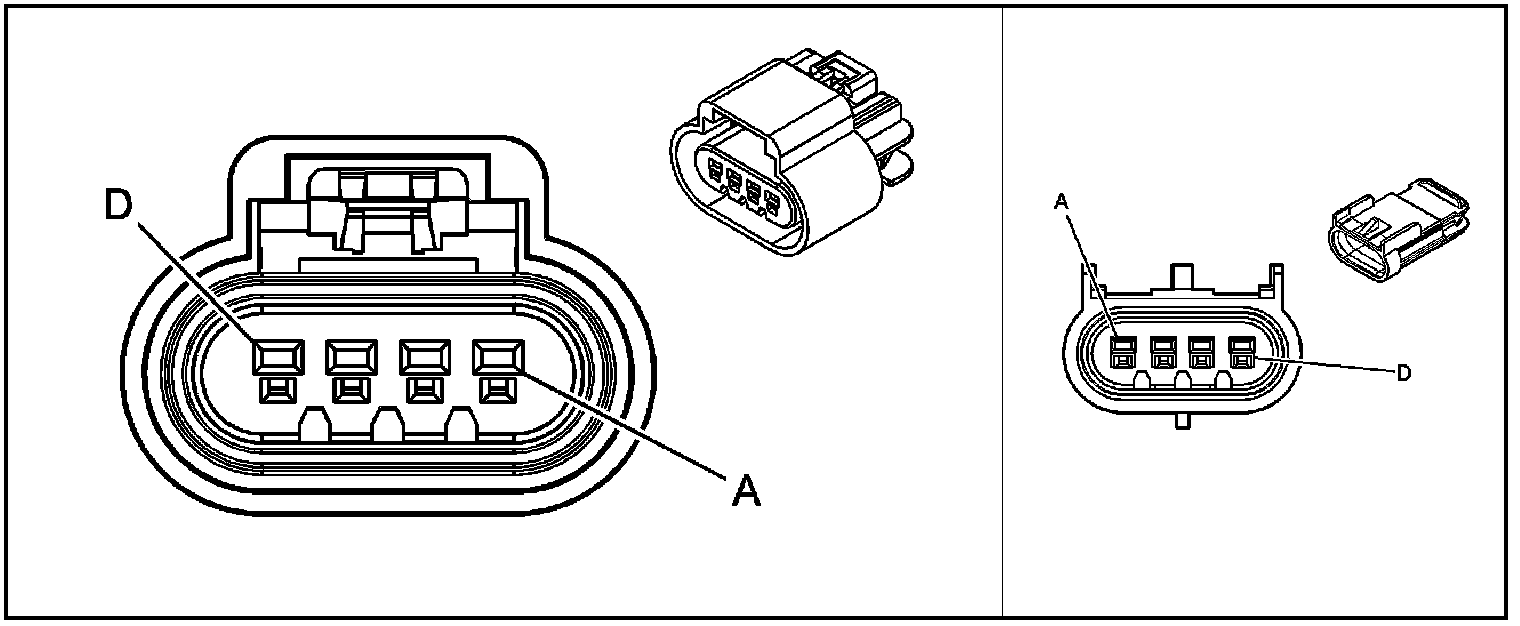

Inline Harness Connector End Views

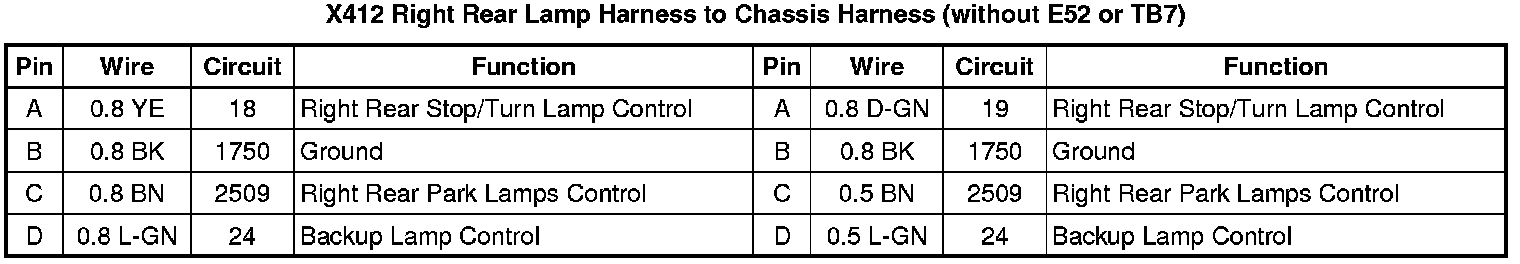

X412 Right Rear Lamp Harness to Chassis Harness (without E52 or TB7)
