X409 Endgate Harness to Chassis Harness (without E52 or TB7, with UVC)

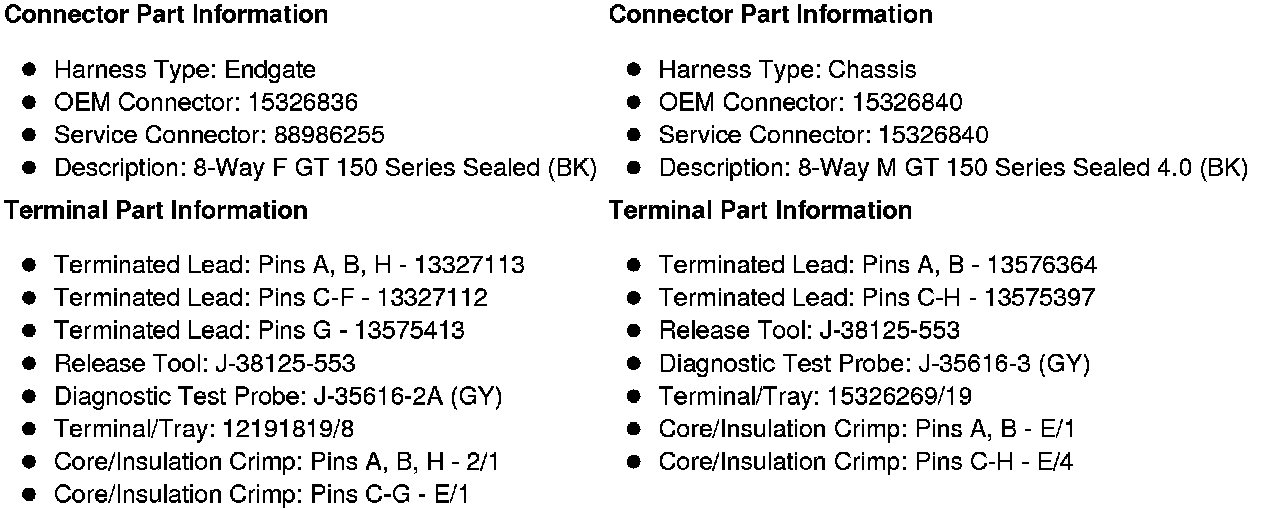

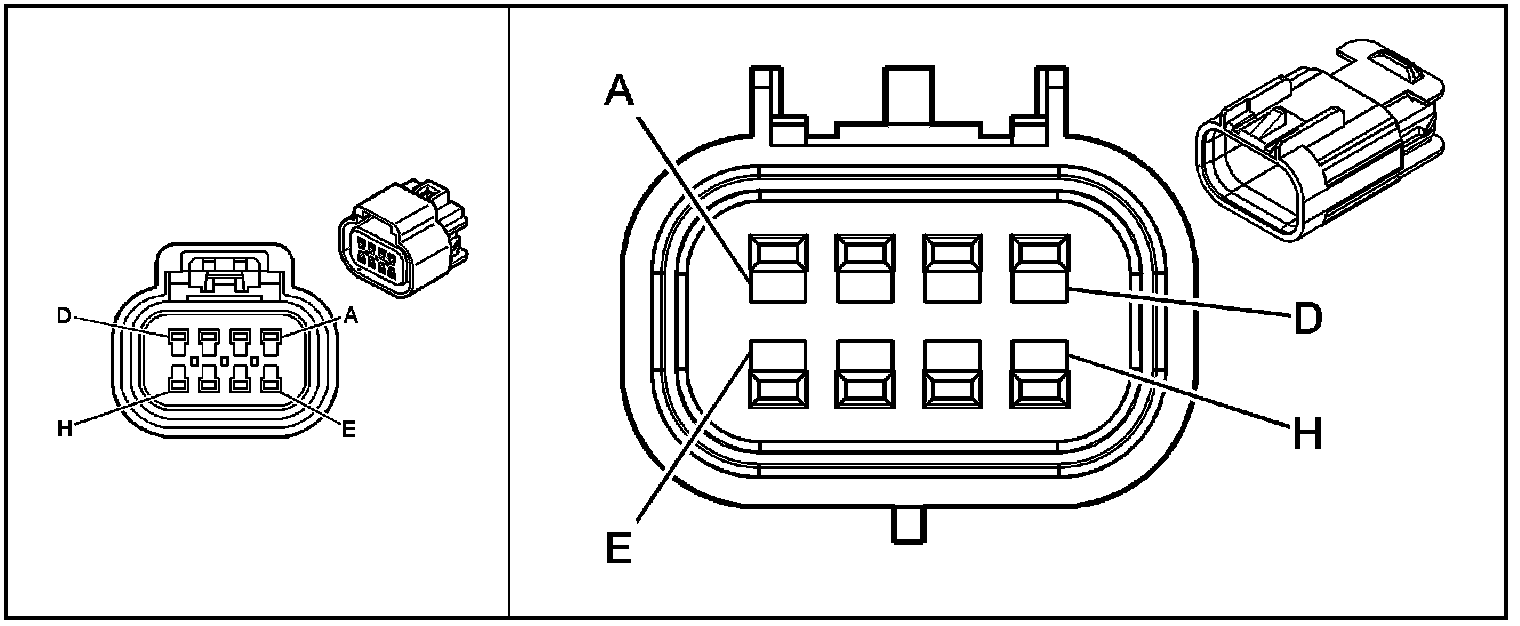

Inline Harness Connector End Views

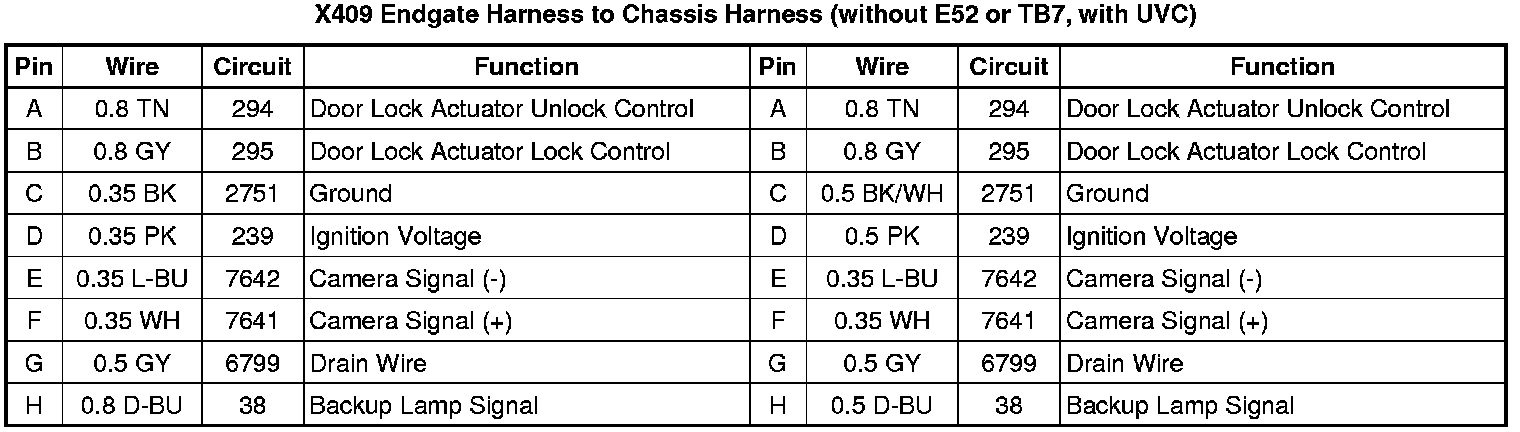

X409 Endgate Harness to Chassis Harness (without E52 or TB7, with UVC)
