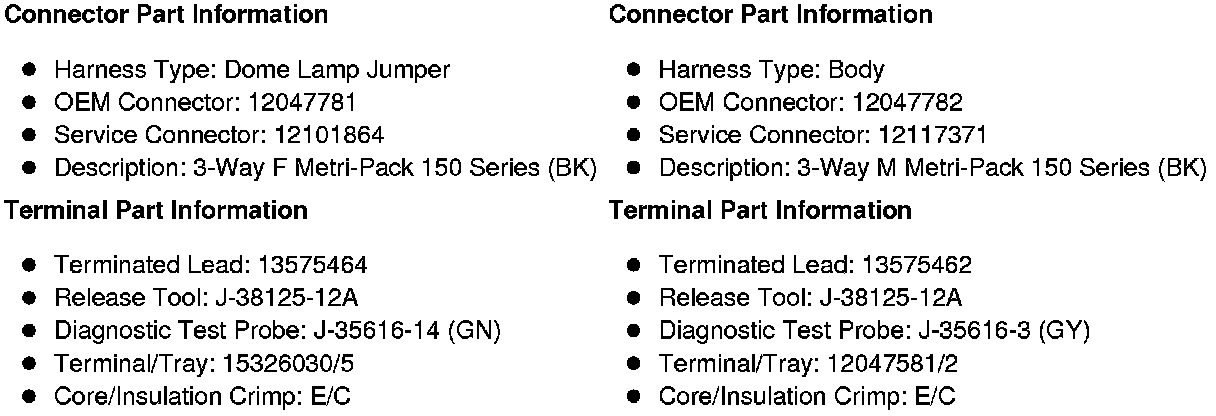

X406 Dome Lamp Jumper Harness to Body Harness (LWB with E52)

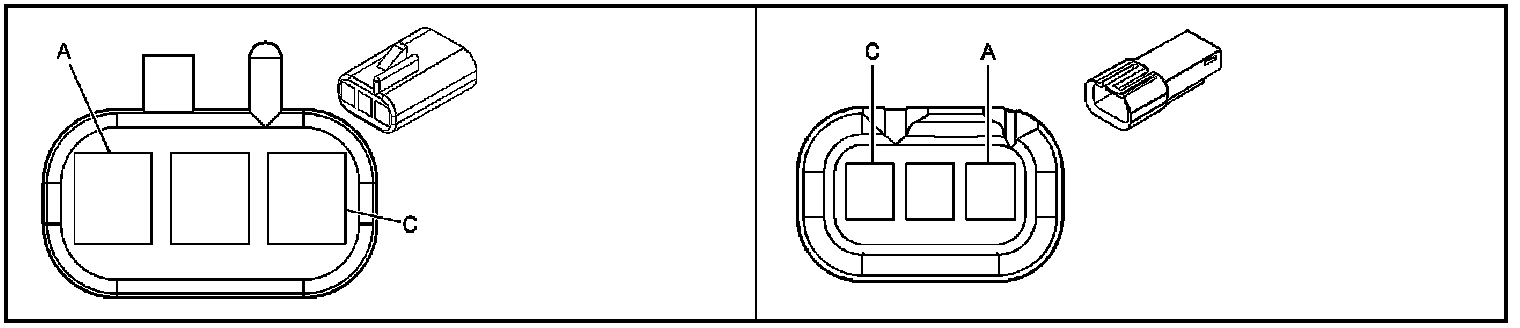

Inline Harness Connector End Views

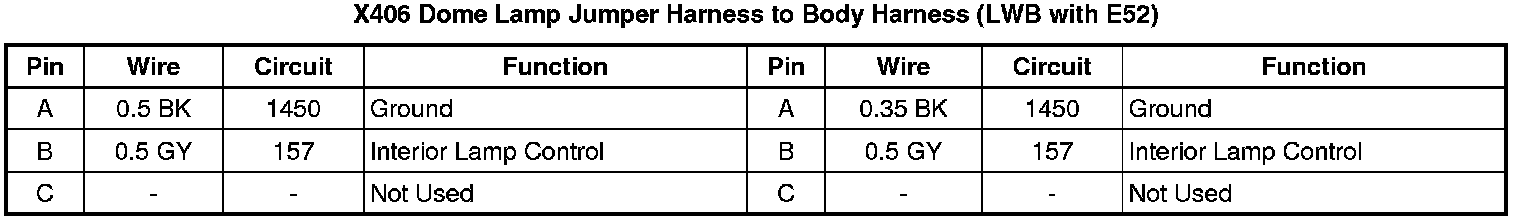

X406 Dome Lamp Jumper Harness to Body Harness (LWB with E52)
