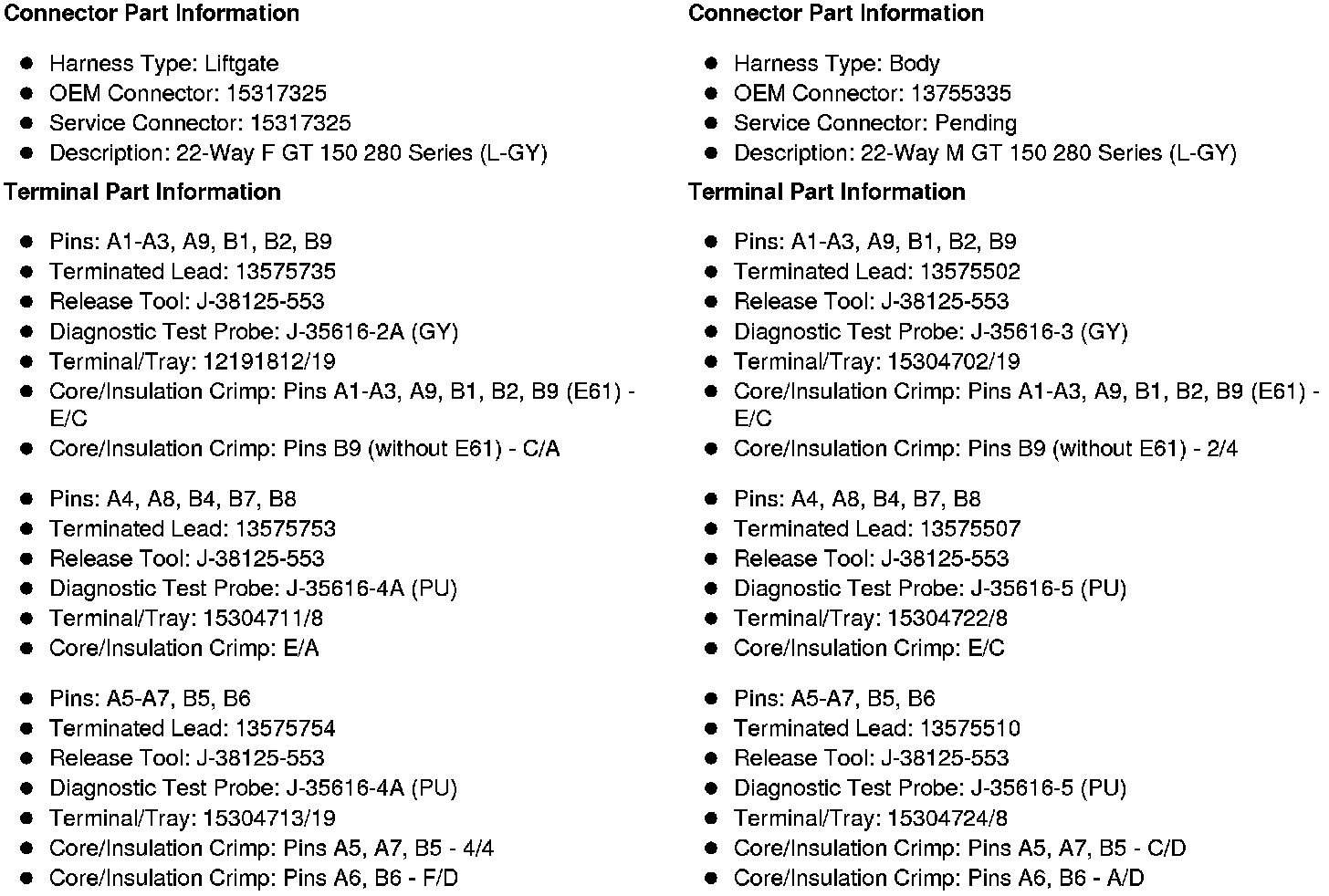

X405 Liftgate Harness to Body Harness (E52 or TB7)
X405 Liftgate Harness to Body Harness (E52 or TB7)

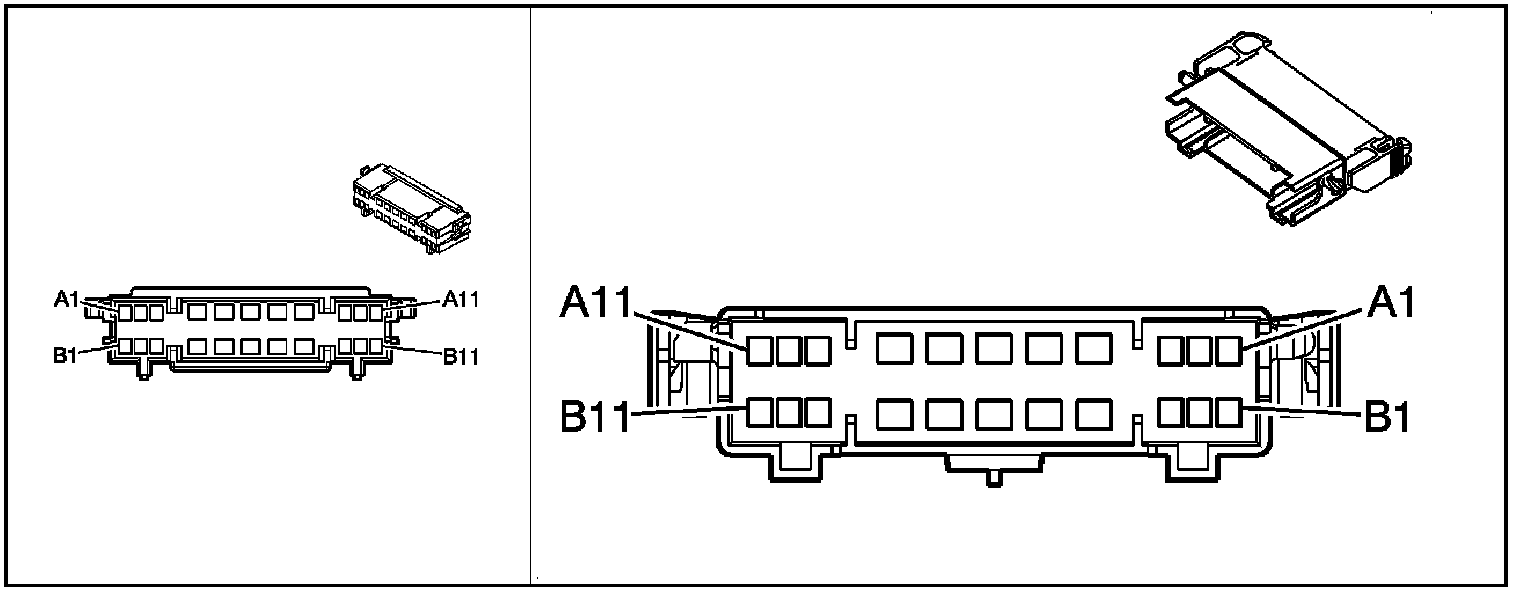

Inline Harness Connector End Views

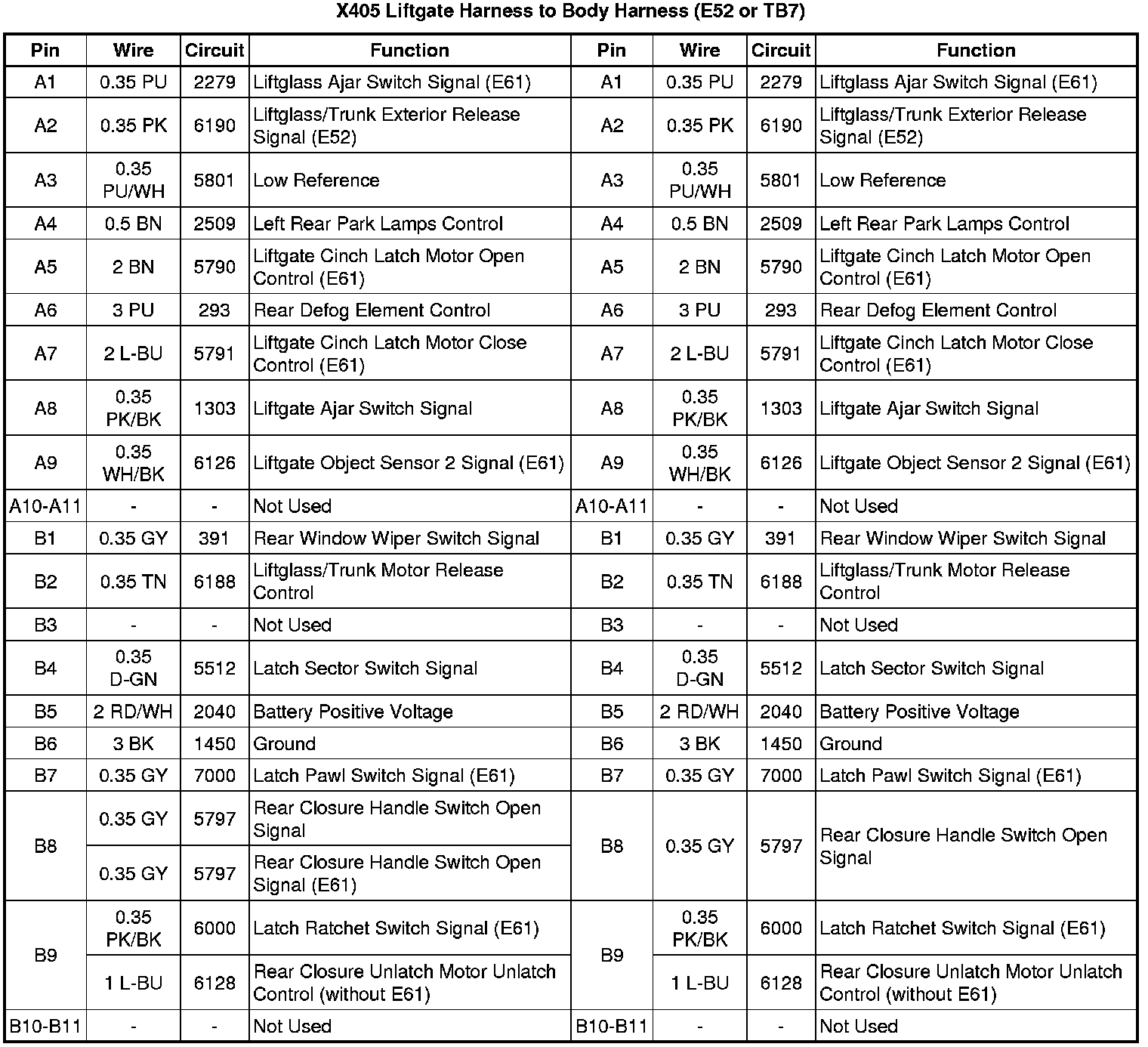

X405 Liftgate Harness to Body Harness (E52 or TB7)
