X403 Headliner Harness to Body Harness (E52)
X403 Headliner Harness to Body Harness (E52)

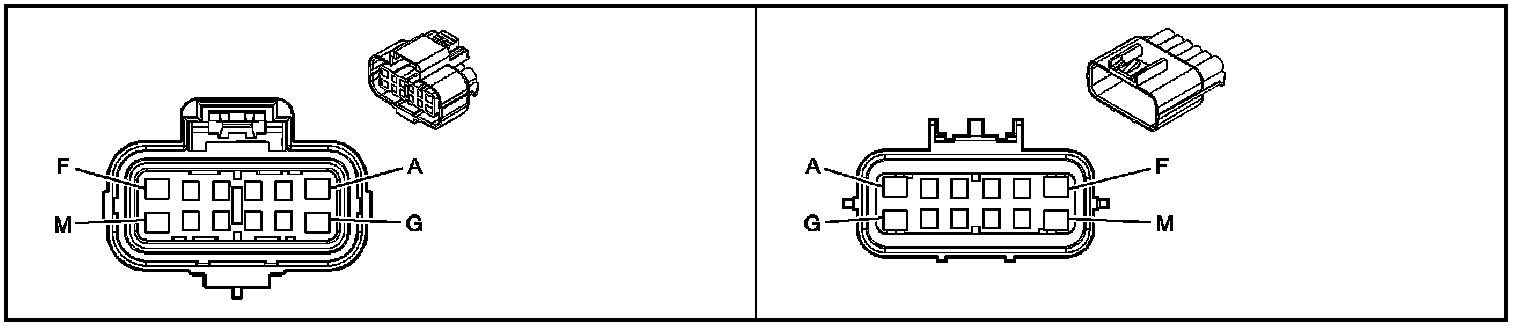

Inline Harness Connector End Views

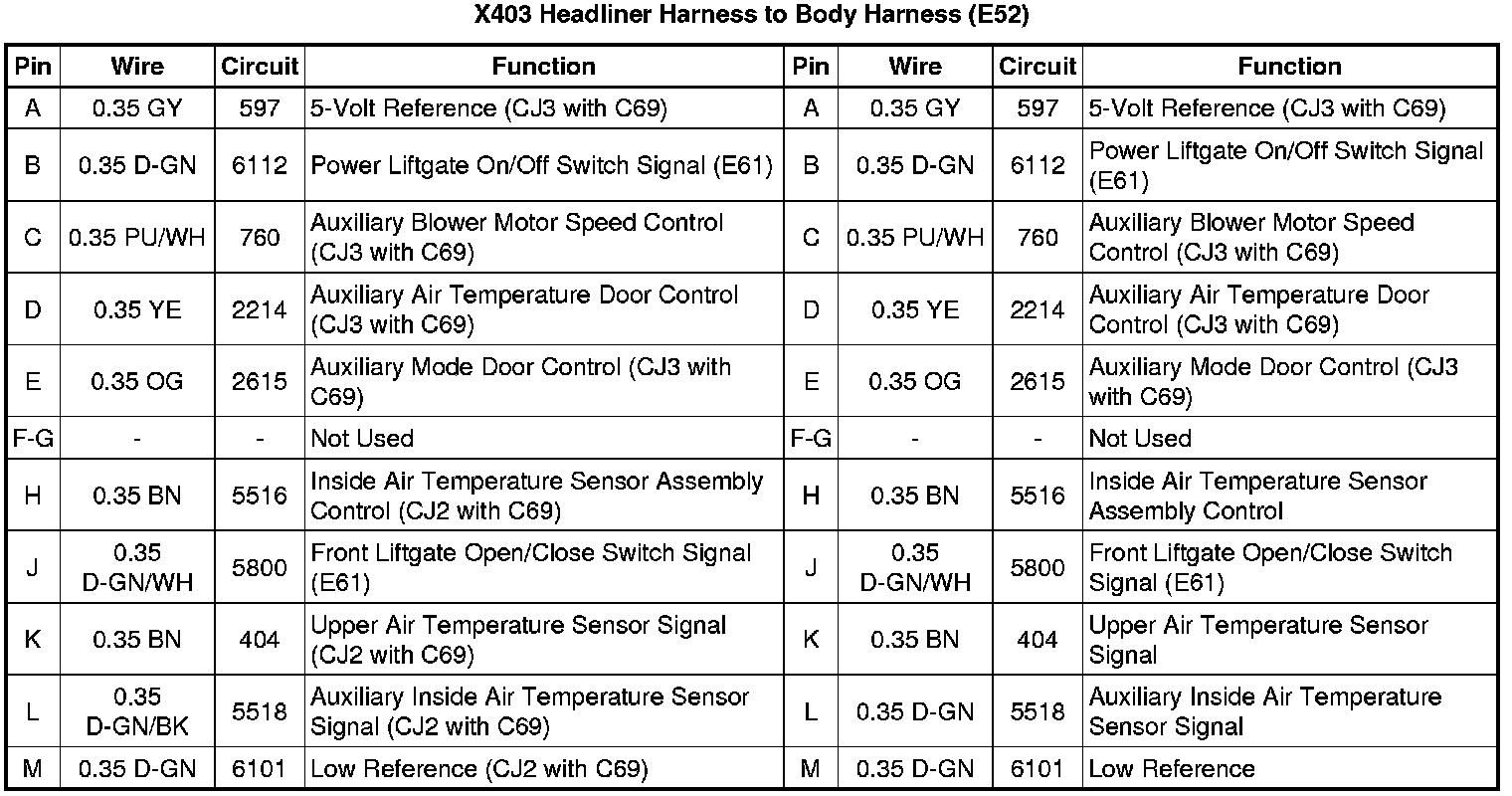

X403 Headliner Harness to Body Harness (E52)
